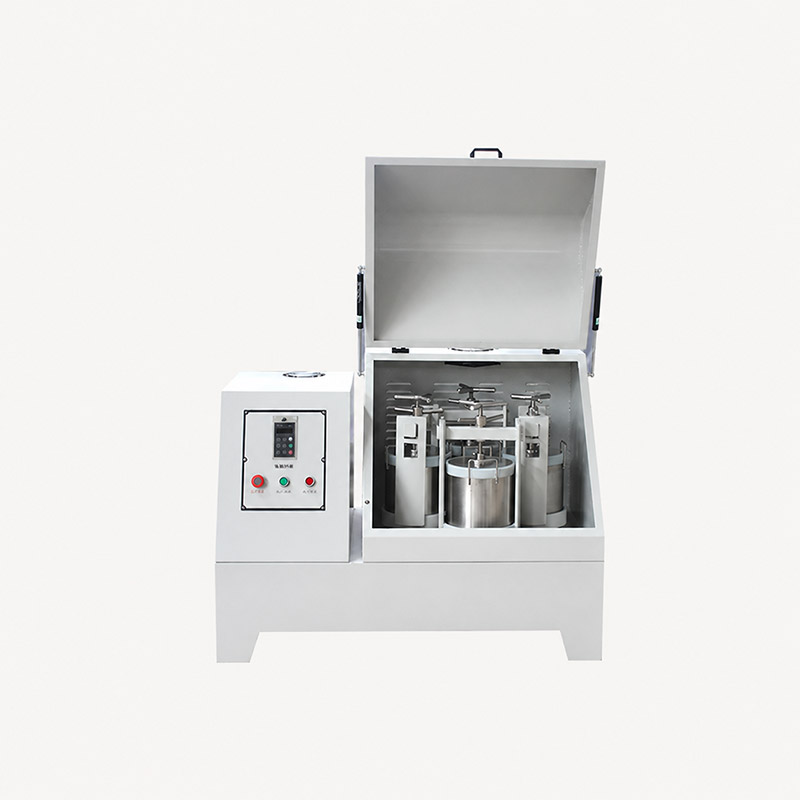

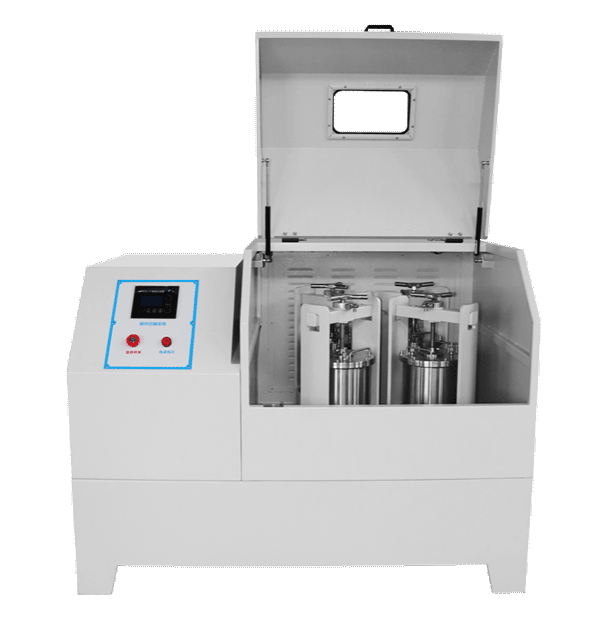

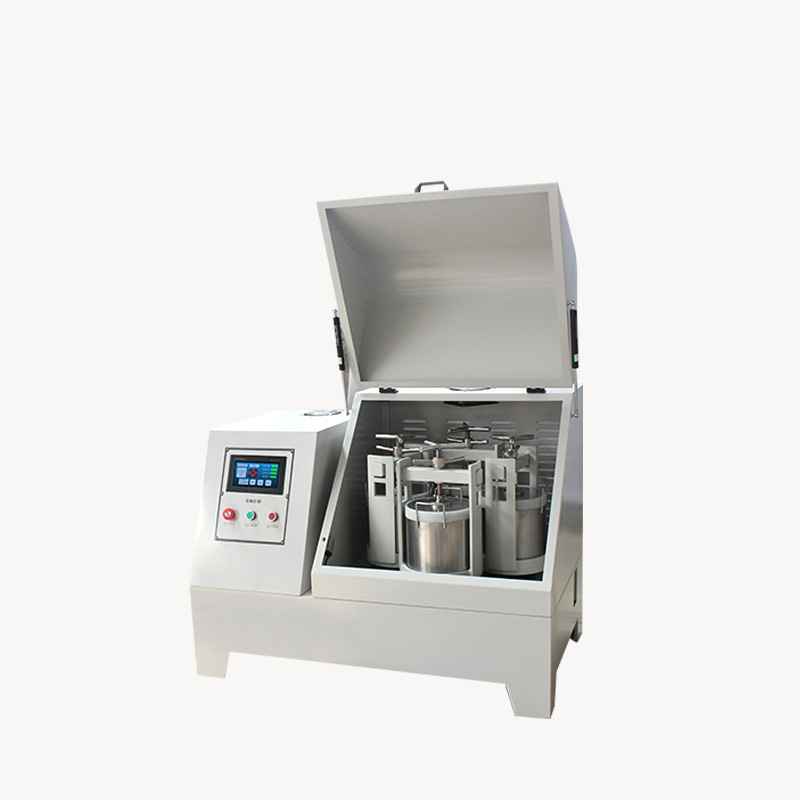

Vertical production planetary ball mill
Why choose us
Simple ordering, reliable quality, professional support.
Easy Process
Clear communication from product selection to delivery, so your team can move faster.
Quality Assurance
Stable manufacturing, strict inspection, and support for configuration requirements.
Expert Support
Application-oriented advice for planetary ball milling, sample preparation, and scale-up needs.
The vertical production-type planetary ball mill is a large-scale planetary ball mill designed and manufactured based on the principle of a small-scale planetary ball mill. The production-type planetary ball mill is mainly suitable for batch grinding production by users.





The company has also launched a microcomputer touch screen PLC all-in-one machine, and customers can choose a control panel according to their own needs.

Vertical production planetary ball mills are widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. They are suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalysts, phosphors, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, oxidation Production field of zinc varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products.

Technical parameters
Basic configuration parameter table
| model | Specification | Specification classification | Can be equipped with ball mill tank specifications | quantity | Available vacuum tank specifications | Equipment weight (kg) | Equipment volume (mm) |
| XQM-20 | 20L | Production model | 2-5L | 4 | Can be equipped with 2-4L vacuum ball mill tank | 392kg | 1200×790×930 |
| XQM-40 | 40L | Production model | 5-10L | 4 | Can be equipped with 5L vacuum ball mill tank | 656kg | 1400×880×1070 |
| XQM-60 | 60L | Production model | 10-15L | 4 | Can be equipped with 10L vacuum ball mill tank | 950kg | 1600×1070×1250 |
| XQM-80 | 80L | Production model | 15-20L | 4 | Can be equipped with 15L vacuum ball mill tank | 1300kg | 1750×1140×1330 |
| XQM-100 | 100L | Production model | 20-25L | 4 | Can be equipped with 20L vacuum ball mill tank | 1300kg | 1800×1150×1140 |
| XQM-200 | 200L | Production model | 50L | 4 | Can be equipped with 25L vacuum ball mill tank | 2725kg | 2670×1600×2804 |
Performance parameter table
| model | Device power supply | Power connector | Motor power (kW) | Speed regulation method | Run settings Total time(min) | Alternate positive and negative Running time(min) | Planetary disk speed (rpm) | Grinding tank speed (rpm) | Speed ratio | noise (dB) |
| XQM-20 | 380V 50Hz | Three phases | 4kW | touch screen | 1-9999 | 1-999 | 0-215 | 0-430 | 1:2 | 65±5 |
| XQM-40 | 380V 50Hz | Three phases | 5.5kW | touch screen | 1-9999 | 1-999 | 0-195 | 0-390 | 1:2 | 68±5 |
| XQM-60 | 380V 50Hz | Three phases | 7.5kW | touch screen | 1-9999 | 1-999 | 0-174 | 0-260 | 1:1.5 | 68±5 |
| XQM-80 | 380V 50Hz | Three phases | 11kW | touch screen | 1-9999 | 1-999 | 0-151 | 0-242 | 1:1.5 | 68±5 |
| XQM-100 | 380V 50Hz | Three phases | 11kW | touch screen | 1-9999 | 1-999 | 0-151 | 0-242 | 1:1.5 | 68±5 |
| XQM-200 | 380V 50Hz | Three phases | 22kW | touch screen | 1-9999 | 1-999 | 0-143 | 0-215 | 1:1.5 | 68±5 |

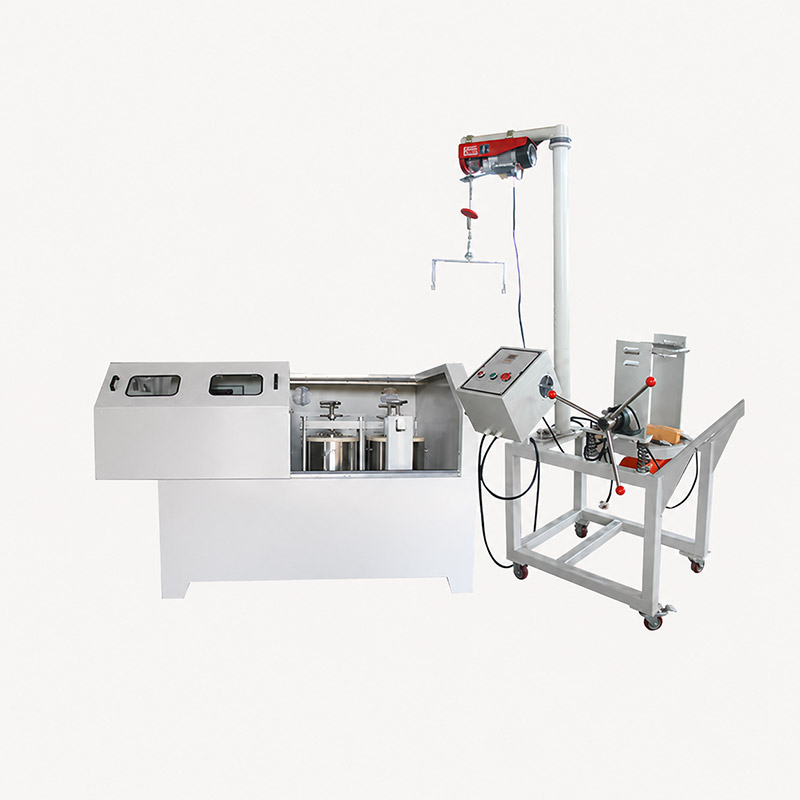

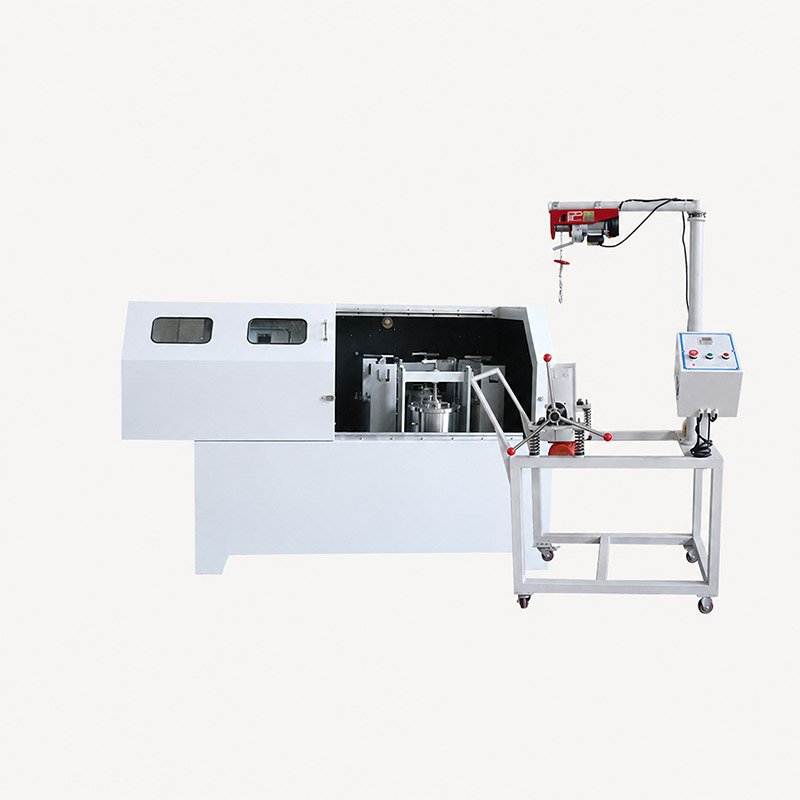

The equipment shell adopts the welding and forming process of thickened steel plate, which has high strength, impact resistance and deformation resistance, fine workmanship, strong and beautiful appearance.; The materials of the machined parts undergo strict heat treatment procedures and adopt CNC machining technology. The gear box adopts a quasi-sealed groove embedded structure, and the transmission gear adopts wear-resistant precision gears. The design of the frame and structural parts fully considers resonance factors to ensure stable, safe and reliable operation of the equipment under long-term high load conditions, and effectively achieves the noise reduction effect of machine operation. ; The liquid oil self-lubricating device is designed with low noise and high strength, and is equipped with a liquid oil level gauge for easy replacement. The supporting hoisting and dumping devices adopt an integrated design. The dumping device is integrated into the vibrating screening and discharging technology. It is simple to operate, enabling easy and fast canning, unloading, and filling, reducing labor intensity and improving production efficiency. It adopts a microcomputer touch screen, which is easy to operate and has a simple and intuitive interface. It can realize alternating control of forward and reverse rotation, and has timing and power-off memory functions.
