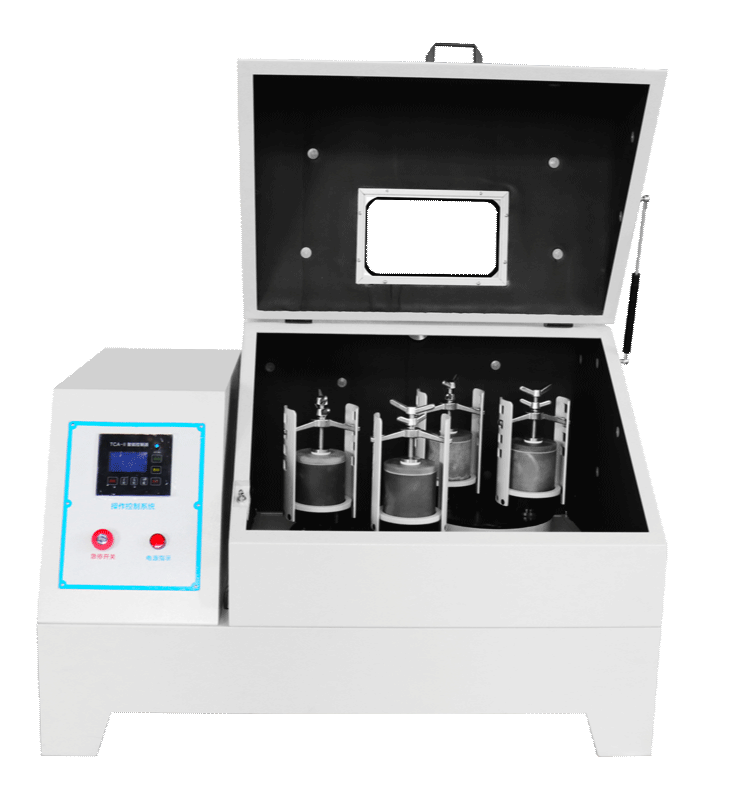

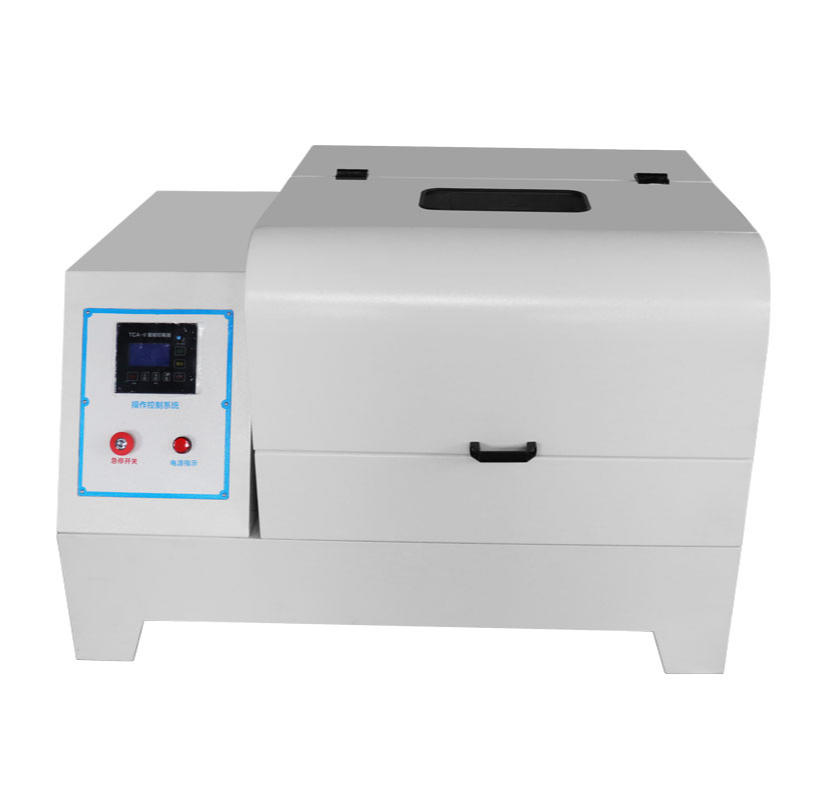

Dual Planetary Ball Mill
Why choose us
Simple ordering, reliable quality, professional support.
Easy Process
Clear communication from product selection to delivery, so your team can move faster.
Quality Assurance
Stable manufacturing, strict inspection, and support for configuration requirements.
Expert Support
Application-oriented advice for planetary ball milling, sample preparation, and scale-up needs.

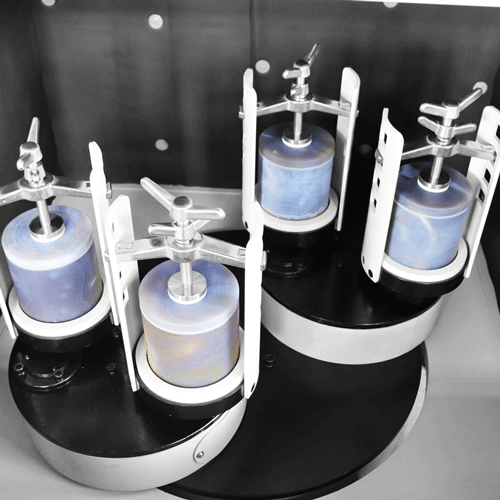

The double planetary structure enables the large planetary disk to drive the movement of the asteroid disk. Compared with ordinary planetary ball mills of the same specifications, the revolution radius and grinding tank rotation speed are enlarged. The centrifugal force on the grinding balls is doubled, and the collision, shearing and friction between the grinding balls are significantly increased. The grinding effect and grinding efficiency are improved, and some materials can be ground to the nanometer level. Double planetary ball mill is a typical high-efficiency and high-energy ball mill.

Double planetary ball mill is a powder device for laboratory, mixing, fine grinding and small batch production of high-tech materials. This machine is beautiful and novel, has a compact structure, is easy to operate, has high working efficiency, and has uniform grinding size. It is the preferred equipment for scientific research, teaching, testing, and production. Widely used in electronics, magnetism, medicine, ceramics, geology, minerals, metallurgy, building materials, chemical industry, light industry, beauty, environmental protection and other industries.
Technical parameters
| model | Specification | Can be equipped with ball mill tank specifications | quantity | Remark |
|---|---|---|---|---|
| SXQM-0.4 | 0.4L | 50-100ml | 4 | Can be equipped with 50ml vacuum ball mill tank |
| SXQM-1 | 1L | 250ml | 4 | Can be equipped with 50-100ml vacuum ball mill tank |
| SXQM-2 | 2L | 500ml | 4 | Can be equipped with 50-250ml vacuum ball mill tank |
| SXQM-4 | 4L | 1000ml | 4 | Can be equipped with 50-1000ml vacuum ball mill tank |
| SXQM-6 | 6L | 1500ml | 4 | Can be equipped with 50-1000ml vacuum ball mill tank |
| model | Device power supply | Motor power (kW) | Total running time (min) | Alternating forward and reverse running time (min) | Revolution (rpm) | Rotation(rpm) | Noise(dB) |
|---|---|---|---|---|---|---|---|
| SXQM-0.4 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 | 140-1120 | 58±5 |
| SXQM-1 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 | 140-1120 | 60±5 |
| SXQM-2 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 | 140-1120 | 60±5 |
| SXQM-4 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 | 140-1120 | 60±5 |
| SXQM-6 | 220V-50Hz | 0.75 | 1-9999 | 1-999 | 70-560 | 140-1120 | 60±5 |
| model | Motor power (kW) | Speed regulation method | Equipment weight (kg) | Equipment volume (mm) |
|---|---|---|---|---|
| SXQM-0.4 | 0.75 | Frequency conversion speed regulation | 250 | 1150×800×760 |
| SXQM-1 | 0.75 | Frequency conversion speed regulation | 250 | 1150×800×760 |
| SXQM-2 | 0.75 | Frequency conversion speed regulation | 250 | 1150×800×760 |
| SXQM-4 | 0.75 | Frequency conversion speed regulation | 250 | 1150×800×760 |
| SXQM-6 | 0.75 | Frequency conversion speed regulation | 250 | 1150×800×760 |
The equipment shell has a professional appearance design and industrial shape, using thickened steel plate welding and forming processing technology. It has high strength, impact resistance, deformation resistance, and a stable atmosphere.; The materials of the machined parts undergo strict heat treatment procedures and adopt CNC machining technology. The transmission gears are made of special materials and precision gears to ensure smooth, safe and low-noise operation of the equipment at high speeds.
