Product Introduction

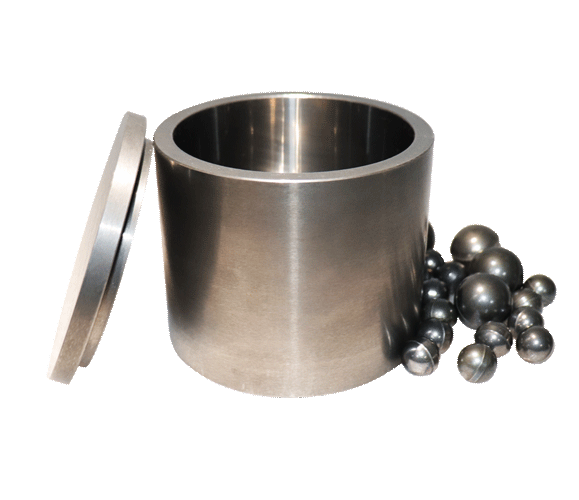

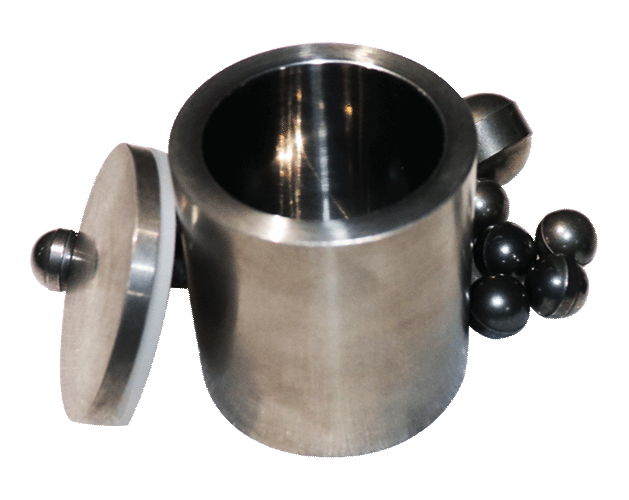

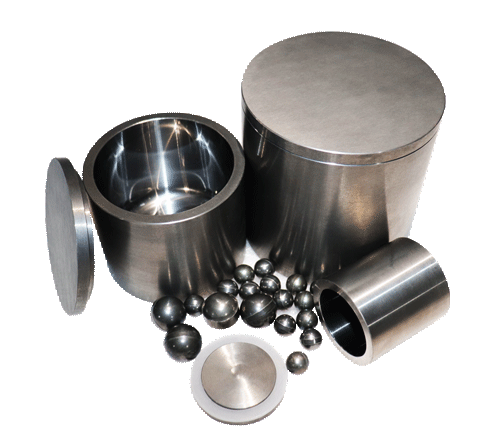

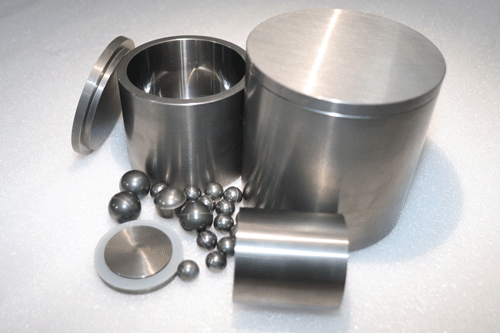

The cemented carbide ball mill tank is a ball mill tank made of hard compounds of refractory metals and bonded metals through a powder metallurgy process. It has a series of advantages such as high hardness, wear resistance, high strength, good toughness, heat resistance and corrosion resistance. Among them, the high hardness and high wear resistance are particularly outstanding, and they remain basically unchanged even at a temperature of 500°C.
Carbide ball mill jars are used in planetary ball mills, equipped with carbide grinding balls, for grinding high-hardness powders such as carbide powder, diamond, and emery.
Technical parameters
| Model specifications | Outer diameter (mm) | Inner diameter (mm) | Height(mm) | |||
|---|---|---|---|---|---|---|
| thick wall | thin wall | thick wall | thin wall | thick wall | thin wall | |
| 50ML | 48 | / | 38 | / | 54 | / |
| 100ML | 62 | / | 48 | / | 72 | / |
| 250ML | 87 | / | 71 | / | 83 | / |
| 500ML | 106 | 88 | 90 | 81 | 108 | 110 |
| 1L | 131 | 107 | 115 | 100 | 118 | 140 |
| 1.5L | 131 | 132 | 115 | 125 | 158 | 140 |
| 2L | 157 | 132 | 141 | 125 | 148 | 181 |
| 2.5L | 157 | 158 | 141 | 151 | 183 | 156 |
| 3L | 157 | 158 | 141 | 151 | ||
| 4L | 178 | 179 | 162 | 170 | 213 | 186 |
| 5L | 192 | / | 182 | / | 209 | / |
| 10L | 243 | / | 232 | / | 259 | / |
| 15L | 271 | / | 261 | / | 295 | / |
| 20L | 320 | / | 310 | / | 284 | / |
| 25L | 320 | / | 310 | / | 347 | / |
Product Features
1. High temperature resistance, with working temperature up to 1000℃.
2. High wear resistance, it still has high wear resistance at a temperature of 500°C.
3. High hardness, ultra-high hardness is the main feature of carbide tanks.
4. Strong toughness, not only has high hardness, but also has good toughness.
