Polytetrafluoroethylene (Teflon or PTFE), commonly known as the "King of Plastics", is a polymer compound polymerized from tetrafluoroethylene. It has excellent chemical stability, corrosion resistance, sealing, high lubrication and non-stickiness, electrical insulation and good anti-aging endurance. Our company's polytetrafluoroethylene grinding jar is professionally designed, selected from polytetrafluoroethylene materials, and processed as a whole.

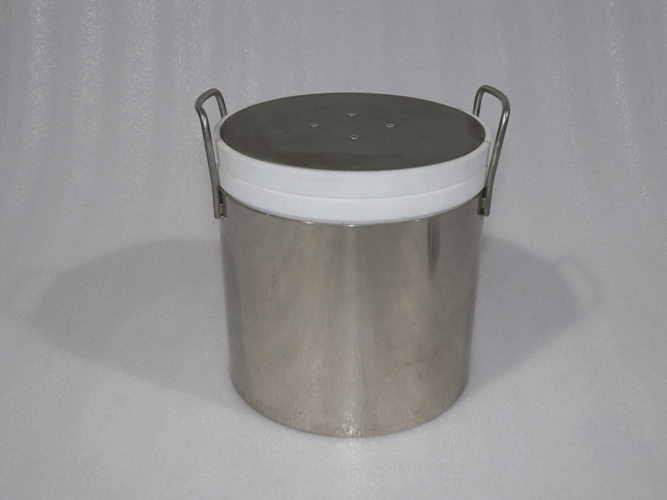

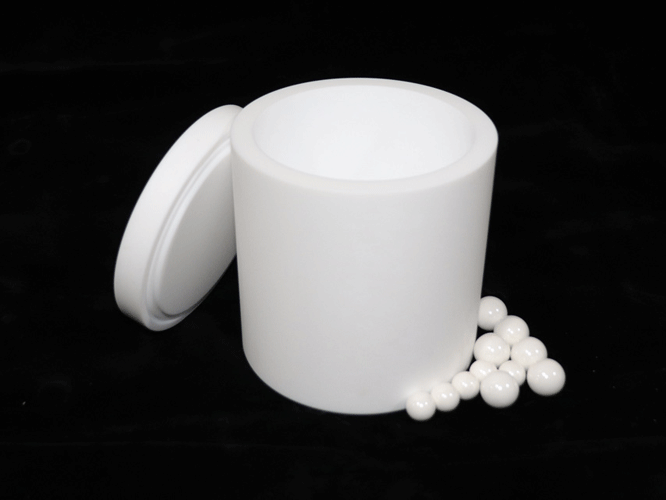

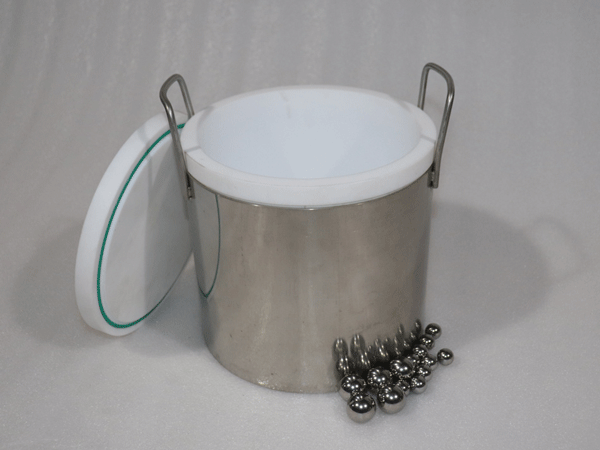

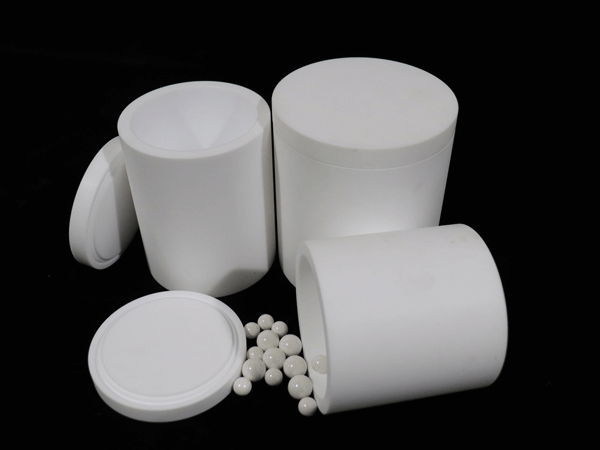

PTFE ball mill tank

Technical parameters

Model specifications Outer diameter (mm) Inner diameter (mm) Height(mm)
25ML 63 31 65
50ML 63 43 59
100ML 68 48 76
250ML 88 68 98
500ML 108 88 115
1L 133 109 142
1.5L 133 109 178
2L 158 134 172
2.5L 158 134 202
3L 158 138 210
4L 178 158 226
5L 218 190 217
10L 246 218 307
15L 273 243 372
20L 320 285 359
25L 320 285 424

1. High temperature resistance: the operating temperature reaches 250℃.
2. Low temperature resistance: good mechanical toughness ; Even if the temperature drops to -196°C, the elongation of 5% can be maintained.
3. Corrosion resistance: It is inert to most chemicals and solvents, and can withstand strong acids and alkalis, water and various organic solvents.
4. Weather resistance: has the best aging life among plastics.
5. High lubrication: It is the one with the lower friction coefficient among solid materials.
6. Non-adhesive: It has the smallest surface tension among solid materials and does not adhere to any substance.
7. Non-toxic: It is physiologically inert and has no adverse reactions when used as artificial blood vessels and organs for long-term implantation in the body.
