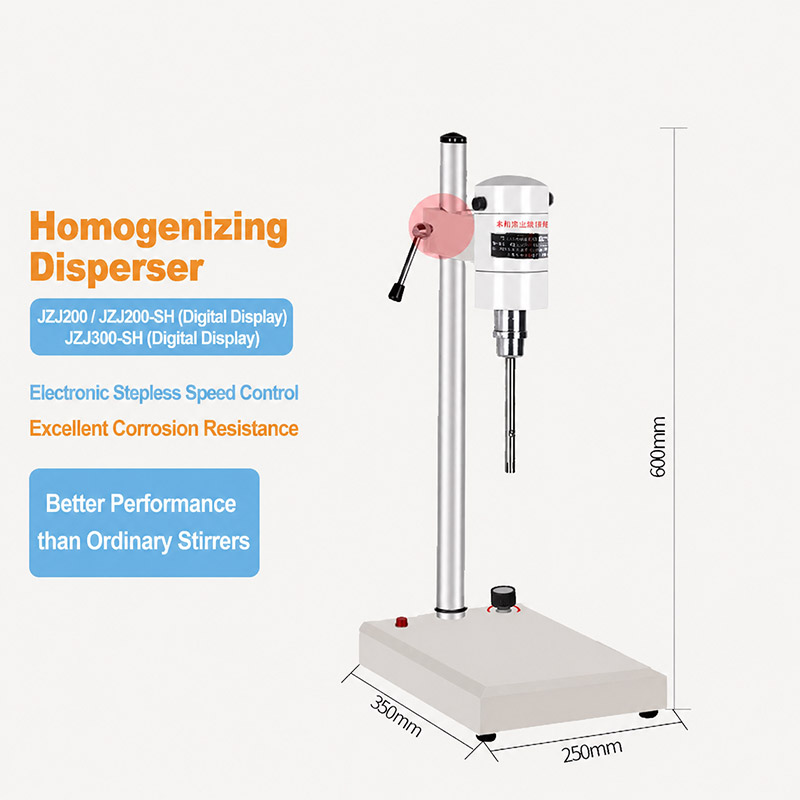

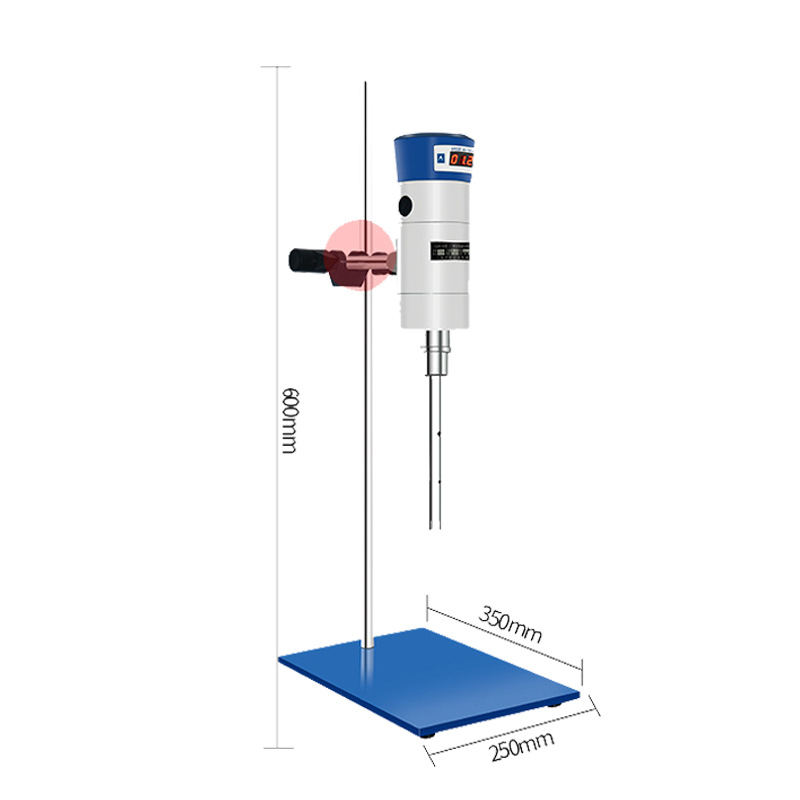

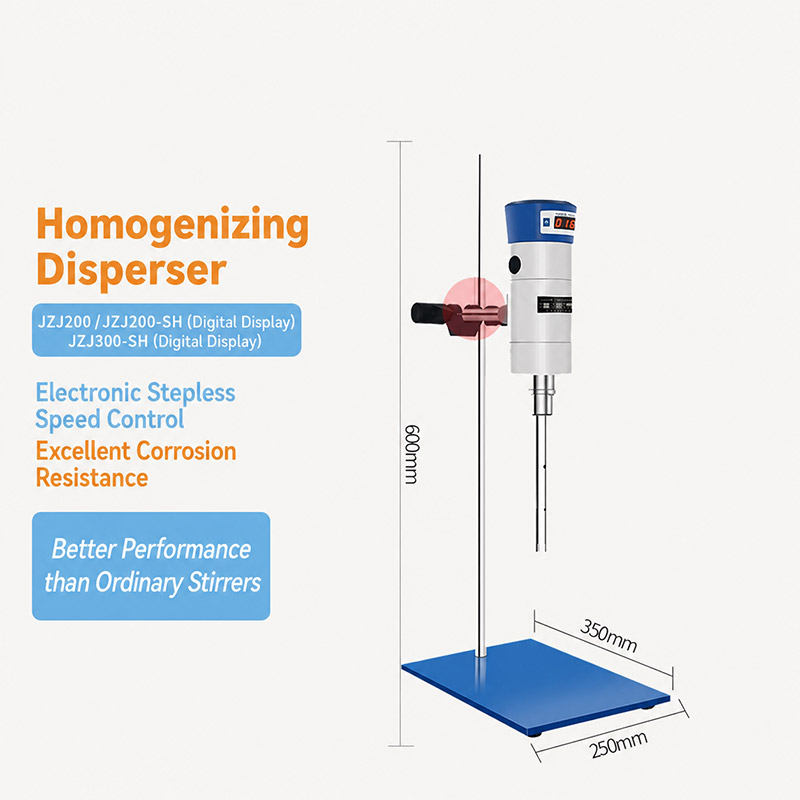

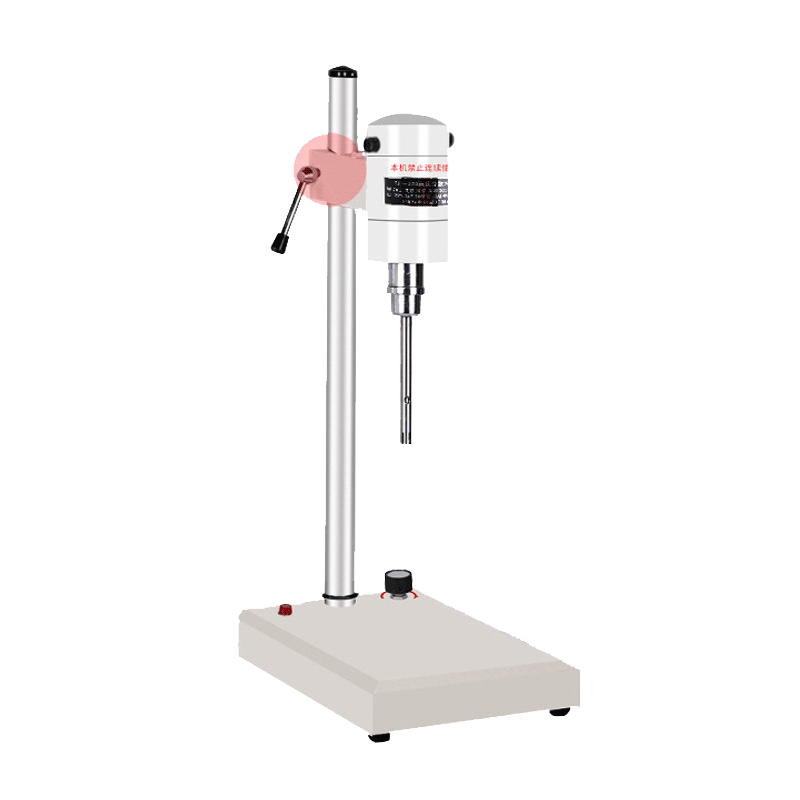

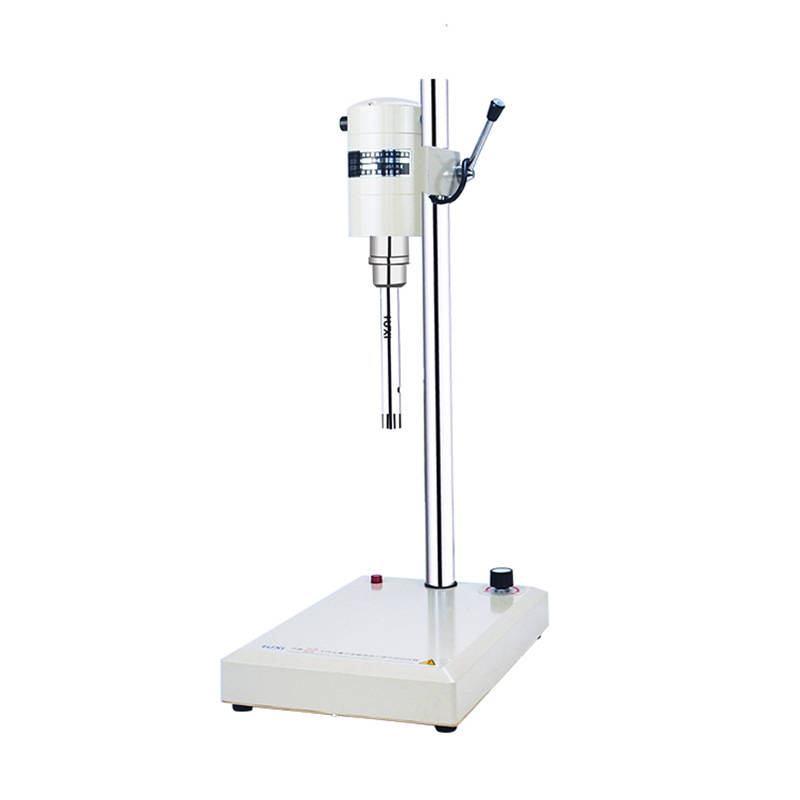

The homogenizer and disperser has a novel design concept, a reasonable and compact structure, and adopts a CNC touch-type stepless speed regulator, which is convenient for speed adjustment and can digitally display the operating speed, making the machine safer and more reliable. The drive motor adopts a micro motor with a high-density die-cast aluminum alloy casing, which has high power, high speed, and safe and reliable operation. ; The operating status control adopts electronic stepless speed regulator, which is convenient for speed adjustment. ; The dispersing and homogenizing working head is made of high-quality stainless steel (parts in contact with materials) and has good corrosion resistance. ; The working head is connected to the drive motor using a connector, making it easy to assemble and disassemble. It is especially suitable for mixing and emulsifying liquids/liquids such as biology, physics, chemistry, cosmetics, health products, and food, dispersing and homogenizing liquid/solid powders, and mashing and slurrying of tissue cells. It is an ideal experimental equipment for scientific research, product development, quality control and production process applications in scientific research institutions, colleges and universities, health and epidemic prevention and product manufacturing.

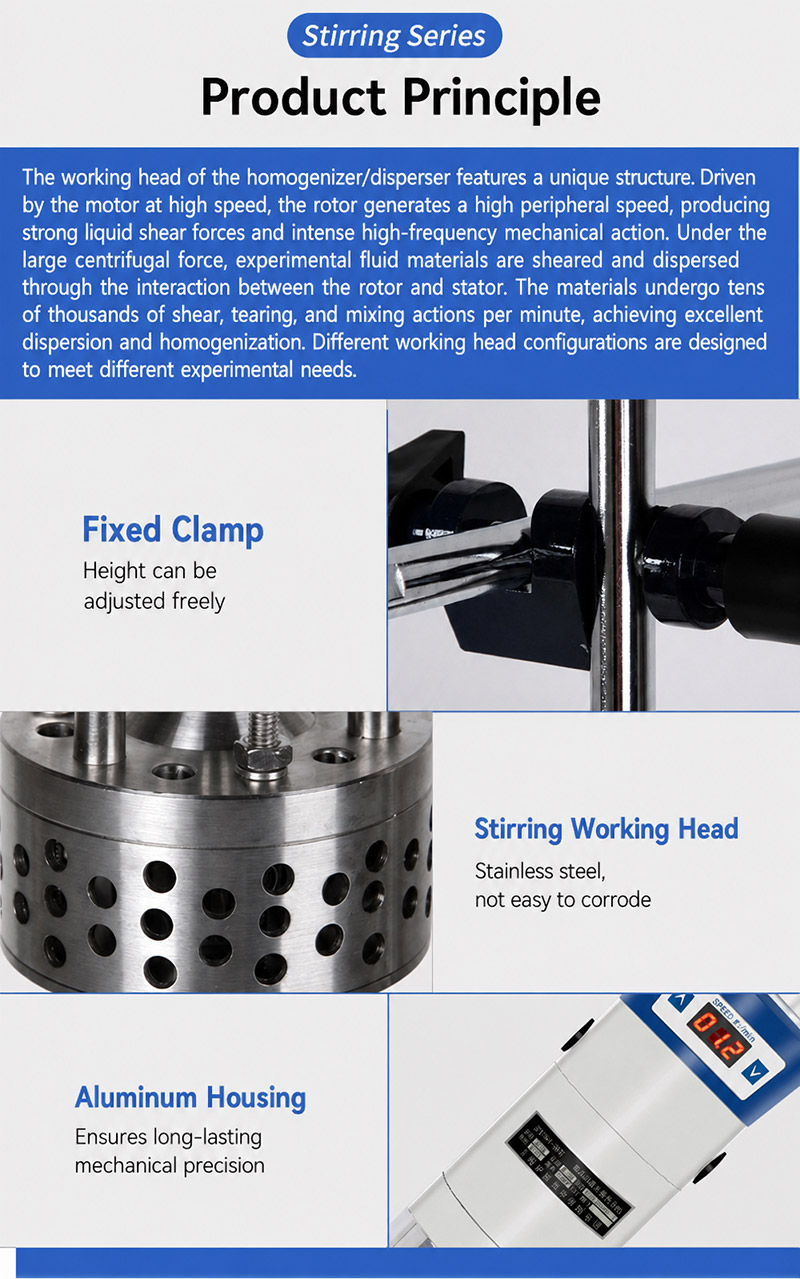

The working head of the homogenizer and disperser has a unique structure. The rotor is driven by the motor at high speed and rotates at a high linear speed, which generates strong liquid shear force and violent high-frequency mechanical effects, prompting the experimental fluid materials to shear and disperse through the rotor and stator under the action of huge centrifugal force. The test materials are subjected to tens of thousands of shearing, tearing and mixing per minute to achieve dispersion and homogeneity. Working head configurations of different specifications are designed to meet different experimental needs.
Technical parameters
| NameModel | JZJ200 | JZJ200-SH (digital display) | JZJ300-SH (digital display) |
| Speed r/min | 300-23000 | 300-23000 | 300-23000 |
| Processing volume ML | 30-1500 | 30-1500 | 100-13000 |
| Input power w | 280 | 280 | 510 |
| Output power w | 200 | 200 | 300 |
| Overall dimensionsmm | 220*340*600 | 210*310*700 | 210*310*700 |
| Working head configuration MM | Φ12 Φ18 | Φ12 Φ18 | Φ28 Φ36 |
| Working methods | intermittent | intermittent | intermittent |
| power supply | AC220V/50hz | AC220V/50hz | AC220V/50hz |
| Rated torque n.cm | 83 | 68 | 68 |
Parameters
| Model | |
|---|---|
| Grinding Jar Capacity | |
| Feed Size | |
| Output Size | |
| Speed | |
| Power | |
| Voltage | |
| Dimensions | |
| Weight | 0 |
