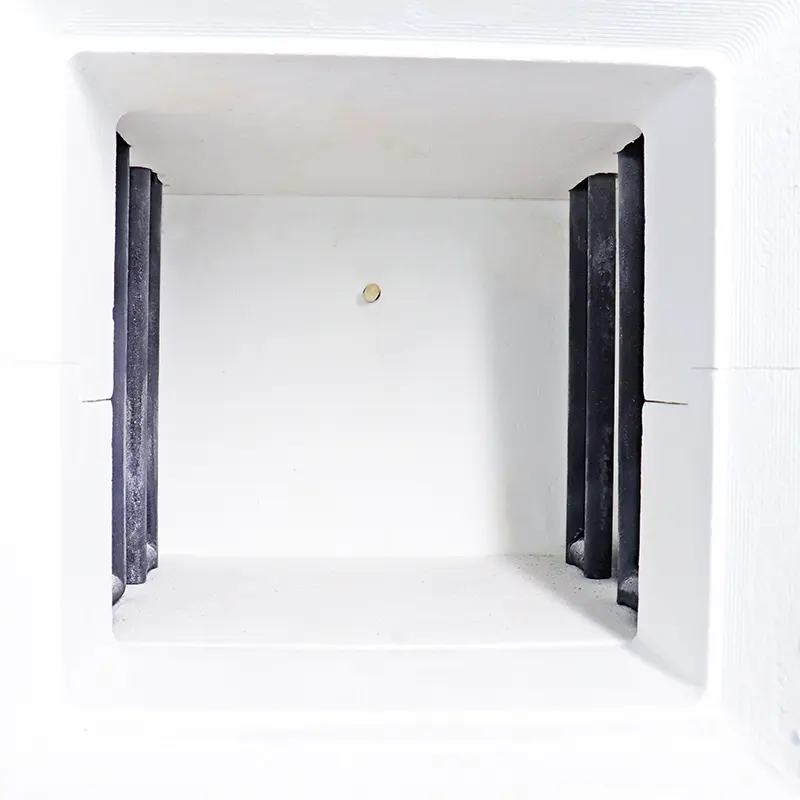

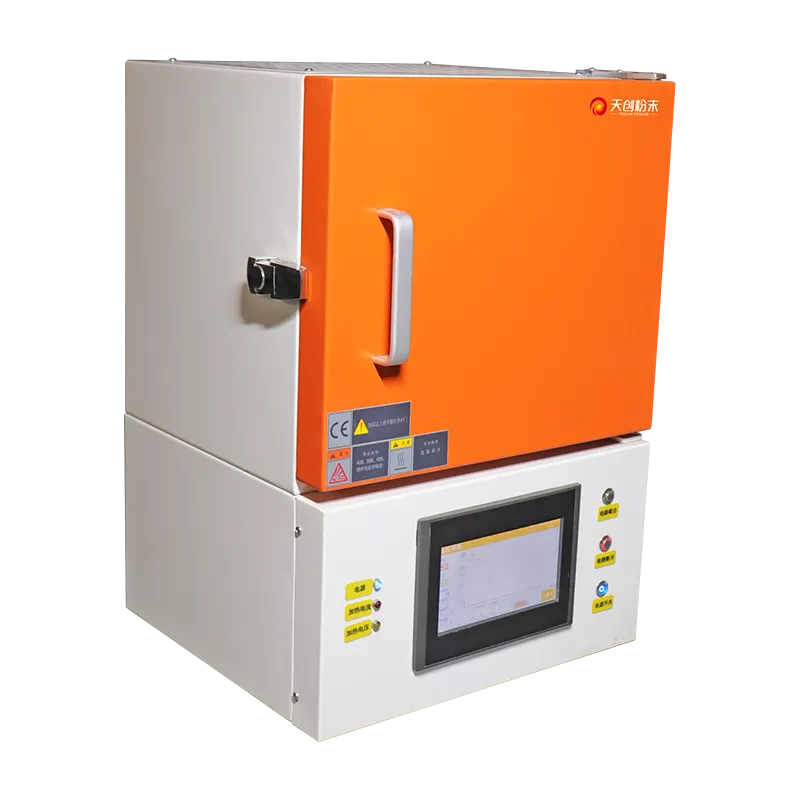

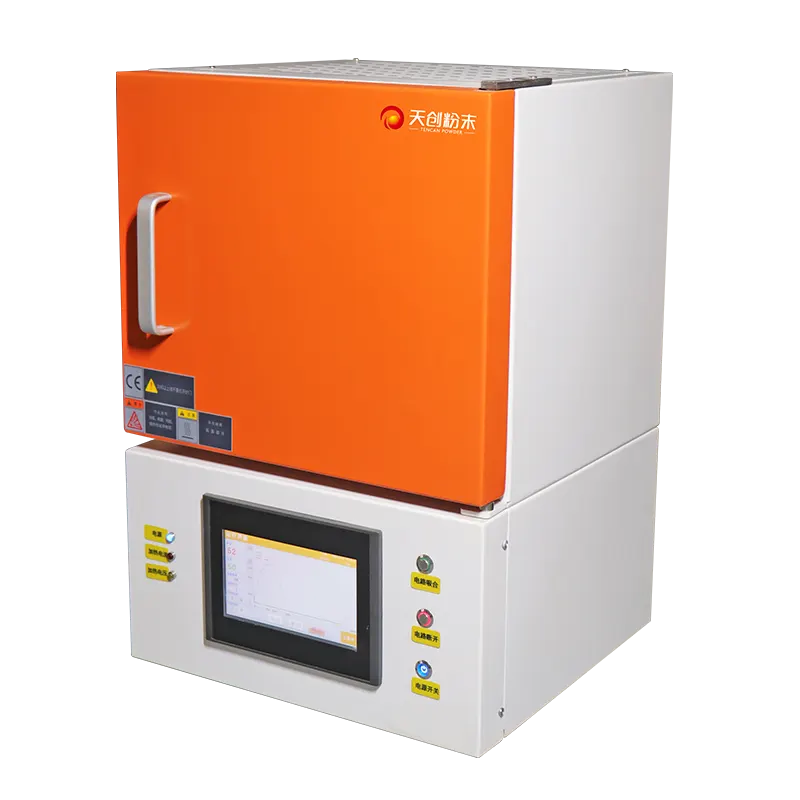

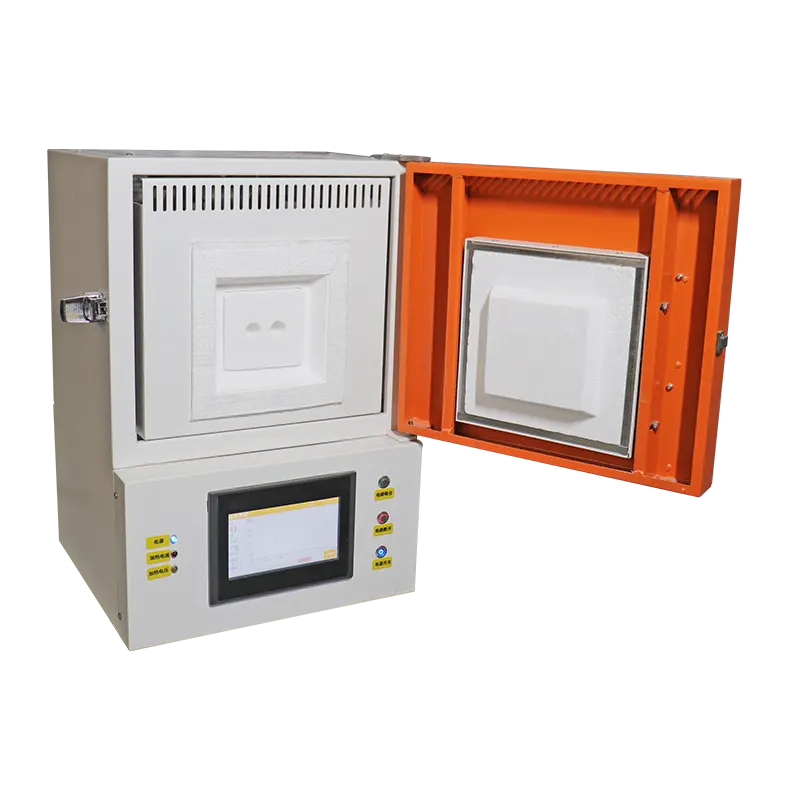

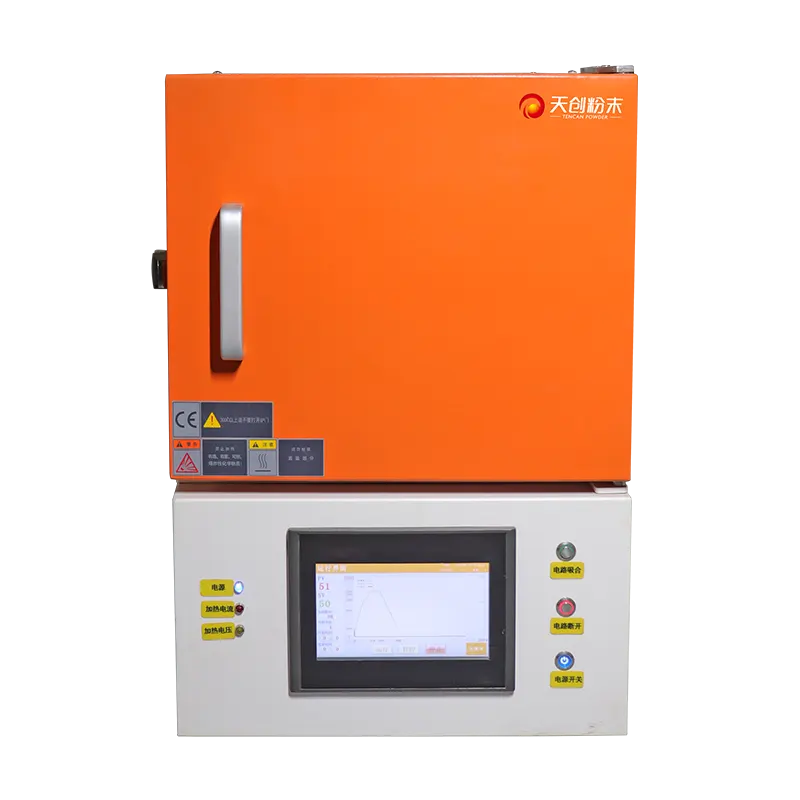

Tianchuang box-type sintering furnace uses high-purity polycrystalline mullite fiber as the furnace material. It is light weight, compact and has a power of only 1.5kW. It is suitable for use in small laboratories and even home-style working environments. It has been widely used in dental laboratories for zirconia sintering and laboratories for small batch sintering.
The box-type sintering furnace is a heat treatment equipment used in the sintering process. Its appearance and structure are similar to a box. The workpiece or sample is placed in the furnace for sintering treatment. By heating to a certain temperature, the bonding force between the material particles is enhanced to form a solid whole. This furnace is designed as a closed structure to ensure that a specific atmosphere is maintained during the sintering process and that the workpiece or sample is heated evenly.
Technical parameters
| Furnace size | 100*100*100mm (width*height*depth) |
| maximum temperature | 1700℃ (not more than 2 hours) |
| working temperature | 1600℃ |
| Temperature control method | Intelligent 50-segment programmable control |
| Thermocouple | Type B |
| Temperature control accuracy | +/-1 ℃ |
| Rated power | 1.5kW |
| net weight | 58kgs |
| Overall dimensions | 410x380x610mm |
- It is specially designed for sintering small batch samples of zirconia denture crystals, structural ceramics, polymer ceramics and other laboratory samples.
- The power is only 1.5kW, no special high-power circuit is required, and the circuit in the home can be used.
- Fast heating speed, adjustable from 0-40°C/minute.

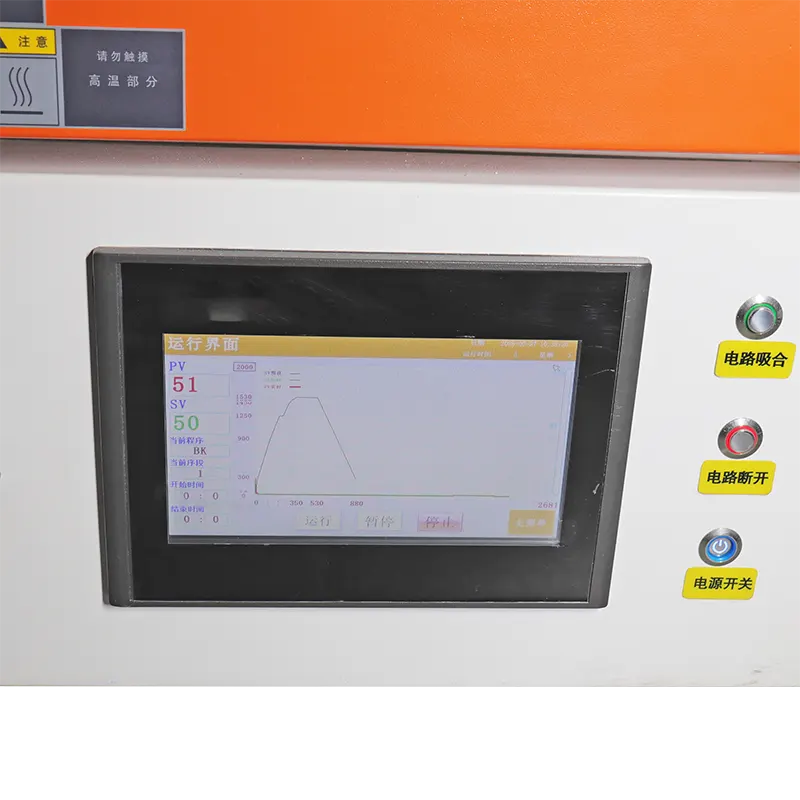

- The 7-inch high-definition touch screen is easy to operate and can store 30 different process programs.
Standard accessories:
1 silicon molybdenum rod ;
1 corundum crucible ;
1 pack of zirconium beads ;
1 fireproof brick ;
Parameters
| Model | TC-CDF |
|---|---|
| Grinding Jar Capacity | |
| Feed Size | |
| Output Size | |
| Speed | |
| Power | |
| Voltage | |
| Dimensions | |
| Weight | 0 |
