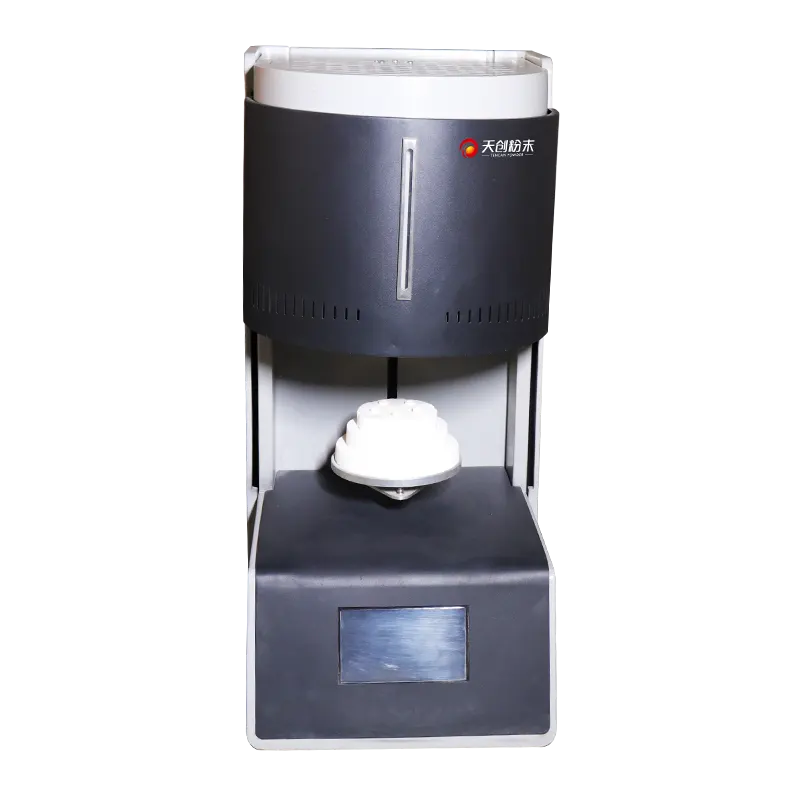

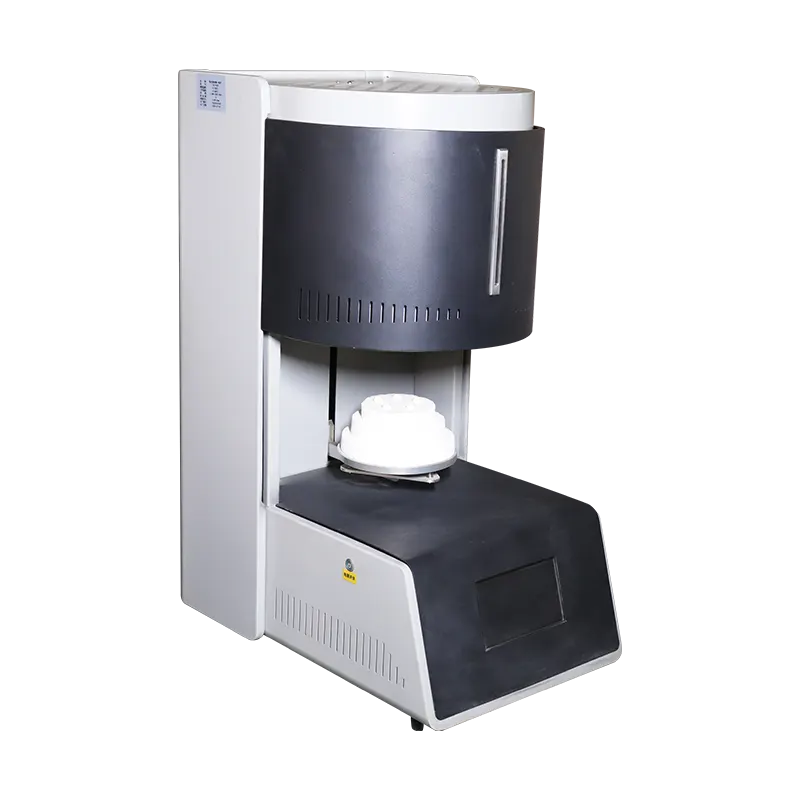

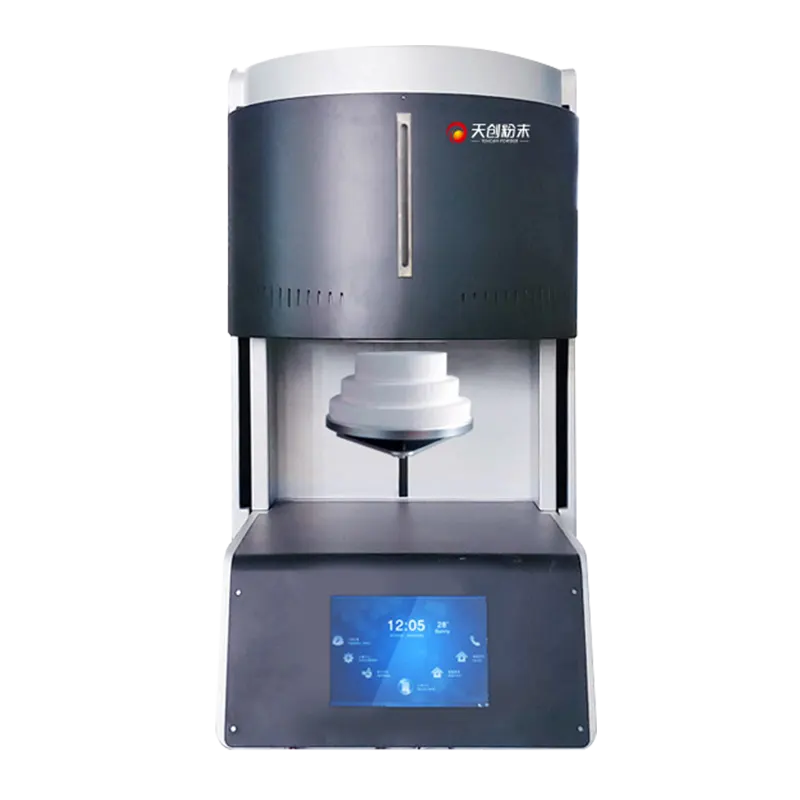

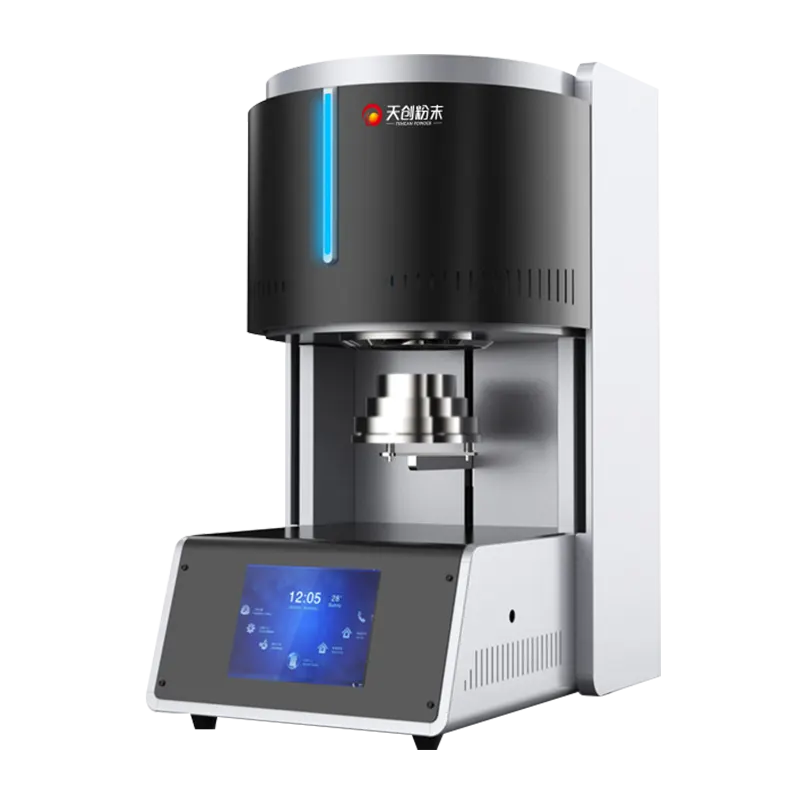

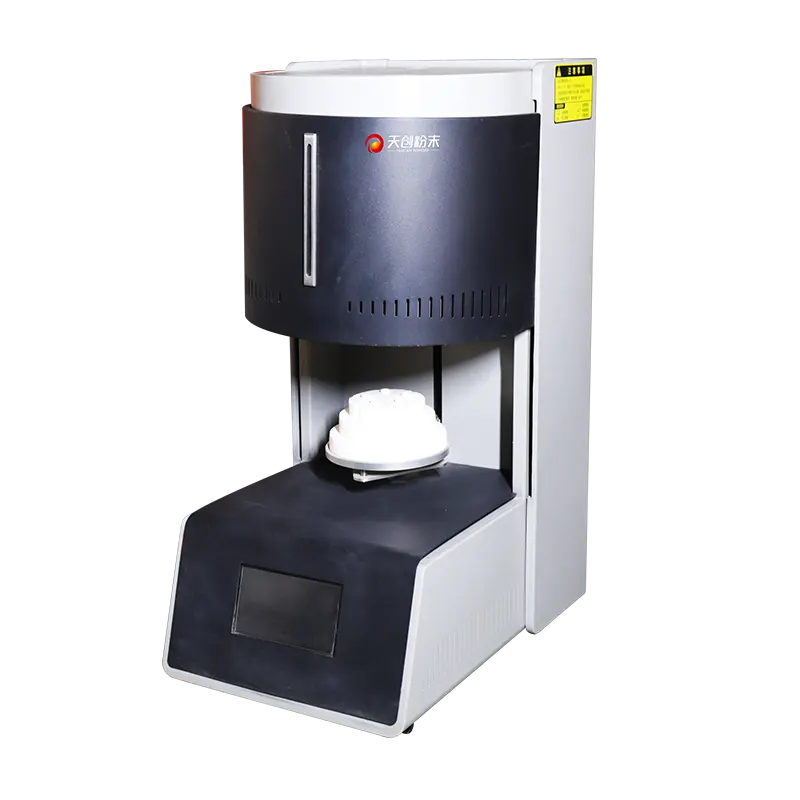

Tianchuang Plus zirconia sintering furnace is an upgraded model of ordinary Tianchuang sintering furnace. It has the characteristics of precise temperature control, one-button start and fast sintering.; Up to 150 teeth can be sintered at the same time, and 3 layers of crucibles can be placed ; And it uses a furnace imported from Japan, which is pure and zero pollution.
Tianchuang PLUS sintering furnace is a heat treatment equipment specially used for sintering dental ceramics. This furnace has a specific structure and control system to sinter dental ceramics under specific temperature and atmosphere conditions to ensure that it has the required hardness, wear resistance and aesthetics. Dental sintering furnaces usually have precise temperature control and atmosphere management functions to meet the requirements of the dental ceramic sintering process.
Technical parameters
| Furnace size | 100*100mm (diameter*height) |
| maximum temperature | 1700℃ (not more than 2 hours) |
| working temperature | 1600℃ |
| Control system | One-click start, fully automatic pollution-free guarantee, crown pre-baking design, circulating air intake, imported heating rod, completely solve the pollution problem |
| built-in programs | 7 preset programs (normal, long bridge, half mouth, quick burn, TT veneer, UT veneer, clean) |
| Furnace material | Furnace imported from Japan, super long service life |
| Fast sintering | 90 minutes (80 units per crown) |

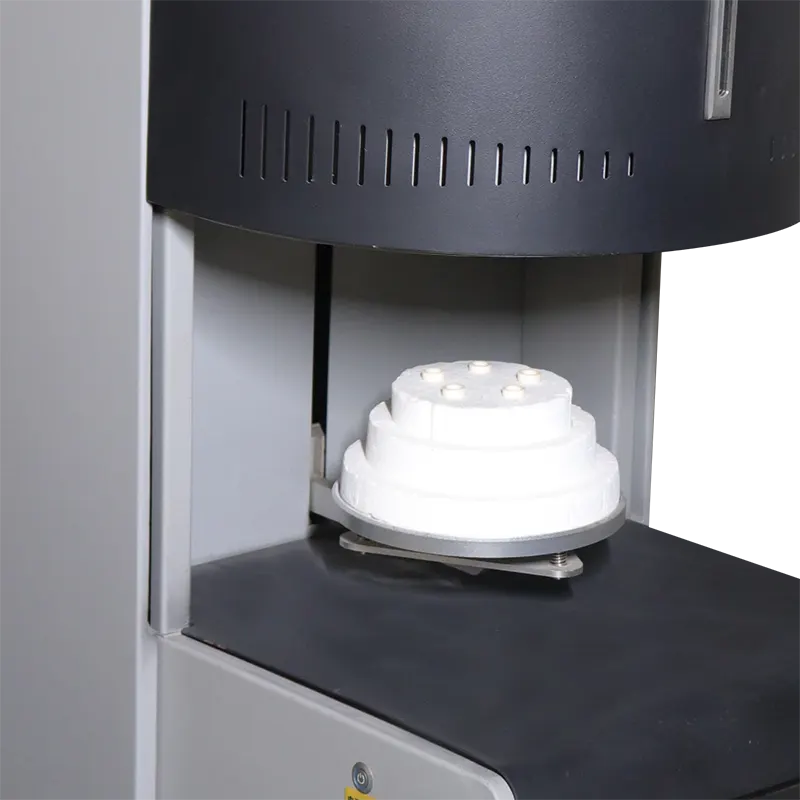

| Conventional sintering | 150 units, 3-layer sintering tray |
| Thermocouple | Type B |
| Temperature control accuracy | +/-1 ℃ |
| Rated power | 2kW (one ordinary sintering only requires 8 kilowatt hours) |
| net weight | 90kgs |
| Overall dimensions | 480X635X840MM |
Parameters
| Model | TC-BPSF |
|---|---|
| Grinding Jar Capacity | |
| Feed Size | |
| Output Size | |
| Speed | |
| Power | |
| Voltage | |
| Dimensions | |
| Weight | 0 |
