Technical parameters
Standard specifications: Type 1200
| model | Maximum temperature(°C) | Operating temperature(°C) | Furnace size (width*height*depth) mm | Voltage(V) | Power(kW) |
| TC-12AN-2 | 1200 | 1100 | 120*120*130 | 220 | 1.2 |
| TC-12AN-3 | 1200 | 1100 | 150*150*150 | 220 | 2.5 |
| TC-12AN-5 | 1200 | 1100 | 150*150*200 | 220 | 3 |
| TC-12AN-8 | 1200 | 1100 | 200*200*200 | 220 | 5 |
| TC-12AN-12 | 1200 | 1100 | 200*200*300 | 220 | 6 |
| TC-12AN-27 | 1200 | 1100 | 300*300*300 | 380 | 8 |
| TC-12AN-36 | 1200 | 1100 | 300*300*400 | 380 | 10 |
| TC-12AN-64 | 1200 | 1100 | 400*400*400 | 380 | 16 |
| model | Maximum temperature(°C) | Operating temperature(°C) | Furnace size (width*height*depth) mm | Voltage(V) | Power(kW) |
| TC-14AS-1 | 1400 | 1300 | 100*100*100 | 220 | 1 |
| TC-14AS-2 | 1400 | 1300 | 120*120*130 | 220 | 2 |
| TC-14AS-3 | 1400 | 1300 | 150*150*150 | 220 | 3 |
| TC-14AS-5 | 1400 | 1300 | 150*150*200 | 220 | 4 |
| TC-14AS-8 | 1400 | 1300 | 200*200*200 | 220 | 5 |
| TC-14AS-12 | 1400 | 1300 | 200*200*300 | 220 | 7 |
| TC-14AS-27 | 1400 | 1300 | 300*300*300 | 380 | 9 |
| TC-14AS-36 | 1400 | 1300 | 300*300*400 | 380 | 11 |
| TC-14AS-64 | 1400 | 1300 | 400*400*400 | 380 | 18 |
Standard specifications: Type 1700
| model | Maximum temperature(°C) | Operating temperature(°C) | Furnace size (width*height*depth) mm | Voltage(V) | Power(kW) |
| TC-17AM-1 | 1700 | 1600 | 100*100*100 | 220 | 1 |
| TC-17AM-2 | 1700 | 1600 | 120*120*130 | 220 | 3 |
| TC-17AM-3 | 1700 | 1600 | 150*150*150 | 220 | 4 |
| TC-17AM-5 | 1700 | 1600 | 150*150*200 | 220 | 5 |
| TC-17AM-8 | 1700 | 1600 | 200*200*200 | 220 | 7 |
| TC-17AM-12 | 1700 | 1600 | 200*200*300 | 220 | 8 |
| TC-17AM-27 | 1700 | 1600 | 300*300*300 | 380 | 10 |
| TC-17AM-36 | 1700 | 1600 | 300*300*400 | 380 | 12 |
| TC-17AM-64 | 1700 | 1600 | 400*400*400 | 380 | 20 |
- RT~1700°C。

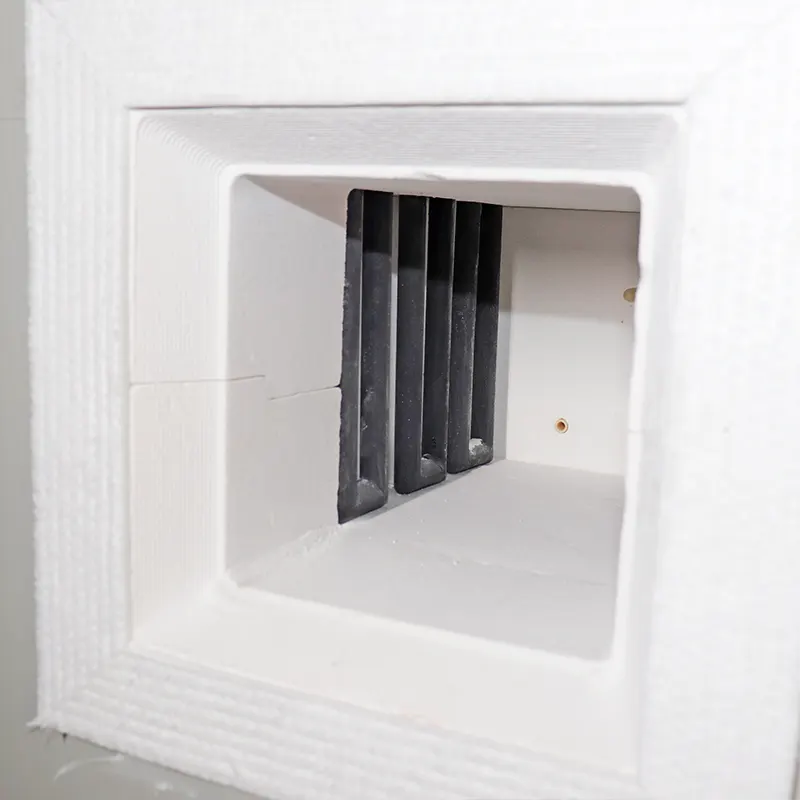

- The furnace uses alumina polycrystalline fiber, which has a constant temperature field and no pollution.
- Fully enclosed structure furnace, double-layer thickened steel shell, ultimate vacuum up to -0.1MPA.
- The top, left side, right side and back are all made of 12MM solid square steel as reinforcement.
- No deformation even after vacuuming. The maximum vacuum degree can reach -0.08MPA.
- The temperature control system adopts industrial precision 0.2 level intelligent instrument, PID adjustment, and 50-segment programming.

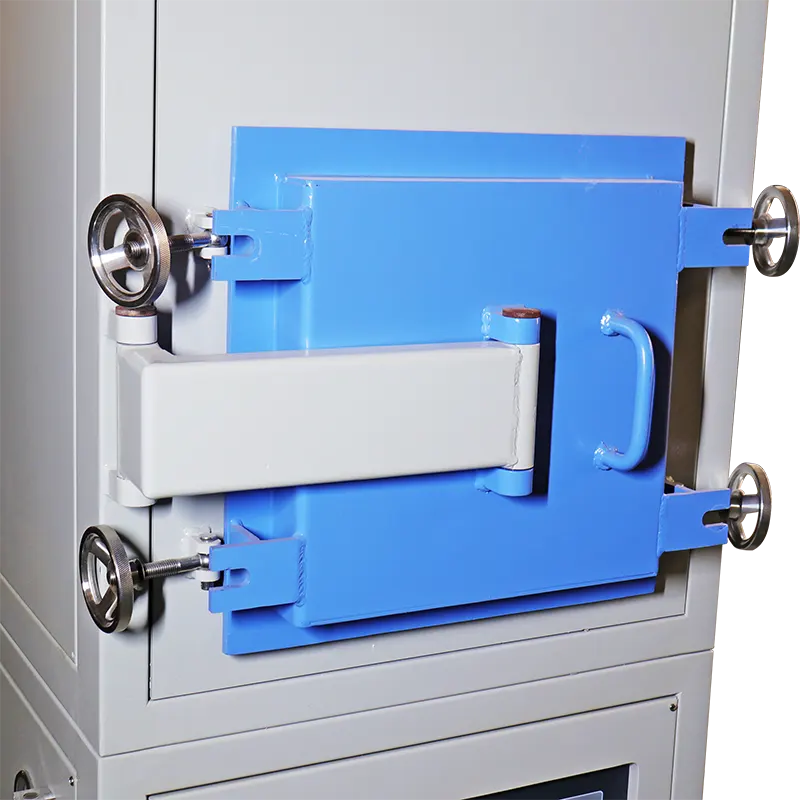

- The furnace door has good sealing performance, four handwheels lock the furnace door tightly, and the silicone ring seals it.
Standard accessories:
Furnace door block fire brick (except model 1200)
high temperature gloves
Crucible tongs
manual
Two thermal elements (except type 1200)
Rotary vane vacuum pump
Optional accessories:
Direct connected vacuum pump
Touch screen/computer connection software
Furnace crucible (multi-layer kiln furniture)
Heating elements (silicon molybdenum rods, silicon carbon rods)

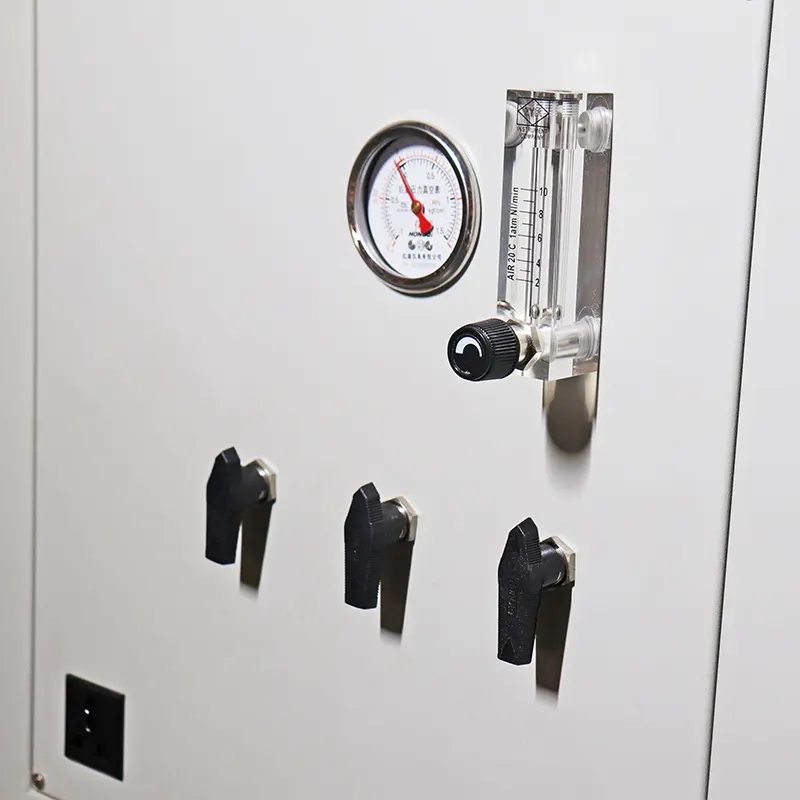

Gas system (float/proton flow meter, 2-way/3-way gas)
