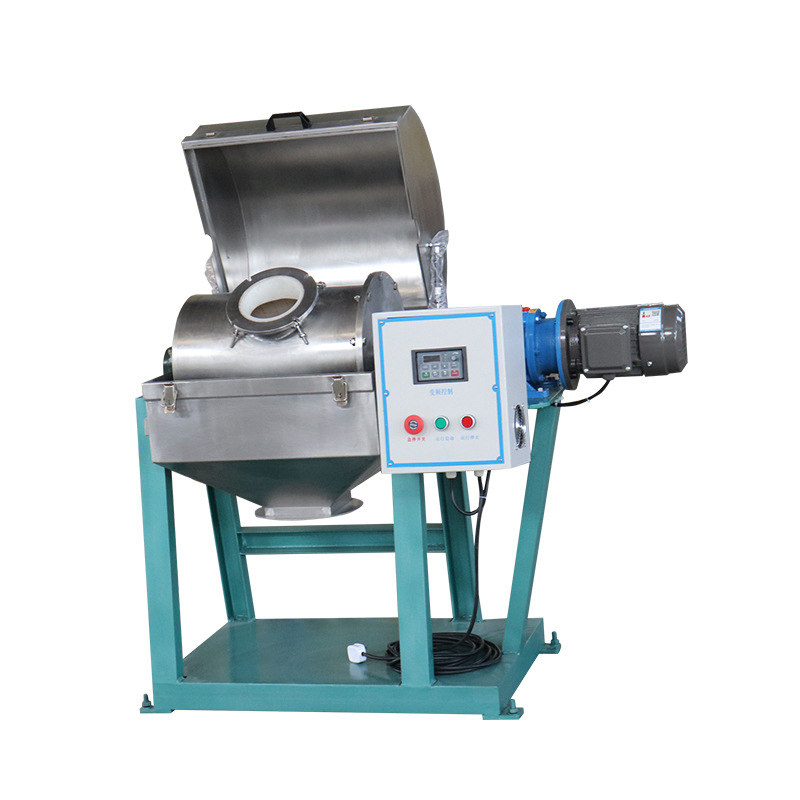

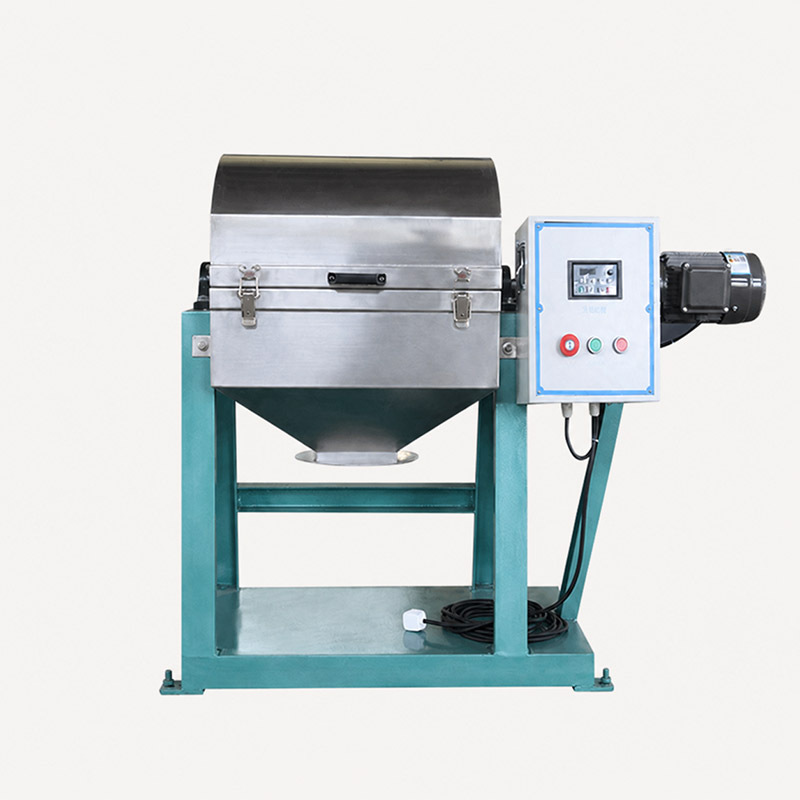

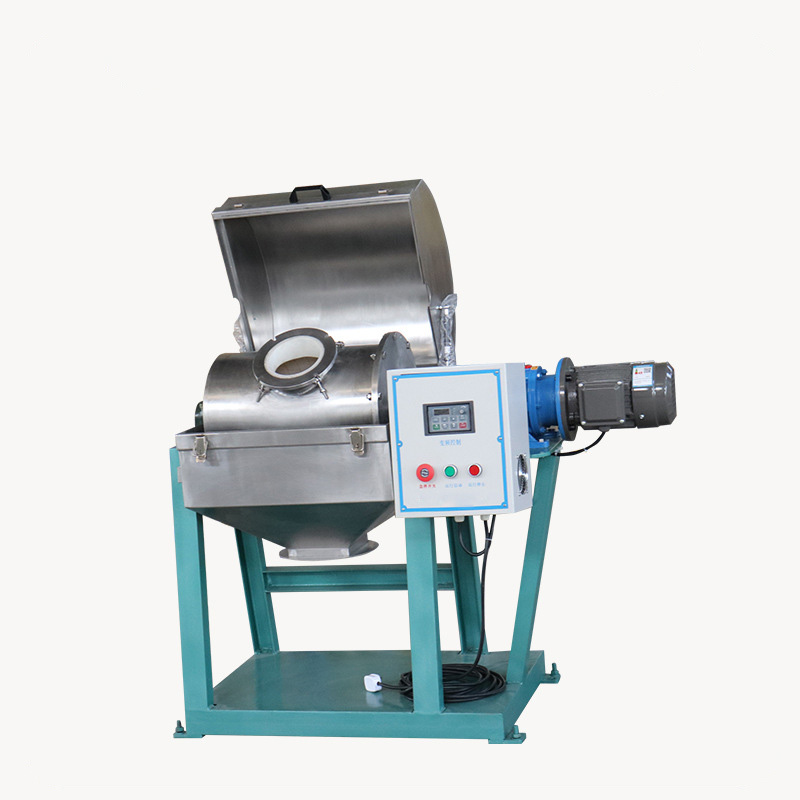

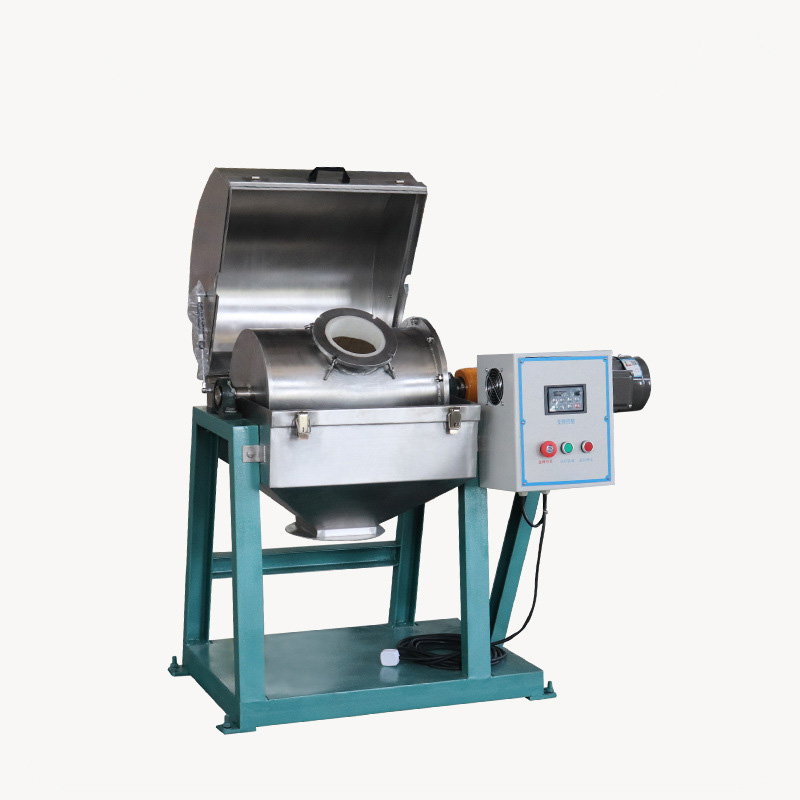

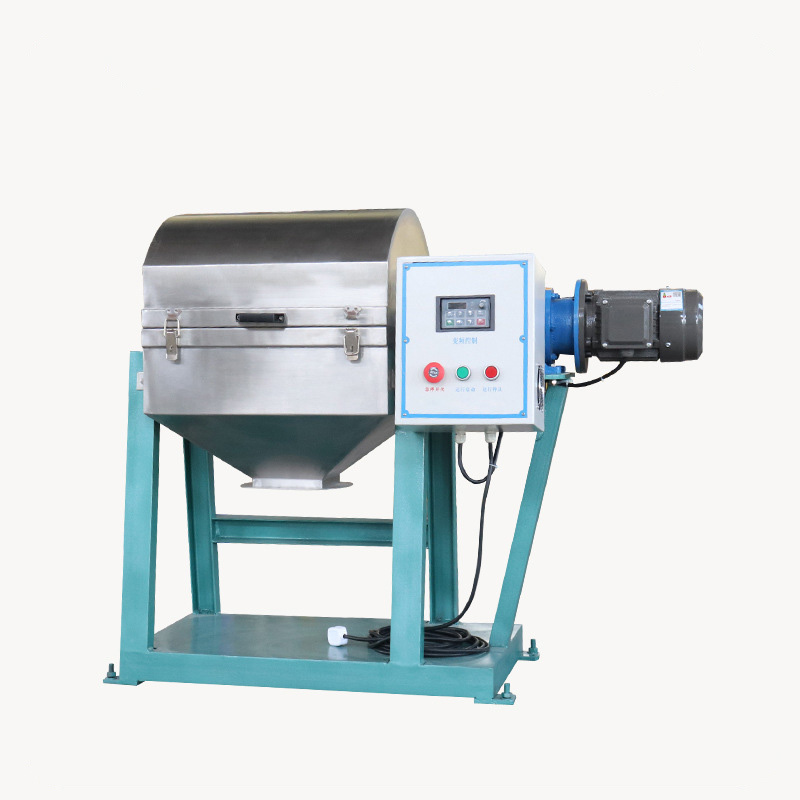

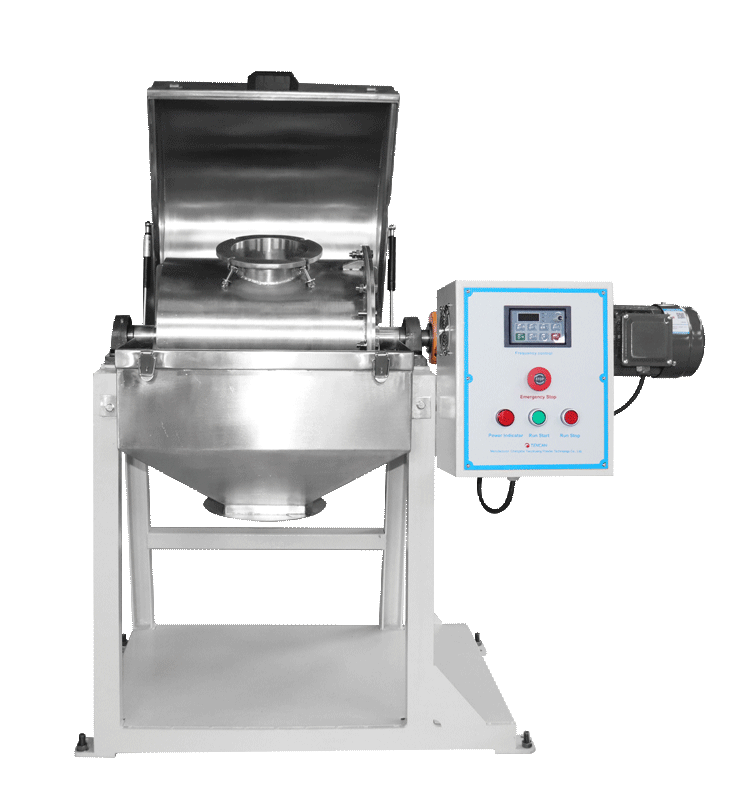

Ceramic ball mill is a ball mill whose lining plate is made of ceramic. Capacity is generally suitable for intermittent small batch production of product trials. It is a new type of energy-saving ball milling equipment developed by domestic mineral processing machinery experts combined with new domestic ball milling technology.
Ceramic ball mill is a ball mill whose lining plate is made of ceramic. Capacity is generally suitable for intermittent small batch production of product trials. It is a new type of energy-saving ball milling equipment developed by domestic mineral processing machinery experts combined with new domestic ball milling technology.
Technical parameters
| name | Volume (L) | Speed rpm | Loading capacity (L) | Motor power (kw) | Grinding barrel material | Feed particle size (mm) | Discharge particle size (mesh) | speed regulation |
|---|---|---|---|---|---|---|---|---|
| QM-30L | 30 | 20~60 | 10.5 | 0.75 | ≤5 | ≥300 |
Frequency conversion debugging or Fixed speed |
|
| QM-50L | 50 | 20~50 | 17.5 | 1.5 | ||||
| QM-100L | 100 | 20~45 | 35 | 2.2 | ≤10 | |||
| QM-200L | 200 | 20~40 | 70 | 4 | ||||
| QM-300L | 300 | 20~38 | 105 | 5.5 | ||||
| QM-500L | 500 | 20~36 | 175 | 7.5 | ||||
| QM-1000L | 1000 | 20~34 | 350 | 11 | ≤20 | |||
| QM-2000L | 2000 | 20~34 | 700 | 22 |
Remark: 25-50L is single-phase 220V, and above 50L is three-phase 380V
1. Model description: QM-(Volume)-(A speed regulating type, B ordinary type) For example: QM-50-A is a 50L speed regulating roller ball mill;
2. Determine the machine model based on the grinding volume;
3. Select ball mill tanks (or different ball mill tank linings) and grinding balls of different materials according to the material properties.;
4. You can choose equipment with automatic unloading device and dust cover. Material and balls can be separated automatically, making discharging convenient 。
5. The machine operates smoothly, is highly efficient and energy-saving, and has low noise. ;
6. It can be used for dry or wet grinding, and can handle materials of various hardnesses. It can be used for coarse or fine grinding or mixing of materials. ;
7. Using a protective jacket, the material has high purity and low pollution ;
8. Anti-wear, high grinding efficiency ;
9. Alumina corundum ceramic, zirconia ceramic and other linings can be used, and the model can be selected from 25-2000L according to the user's output.
1. The machine operates smoothly, is highly efficient and energy-saving, and has low noise.;
2. It can be used for dry or wet grinding, can handle materials of various hardness, and can be used for coarse or fine grinding or mixing of materials.;

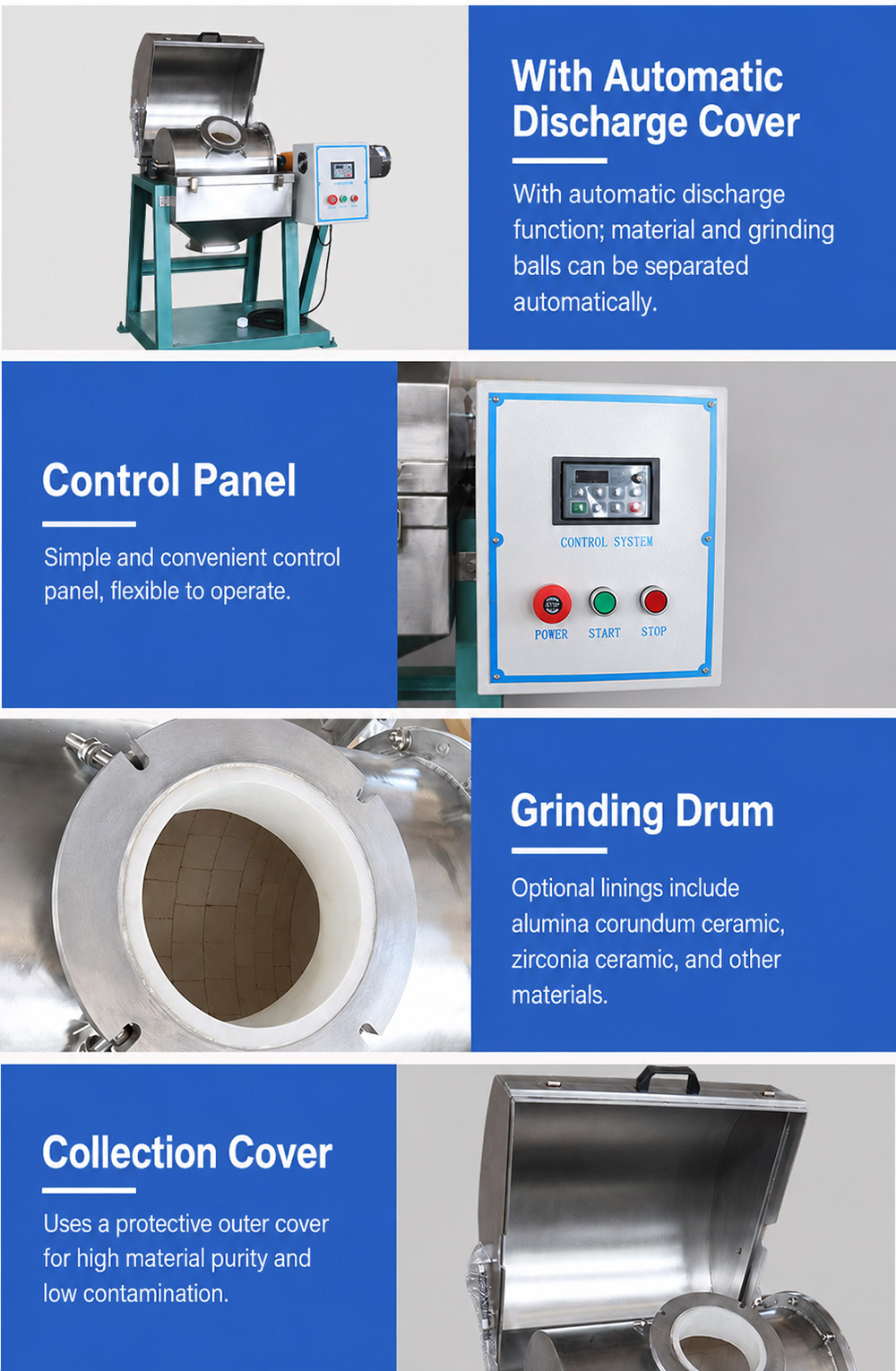

3. With automatic unloading machine, materials and balls can be separated automatically, making discharging convenient;
4. Using a protective jacket, the material has high purity and low pollution;
5. Anti-wear, high grinding efficiency;
6. Alumina corundum ceramics, zirconia ceramics and other linings can be used. The model can be selected from 25-2000L according to the user's output.
Parameters
| Model | QM |
|---|---|
| Grinding Jar Capacity | |
| Feed Size | |
| Output Size | |
| Speed | |
| Power | |
| Voltage | |
| Dimensions | |
| Weight | 0 |
