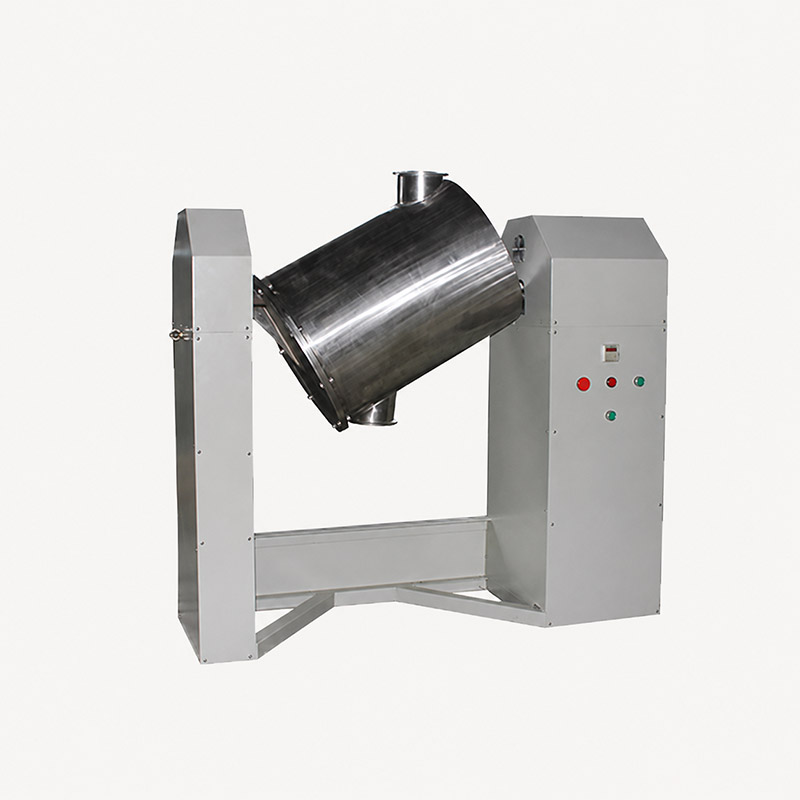

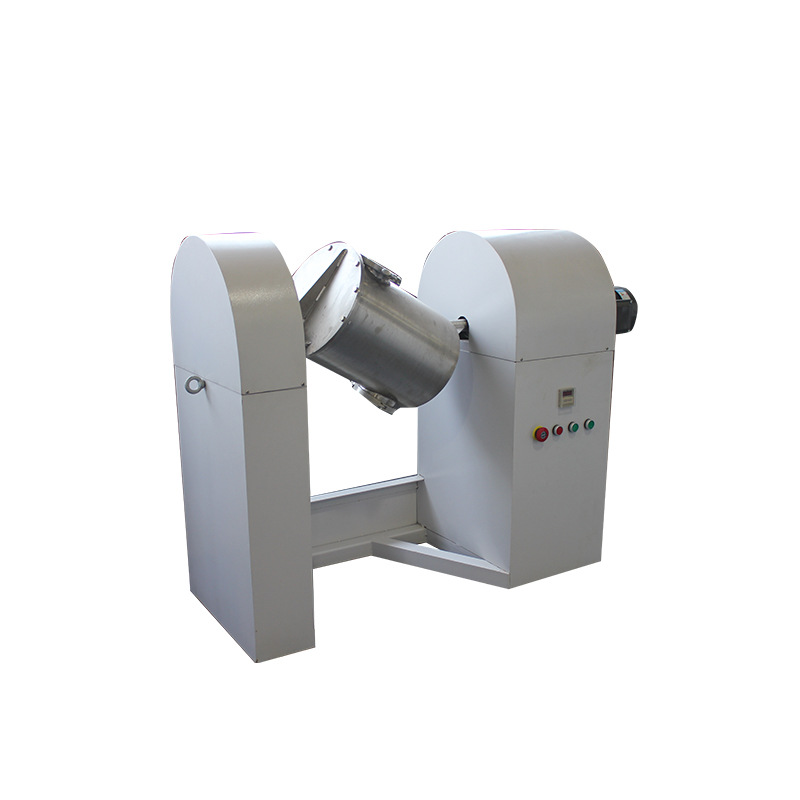

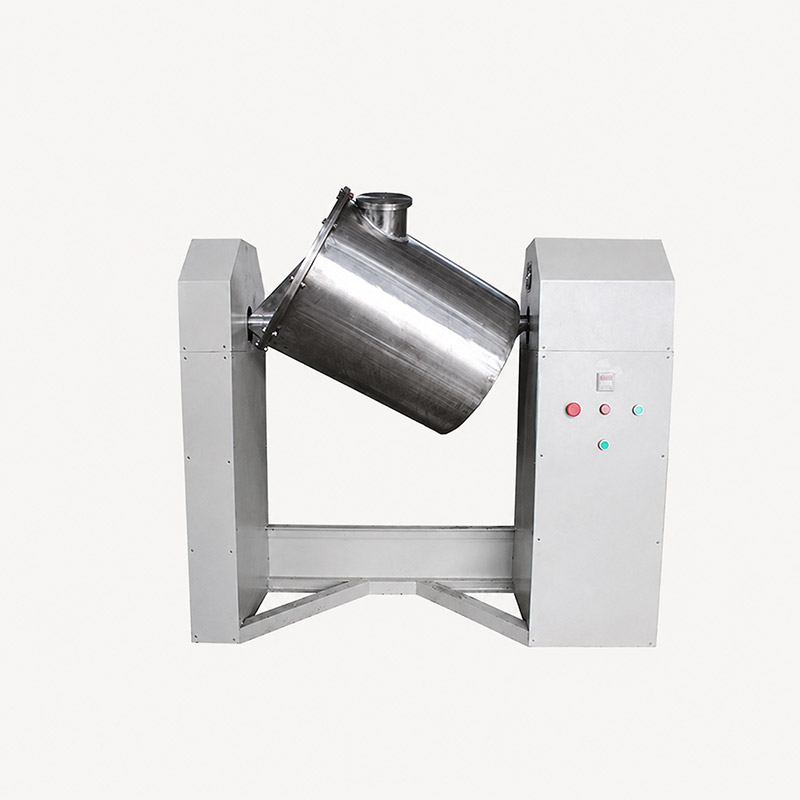

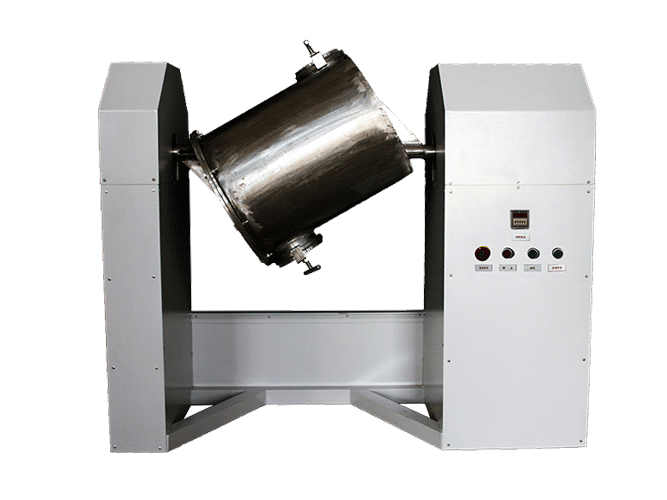

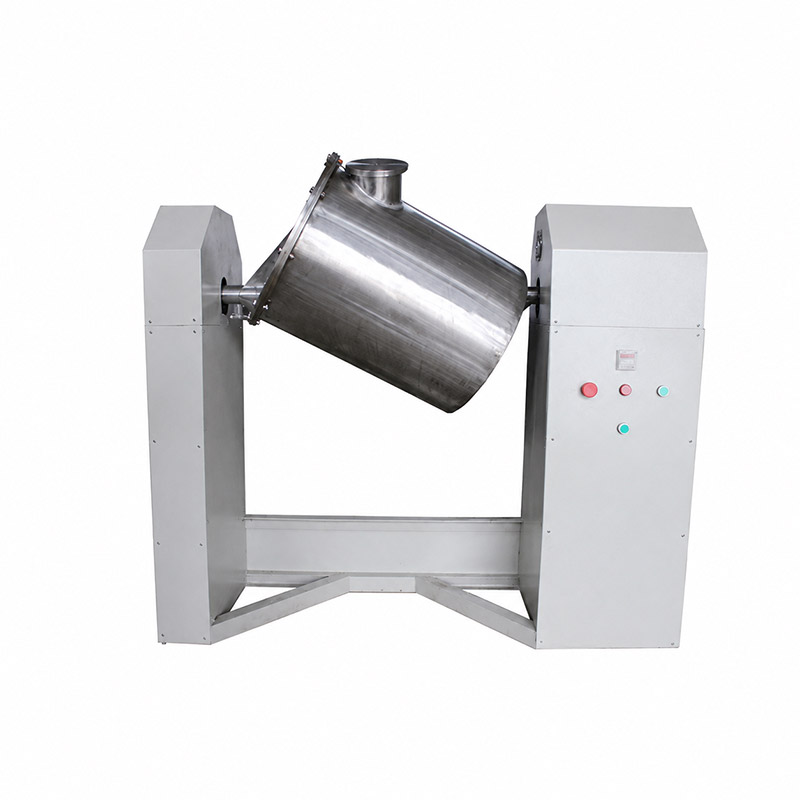

The mixing barrel of this machine is tilted 30 degrees from the horizontal and runs smoothly. It can use polyurethane balls or plastic king balls as grinding media to quickly and evenly mix several different powders. At the same time of mixing, you can add balls to grind, and the grinding and mixing effect will be better. This machine is suitable for mixing a variety of materials, and is widely used in the mixing of two or more materials in various fields such as electronics (lithium cobalt oxide), ceramics, chemicals, medicine, daily chemicals, organic and inorganic. According to the user's requirements, the mixing barrel can be made of stainless steel polished inside and outside or lined with corundum, polyurethane, etc.
Technical parameters
| Specification | Working volume(L) | Total volume(L) | charging factor | Mixing power (kW) | Speed(r/min) |
|---|---|---|---|---|---|
| XMX-5 | 2 | 5 | 0.4 | 0.37 | 50 |
| XMX-10 | 2 | 5 | 0.4 | 0.38 | 50 |
| XMX-20 | 8 | 20 | 0.4 | 0.75 | 33 |
| XMX-50 | 20 | 50 | 0.4 | 1.5 | 33 |
| XMX-100 | 40 | 100 | 0.4 | 1.5 | 23 |
| XMX-200 | 80 | 200 | 0.4 | 3 | 19 |
| XMX-300 | 120 | 300 | 0.4 | 4 | 14 |
| XMX-500 | 200 | 500 | 0.4 | 7.5 | 12 |
The inclined mixer adopts a structure in which the center of the cylinder forms an angle with the horizontal plane, causing the material to move irregularly during operation, thereby achieving uniform mixing.
Parameters
| Model | XMX |
|---|---|
| Grinding Jar Capacity | |
| Feed Size | |
| Output Size | |
| Speed | |
| Power | |
| Voltage | |
| Dimensions | |
| Weight | 0 |
