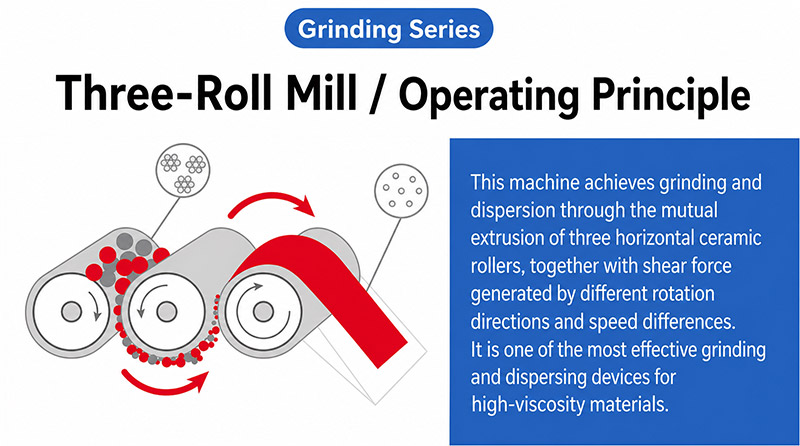

This machine achieves grinding and dispersing effects through the mutual extrusion of the surfaces of three horizontal ceramic rollers and the shearing forces generated by different steering and speed differences. It is the most effective grinding and dispersing equipment for high-viscosity materials.
The most effective grinding and dispersing equipment for high viscosity materials.
Technical parameters

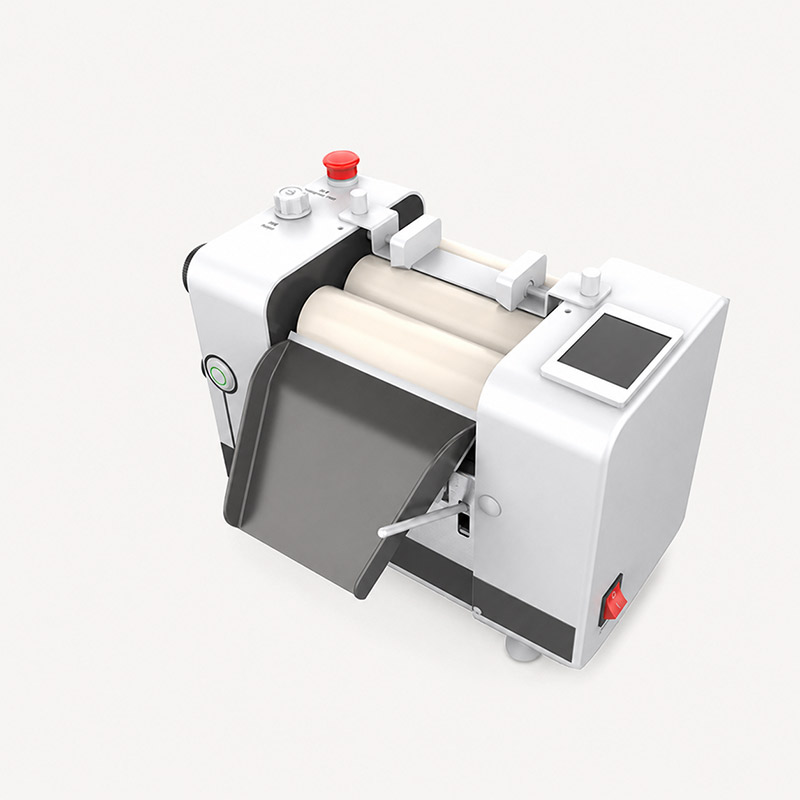

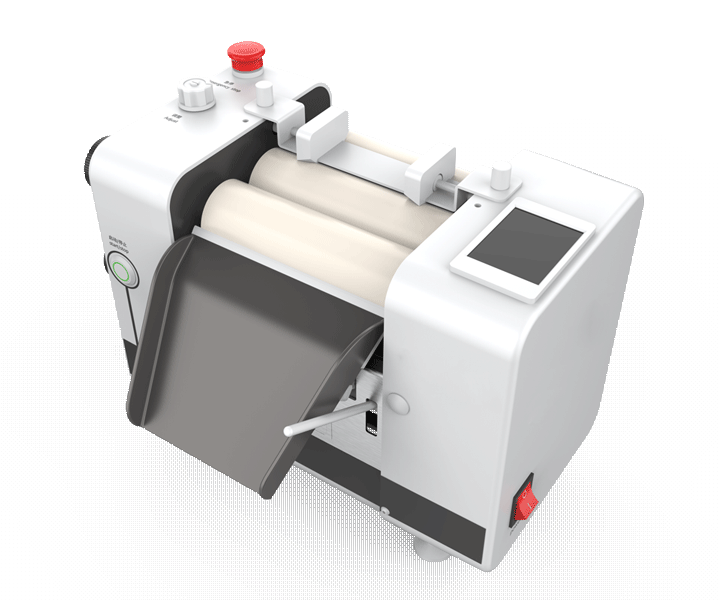

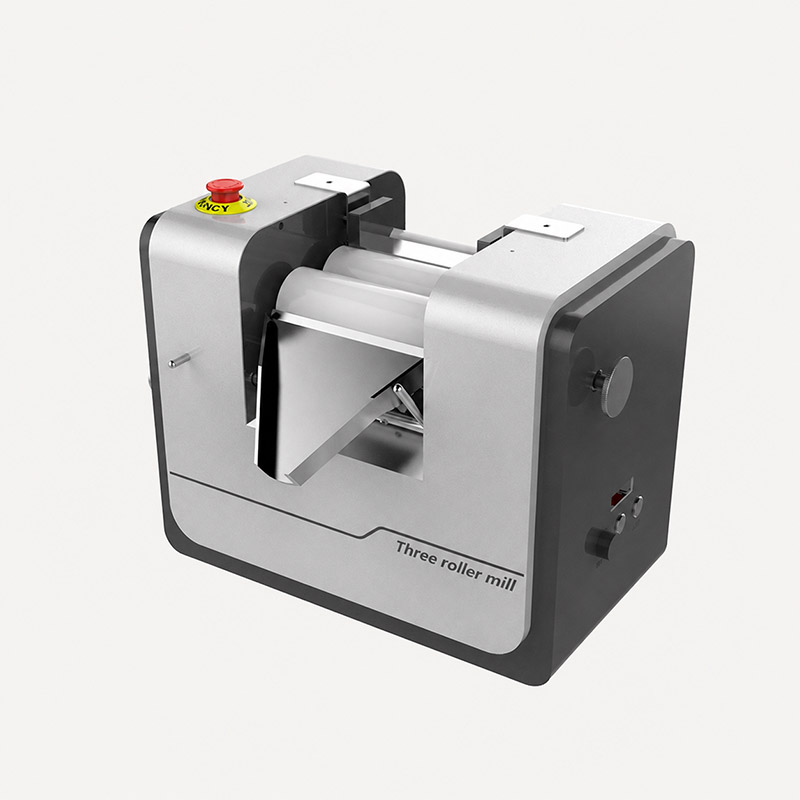

Equipment model: TCTR-50T
Ceramic roller material: zirconia/alumina/silicon carbide/silicon nitride, nano-level imported raw material ceramic roller
Porcelain roller specifications: diameter: 50mm ; Length: 150mm
Porcelain roller precision: roller concentricity/straightness less than 2 microns, surface finish less than 0.3 microns
Speed ratio: Speed ratio is 1:2:4
Porcelain roller spacing: 5-140 microns
Porcelain roller speed: 0-500RPM (maximum speed of discharge roller per minute)
Power configuration: 120W DC motor, stable torque, convenient and safe
Electrical appliance control: touch screen speed adjustment, knob speed adjustment, distance display, speed display
Movement mode: gap adjustment is unilateral operation, and the porcelain roller moves parallel, which is convenient and fast
Size: about L360mm*W190mm*H285mm
Power: 120W, 220V (50Hz)
Weight: about 20kg

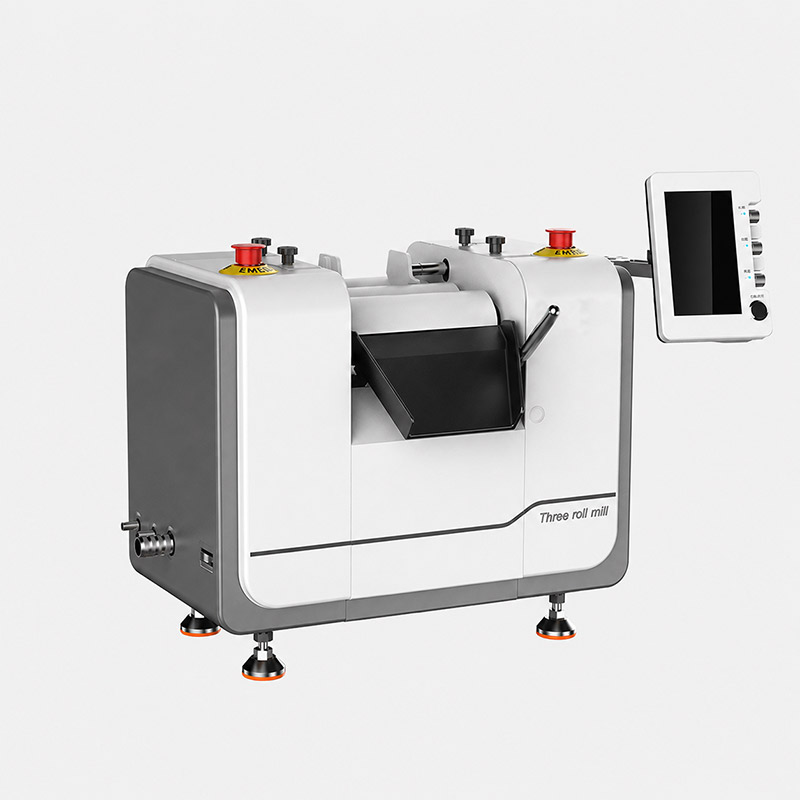

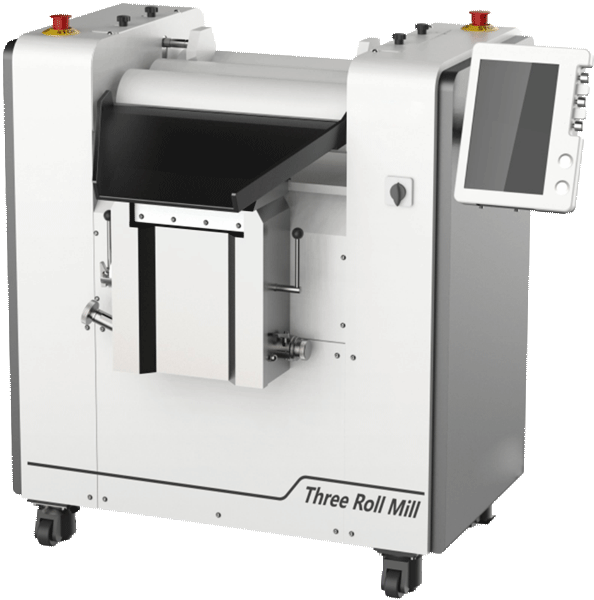

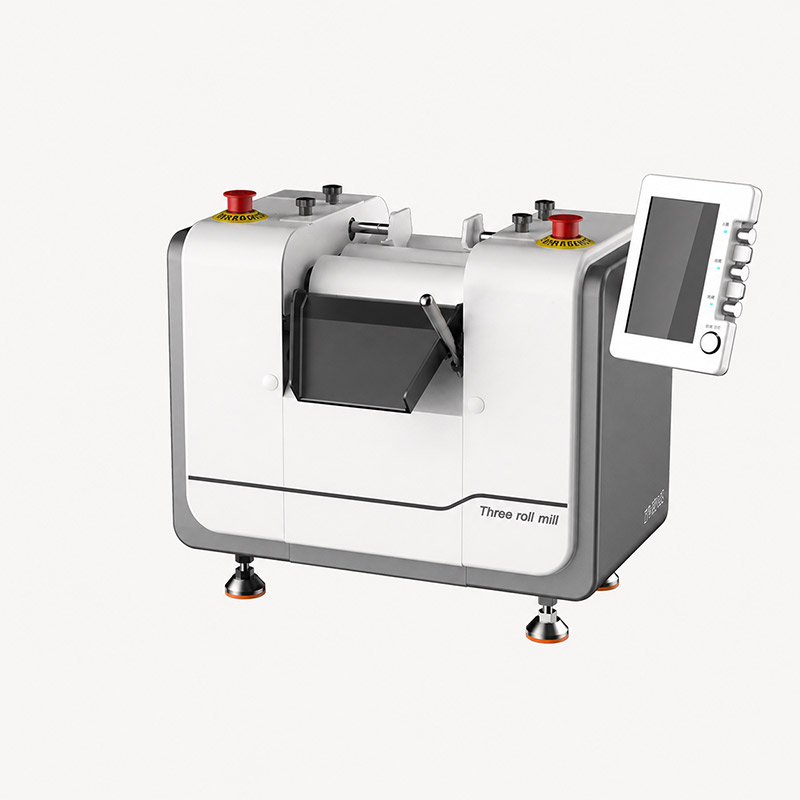

Equipment model: TCTR-80
Ceramic roller material: zirconia/alumina/silicon carbide/silicon nitride, nano-level imported raw material ceramic roller
Porcelain roller specifications: diameter: 80mm ; Length: 200mm
Porcelain roller precision: roller concentricity/straightness less than 2 microns, surface finish less than 0.3 microns
Speed ratio: Speed ratio is 1:3:9
Porcelain roller spacing: 5-140 microns
Porcelain roller speed: 0-500RPM (maximum speed of discharge roller per minute)
Power configuration: 1.5KW servo motor, stable torque, convenient and safe
Electrical control: knob speed adjustment, speed display
Movement mode: gap adjustment is unilateral operation, and the porcelain roller moves parallel, which is convenient and fast
Cooling system: with built-in cooling interface, optional external equipment
Size: about L600mm*W380mm*H495mm
Power: 1.5KW, 220V (50Hz)
Weight: about 75kg
