Ball mill tankSelection guide

From tank structure, material purity, corrosion resistance, chemical compatibility to capacity and grinding ball matching, it helps laboratory and pilot users choose the right ball mill tank at the first time.

View material plan Apply for free grinding sample

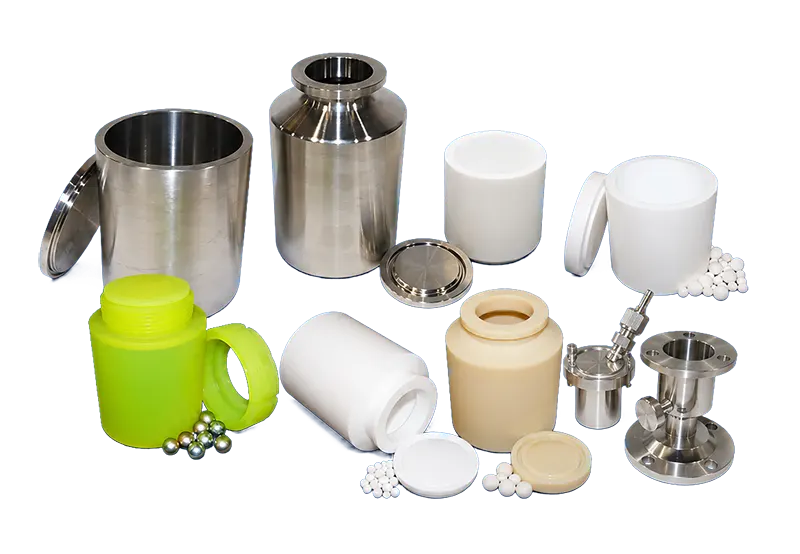

Ball mill tanks of different materials and specifications

9+Commonly used ball mill tank materials

50 mL–25 LLaboratory to pilot scale capacity coverage

Dry grinding / wet grindingMatch according to materials and processes

Vacuum / inert atmosphereSupport customization for special working conditions

STEP 01 · STRUCTURE

First determine the tank structure: vertical or horizontal?

The structure of the ball mill tank must match the movement mode of the equipment. Vertical tanks emphasize sealing and high energy input, while horizontal tanks are more suitable for rollers, bottle rollers and long-term uniform grinding.

High-energy grinding

Vertical ball mill tank

Suitable for planetary, vibrating and other vertical equipment
Reliable sealing, suitable for dry and wet grinding
Optional vacuum cover, atmosphere protection and temperature monitoring
Compact specifications for quick replacement and cleaning

Even mixing

Horizontal ball mill tank

Suitable for roller ball mills and laboratory bottle rollers
Smooth movement, suitable for long-term continuous processing
Large capacity range, easy for pilot scale-up
Optional ceramic, polyurethane and metal linings

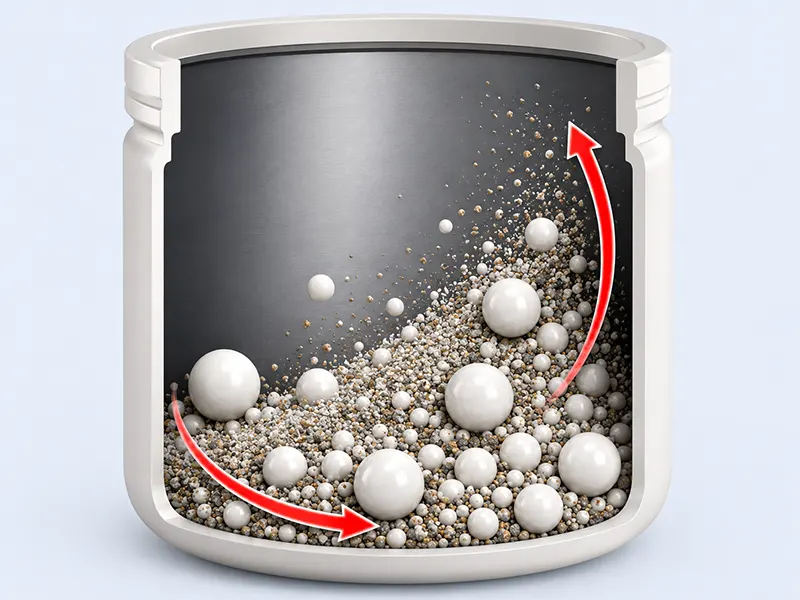

How to complete crushing and mixing in the ball mill tank?

The equipment drives the tank to rotate, swing or vibrate, and the grinding balls impact, rub and shear the material under the combined action of centrifugal force, gravity and inertia.

01Load sample and grinding ballReserve reasonable free space

02Produce impact effectCrush larger particles

03Friction and shear refinementContinuously reduce particle size

04Obtain uniform powderComplete crushing and mixing

5-STEP SELECTION

It is recommended to follow these 5 steps to complete the selection

1Matching equipmentConfirm the movement method and fixture

2Confirm the pollution limitMetal and non-metal pollution boundary

3Compare material hardnessThe tank hardness is higher than the material

4Check chemical compatibilityAcid, alkali, solvent and temperature rise

5Determine capacity and processCharging amount, ball-to-material ratio and atmosphere

STEP 02 · MATERIAL

Select materials according to "pollution, hardness, corrosion, atmosphere"

No ball mill tank is suitable for all samples. Prioritize what is allowed to be introduced into the sample, how hard the material is, whether corrosive media will be used, and whether a vacuum or inert atmosphere is required.

01 / Contamination restrictions

What samples are allowed to be brought in?

The upper limit for the introduction of metallic elements, oxides or organic matter.

02 / Material hardness

Can the tank hold up?

The hardness of the tank and grinding balls should be higher than the material to be ground.

03 / Chemical Environment

Are acids, bases and solvents compatible?

Wet grinding media may change material stability.

04 / Atmosphere requirements

Are you afraid of oxygen or water?

Use a vacuum tank or inert atmosphere for protection if necessary.

Low pollution

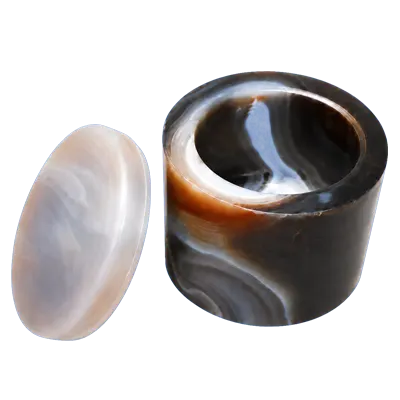

Agate ball mill tank

Stable ingredients and delicate surface, suitable for high-purity samples.

Recommendation: Medium and low hardness, pollution-sensitive materials

Wear-resistant and impact-resistant

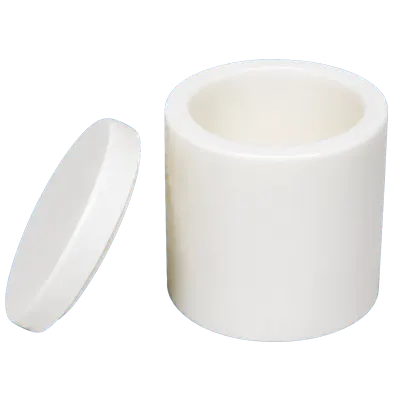

Zirconium oxide ball mill tank

High hardness, good toughness, taking into account efficiency and purity.

Recommendation: high hardness ceramics and electronic powder

Economic and durable

304 stainless steel ball mill tank

High strength, impact resistance, wide range of specifications and capacities.

Note: Fe / Cr / Ni will be introduced

Strong corrosion resistance

Polytetrafluoroethylene ball mill tank

Chemically stable, non-stick, suitable for acid, alkali and solvent systems.

Suggestion: low-speed wet grinding and corrosive materials

Lightweight and economical

Nylon ball mill tank

Light weight, moderate cost, and friendly to equipment load.

Suggestion: Soft samples and daily mixing

Elastic and wear-resistant

Polyurethane ball mill tank

Good toughness, low noise, reducing metal contact pollution.

Recommendation: roller mixing grinding and medium and low hardness materials

High hardness and wear resistance

Corundum ball milling tank

High hardness, good wear resistance and wide application range.

Recommendation: Ceramics, minerals and inorganic powders

Super hard and efficient

Cemented carbide ball mill tank

High density and hardness, which can strengthen impact crushing.

Note: W, Co and other components may be introduced

Atmosphere protection

Vacuum ball mill tank

Evacuate or fill with inert gas through the valve group.

Key: valves, seals and pressure levels

Important reminder: "Low pollution" does not mean "zero pollution". Before formal selection, it is recommended to conduct real material grinding samples and perform element or component testing on the ground samples.

STEP 03 · CAPACITY & PROCESS

The larger the capacity, the better: it must match the single batch sample volume and equipment

First confirm the tank shape, single tank mass and rotational speed range allowed by the equipment, and then infer the tank capacity based on the sample volume, ball-to-material ratio and free space.

50 mL

100 mL

250 mL

500 mL

1 L

2 L

5 L

10 L

25 L

Filling space: a movement area must be left

Free space

Grinding ball/medium

Material and liquid phase

It is recommended to start with small-scale parameters and then gradually optimize

Record the actual loading amount of each batch

Adjust the ball-to-material ratio according to the target particle size

Monitor the temperature rise and grinding time

Check the total mass of the tank when enlarging

Vertical ball mill tank model parameters

Changsha Tianchuang ball mill tank provides a variety of types and models, which can be selected according to the grinding volume, and can be customized according to customer special requirements.

Parameters/name	304 stainless steel ball mill tank	Zirconium oxide ball mill tank	Corundum ball milling tank	Agate ball mill tank	Nylon ball mill tank	Polyurethane ball mill tank	Cemented carbide ball mill tank	Polytetrafluoroethylene ball mill tank	Vacuum ball mill tank
Model specifications	100ml-25L	50ml-3000ml	50ml-3000ml	50ml-2000ml	100ml-25L	100ml-1000ml	50ml-1000ml	100ml-25L	50ml-25L
Outer diameter (mm)	Φ75-Φ320	Φ55-Φ158	Φ56-Φ172	Φ65-Φ156	Φ68-Φ320	Φ66-Φ135	Φ55-Φ128	Φ68-Φ320	Φ78-Φ345
Height (mm)	70-365	38-225	70-218	57-170	76-424	77-140	38-108	76-424	55-350

Horizontal ball mill tank model parameters

Changsha Tianchuang ball mill tank provides a variety of types and models, which can be selected according to the grinding volume, and can be customized according to customer special requirements.

Parameter name	Roller stainless steel ball mill tank	Roller corundum ball mill tank	Roller nylon ball mill tank	Roller ceramic ball mill tank	Roller polyurethane ball mill tank	Roller PTFE ball mill tank
Model specifications	500ml-15L	500ml-10L	500ml-20L	500ml-20L	500ml-20L	500ml-20L
Outer diameter (mm)	Φ88-Φ271	Φ106-Φ230	Φ108-Φ298	Φ105-Φ290	Φ90-Φ320	Φ108-Φ298
Height (mm)	138-350	140-350	127-459	140-350	135-370	135-459

DRY / WET

Dry grinding or wet grinding?

Dry grinding facilitates powder recovery; wet grinding helps dispersion and temperature control, but solvents, seals and subsequent drying conditions must be checked.

ATMOSPHERE

Vacuum / inert atmosphere

Samples that are easily oxidized, absorb water or are active should use vacuum tanks with valves, and check the vacuuming, filling and pressure-maintaining processes.

SAFETY

Temperature rise and sealing safety

Wet grinding and long-term operation may produce temperature rise and internal pressure. A safe space must be reserved and the speed, time and pressure must be controlled.

EQUIPMENT MATCHING

Match the ball mill tank according to the equipment movement mode

Planetary ball mill

High energy input and obvious combined movement require strict matching of tank size, total mass and clamping structure.

Laboratory drum ball mill

Emphasis on smooth rolling and long-term mixing, focusing on checking the tank diameter, length, load-bearing and roller spacing.

STEP 04 · GRINDING MEDIA

The grinding ball and the tank must be considered as a complete set

The material of the grinding ball determines the source of impact energy and wear; the combination of ball diameter affects the coarse particle crushing, refinement efficiency and final particle size distribution.

Stainless steel ballHigh density · impact resistance

Zirconium oxide ball High hardness · low pollution

Agate ball Stable · Delicate surface

Aluminum oxide ballWear-resistant and versatile

Polyurethane-coated ballLow noise · Tank protection

Cemented carbide ballUltra-high hardness and high energy

Product name	Material composition	Main technical parameters	Comprehensive description
Stainless steel grinding ball	304 Or 316 stainless steel	Density is about 7.9 g/cm³ HRC 20–30 Φ1–30 mm, can be customized	Key features:Economic and versatile, moderate impact, with certain corrosion resistance. Recommended applications: Conventional chemical raw materials, ceramic glazes, soil, alloy powders and teaching tests. Usage Note:Do not use it on high-purity materials that are sensitive to Fe, Cr, and Ni such as lithium batteries and electronic ceramics.
Zirconium oxide grinding balls	Yttrium stabilized zirconia ZrO₂	Density 6.0 g/cm³ HV ≥ 1250, Mohs ≥ 8.5 Abrasion ≤ 0.01 Φ0.1–30 mm	Key features:High purity, low pollution, high hardness, high wear resistance, suitable for ultra-fine grinding. Recommended applications: Lithium battery positive and negative electrodes, electronic ceramics, pharmaceutical and food grade powders and high-end pigments. Usage Note:It is recommended to use a zirconia ball mill tank; the color of different batches may be slightly different.
Agate grinding ball	Natural agate SiO₂	Density about 2.65 g/cm³ Mohs level 7 Φ3–20 mm	Key features:Natural inorganic, low background pollution, chemically stable and not easy to stick to materials. Recommended applications: Geological, environmental, agricultural, food and pharmaceutical testing sample preprocessing. Usage Note:Not suitable for high-hardness materials such as corundum and silicon carbide; avoid severe impact.
Corundum/alumina grinding balls	High purity alumina Al₂O₃ > 90%	Density 3.6–3.9 g/cm³ Mohs grade 9 Φ1–50 mm	Key features:High hardness, high cost performance, high temperature resistance and corrosion resistance. Recommended applications: Ceramic glazes, refractory materials, quartz, feldspar and conventional non-metallic minerals. Usage Note:Al element will be brought in; it is more brittle than zirconia, so be careful to avoid falling and impact.
Polyurethane-coated iron core grinding ball	Cast iron/steel core + wear-resistant polyurethane outer layer	Overall density is about 3.5–5.5 g/cm³ Shore A 80–95° Φ15–30 mm	Key features:Cushioning, noise reduction, solvent resistance, taking into account the weight of the sphere and gentle shearing. Recommended applications: Homogenous dispersion of pigments, inks, coatings, battery slurries and electronic slurries. Usage Note:Not suitable for crushing high-hardness materials; the outer layer should be replaced in time after the outer layer is worn through and the iron core is exposed.
Cemented Carbide Grinding Ball	Tungsten Carbide – Cobalt WC–Co	Density 14.5–15.0 g/cm³ HRA 88–93 Extremely low wear and can be customized	Key features:High density, high impact energy, strong wear resistance, suitable for difficult-to-wear materials. Recommended applications: Silicon carbide, boron carbide, artificial diamond and high-hardness ceramics and metal powders. Usage Note:The cost is relatively high; it is recommended to use it with a cemented carbide ball mill tank.
