STIRRED BALL MILL SELECTION GUIDE

Stirred Ball Mill Selection Guide

From equipment capacity, jar material, and grinding media to process parameters, build a complete selection path tailored to your material properties.

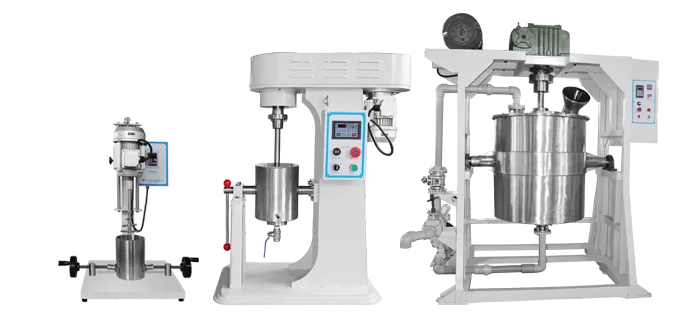

Laboratory R&DPilot-Scale Scale-UpIndustrial ProductionCustomization Available

Key Selection Factors

ThroughputMaterial volume per
run or batch

Target Particle SizeRequired particle-size
specification

Material PropertiesHardness, density, viscosity,
corrosiveness, etc.

Dry/Wet MillingProcess requirements determine
the milling method

Temperature ControlWhether cooling or constant
temperature control is required

1. Stirred Ball Mill Model Selection

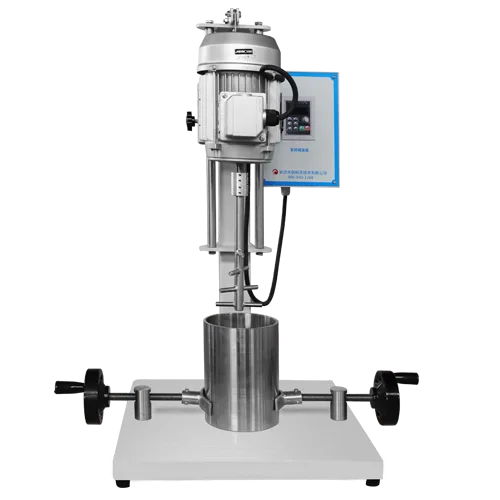

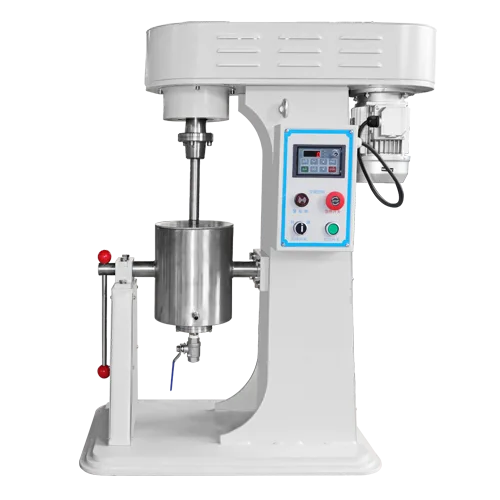

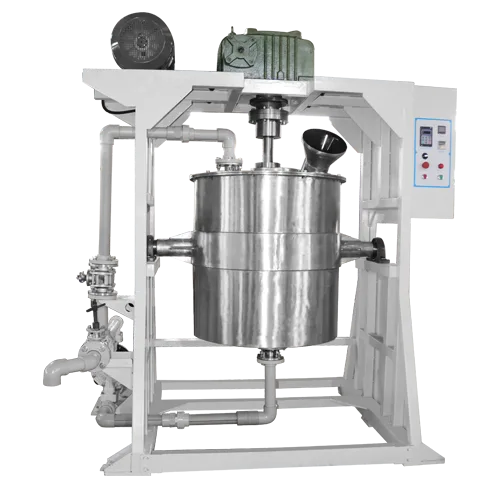

Select laboratory, pilot-scale, or industrial equipment based on single-batch throughput, target fineness, and production cycle time.

II. Equipment Material Selection

Material-contact components should balance wear resistance, chemical compatibility, and contamination-control requirements.

Material

Stainless Steel

Alumina Ceramic

Zirconia

Polyurethane

PTFE / Nylon

Wear Resistance

Medium

Excellent

Extremely High

Good

Medium

Corrosion Resistance

Good (resists standard acids and alkalis)

Excellent (resists strong acids and alkalis)

Excellent (high corrosion resistance)

Good (resists organic solvents)

Excellent (resists most acids and alkalis)

Compatible Materials

Medium- to low-hardness, generally abrasive materials

High-purity, contamination-sensitive materials

High-hardness, fine powders

Low-hardness, sticky, agglomeration-prone materials

Corrosive and specialty materials

Typical Applications

Minerals, metals, ceramics, and general chemicals

Electronic materials, nanomaterials, and pharmaceuticals

Battery materials and electronic ceramics

Food, coatings, and viscous materials

Lithium battery materials, inorganic powders, and catalysts

Selection Guidance

Economical and versatile, with strong value

Preferred for high-purity requirements

Ideal for high-energy and ultrafine grinding

Low wear and reduced contamination

Corrosion resistant with longer service life

Material Selection
Tips

Avoid ContaminationFor high-purity powders, prioritize alumina or zirconia components.

Match HardnessThe harder the material, the more wear-resistant the equipment material should be to extend service life.

Consider CorrosionFor strong acid or alkali environments, choose corrosion-resistant materials.

Balance Cost and Service LifeEvaluate procurement costs together with long-term operating efficiency.

III. Selecting Agitation Speed and Grinding Media

Appropriate agitation speed, slurry viscosity, and grinding-media material directly affect grinding efficiency, temperature-rise control, and the final particle-size distribution. Scientifically matching process parameters with media combinations is key to consistently achieving the desired grinding result.

Principle of Stirred Grinding

Agitator ShaftDrives the grinding media to generate shear, impact, and collision, creating a high-efficiency energy field.

Grinding ChamberAn enclosed grinding space that provides an effective interaction environment for the media and material.

Grinding MediaUnder agitation, the media create impact, compression, and shear to reduce particle size.

Schematic of the stirred-grinding principle

Material SlurryThe material and media are thoroughly mixed to form a stable slurry for efficient grinding.

Cooling JacketRecirculating cooling water removes grinding heat, controls temperature rise, and protects material performance.

Energy
Transfer Modes

Shear ActionRelative motion between the media and material generates intense shear that promotes dispersion.

Impact ActionHigh-speed media impact the material, breaking agglomerates and refining the particles.

Attrition ActionRolling and collision between media produce combined energy effects that improve grinding efficiency.

Agitation-Speed Selection Guide

Low-Speed Pre-Dispersion

Suitable for: Severely agglomerated, foam-prone, high-viscosity slurries
Advantages: Low temperature rise, less foaming, and protection for sensitive materials
Notes: Lower dispersion efficiency and a relatively longer processing time

Conventional Medium-Speed Grinding

Suitable for: Grinding most conventional materials
Advantages: Balances efficiency and energy consumption with a uniform particle-size distribution
Notes: Optimize speed according to slurry viscosity and filling ratio

High-Speed, High-Energy Refinement

Suitable for: Ultrafine processing and difficult-to-grind materials
Advantages: High grinding efficiency and finer particle size
Notes: Temperature rise is higher; monitor cooling and wear

Temperature-Controlled Operation for Heat-Sensitive Materials

Suitable for: Biological products and oxidation-prone or heat-sensitive materials
Advantages: Effectively controls temperature rise and preserves material activity
Notes: Use with a cooling jacket and an appropriate agitation speed

Recommended Common Grinding-Media Materials

Zirconia Media

Density: 7.0 g/cm³
Features: High hardness, excellent wear resistance, and low contamination
Suitable Materials: Advanced materials, electronic ceramics, and lithium-ion battery cathode materials

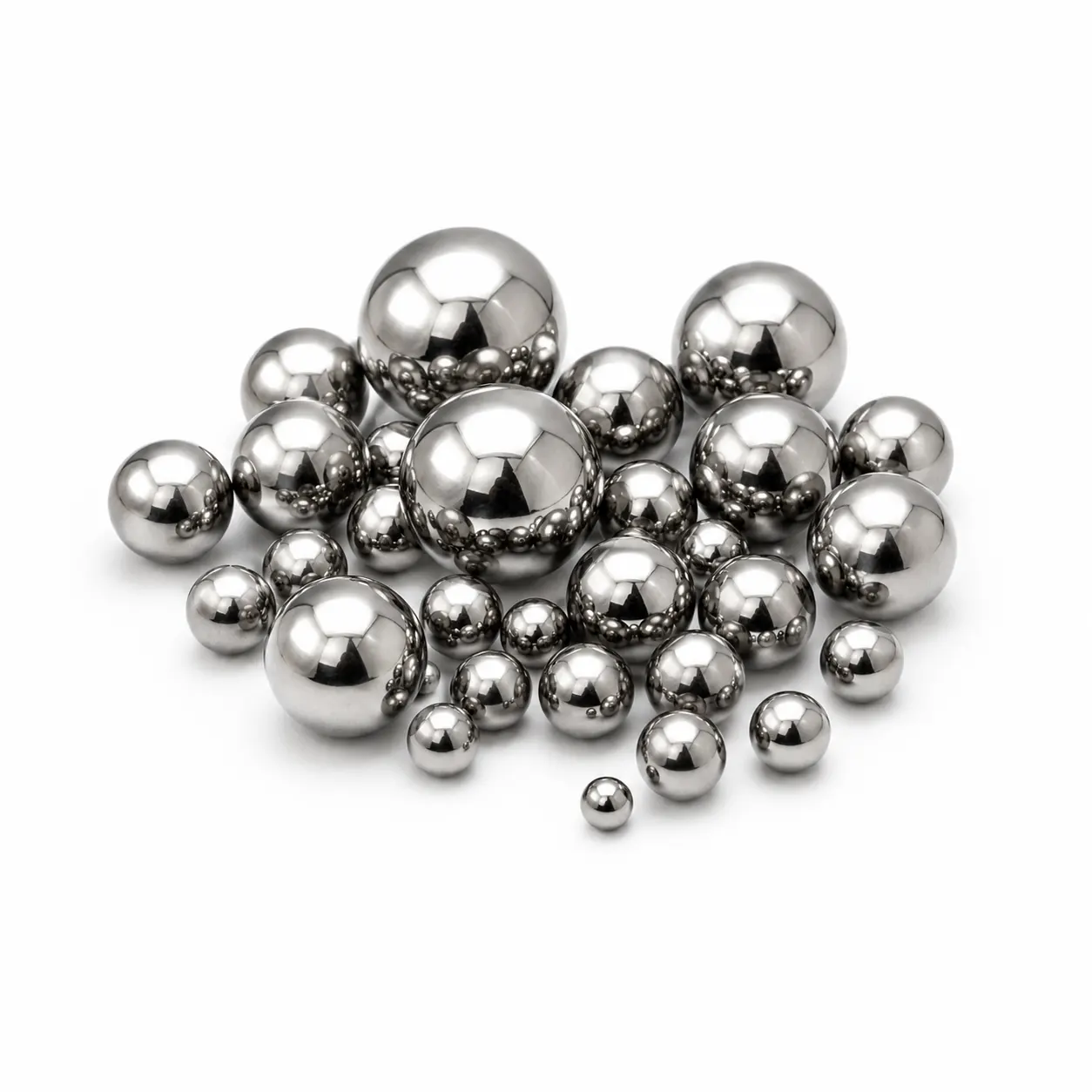

Stainless Steel Media

Density: 7.8 g/cm³
Features: High strength, good durability, and economical performance
Suitable Materials: General metal materials, minerals, and pigments

Alumina Media

Density: 3.9 g/cm³
Features: High hardness, high-temperature resistance, and moderate cost
Suitable Materials: Ceramics, refractory materials, and electronic powders

Agate Media

Density: 2.6 g/cm³
Features: Low wear, low contamination, and broad adaptability
Suitable Materials: High-purity oxides, nanomaterials, inks, and coatings

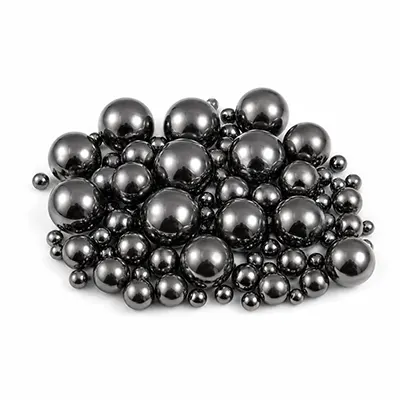

Tungsten Carbide Media

Density: 14.9 g/cm³
Features: High hardness, impact resistance, and high grinding efficiency
Suitable Materials: Cemented carbides, difficult-to-grind metals, and hard materials

Polyurethane/Nylon Media

Density: 1.0–1.2 g/cm³
Features: Lightweight, low-noise, and resistant to breakage
Suitable Materials: Soft materials, low-density materials, and wear-sensitive materials

Process Tips

Optimal Filling RatioA filling ratio of 50%–80% is recommended. Too little media reduces efficiency, while too much increases resistance and wear.

Slurry-Viscosity ControlExcessive viscosity impedes media movement and dispersion; reduce viscosity as appropriate.

Cooling Recommended for Heat-Sensitive SamplesEffectively removes grinding heat, controls temperature rise, and maintains stable material performance.

For High PurityGive priority to high-purity grinding media to avoid introducing impurities that affect material purity.

IV. Grinding-Media Size and Size-Grading Selection

Match the media diameter and size blend to the target particle size, the material’s initial particle size, and the equipment’s energy density.

Particle-Size Range (Target Size)Recommended Media-Diameter RangeTypical Target FinenessCharacteristics and Notes

Coarse Particles（>45μm）

2 – 4 mm

Above 45μm

Primarily impact breakage; suitable for pre-grinding large particles or producing coarse powders.

Medium Particles（10–45μm）

1 – 3 mm

10 – 45μm

Balances impact and shear for higher efficiency and a more uniform particle-size distribution.

Fine Particles（1–10μm）

0.5 – 1 mm

1 – 10μm

Primarily shear grinding; suitable for fine-powder production and particle-size control.

Ultrafine Powder（0.1–1μm）

0.3 – 0.8 mm

0.1 – 1μm

Requires higher-frequency shear with appropriate dispersants and cooling to control temperature rise.

iNote: In practice, a multi-size media blend (for example, 2–4 mm + 1–3 mm + 0.5–1 mm) is recommended to provide broader particle-size coverage and higher grinding efficiency.

V. Key Points for Dry and Wet Grinding

Dry Grinding

Suitable MaterialsLow-moisture, readily ground, or heat-insensitive powders, such as minerals, metals, and some ceramic powders.

AdvantagesSimple process, no wastewater treatment, easy powder storage, and relatively easy downstream dispersion.

NotesCan generate dust and heat; control the upper particle-size limit. Not suitable for materials prone to agglomeration or highly heat-sensitive materials.

Typical ApplicationsProduction and modification of coarse and fine powders, including quartz, feldspar, calcium carbonate, refractories, and metal powders.

Wet Grinding

Suitable MaterialsHigh-hardness, agglomeration-prone, heat-sensitive, or nanoscale materials, such as lithium-ion battery materials, ceramic powders, and pigments.

AdvantagesGood heat dissipation, smaller particles, and a narrow distribution; readily achieves nanoscale fineness and is suitable for continuous production.

NotesControl slurry viscosity and solids content; select dispersants carefully and remove cleaning residues to prevent clogging.

Typical ApplicationsLithium-ion battery cathode and anode materials, electronic ceramic powders, nano-oxides, high-performance pigments, and coatings.

VI. Selection Guidance for Different Material Systems

Mineral/Ceramic Powders

Material Properties: High hardness and strong abrasiveness
Recommended Media: Zirconia beads and alumina beads
Recommended Cooling: Recirculating water cooling
Grinding Method: Primarily wet grinding

Battery Materials

Material Properties: High fineness requirements and a strong tendency to agglomerate
Recommended Media: Zirconia beads
Recommended Cooling: Low-temperature water cooling (≤25℃)
Grinding Method: Wet grinding with dispersant assistance

Pigments and Coatings

Material Properties: Strict color requirements and a tendency to agglomerate
Recommended Media: Zirconia beads
Recommended Cooling: Recirculating water cooling
Grinding Method: Wet grinding with a low-viscosity slurry

Heat-Sensitive or High-Purity Materials

Material Properties: Heat sensitivity or high-purity requirements
Recommended Media: Zirconia beads
Recommended Cooling: Low-temperature water cooling (≤20℃)
Grinding Method: Wet grinding; an inert atmosphere is optional

Applications

Lithium-Ion Battery MaterialsNanoscale preparation of cathode, anode, and separator-coating slurries

Electronic CeramicsHigh-purity ultrafine powders for MLCCs, LTCCs, and structural ceramics

Mineral PowdersFine processing and modification of quartz, feldspar, calcium carbonate, and similar materials

Pharmaceutical IntermediatesRefinement and dispersion of active pharmaceutical ingredients and intermediates

Inks and PigmentsFineness and dispersion control for high-performance pigments and color pastes

NanomaterialsPreparation of nano-oxides, conductive materials, and functional materials

VII. Customization Options

Configure specialized features around feeding, temperature control, atmosphere, discharge, and automation requirements.

Continuous Feeding and Discharge

Adapted to continuous production cycles.

Automatic Feeding System

Improves feeding accuracy and consistency.

Intelligent Control

Recipe parameter storage and process monitoring.

Temperature Control System

Cooling, thermal insulation, or low-temperature grinding.

Atmosphere Protection

Vacuum or inert-gas protection.

Custom Vessel Materials

Meets wear-resistance, corrosion-resistance, and purity requirements.
