Drum Ball Mill Selection Guide

1. Drum Ball Mill Model Selection

Select the appropriate model based on your test requirements and material properties.

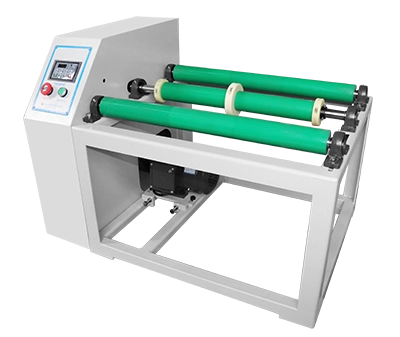

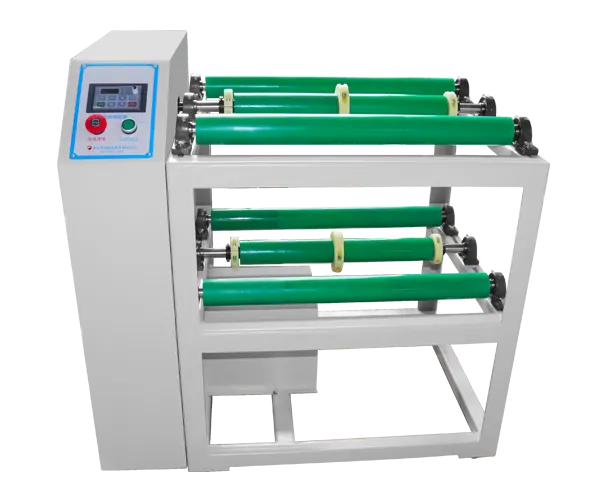

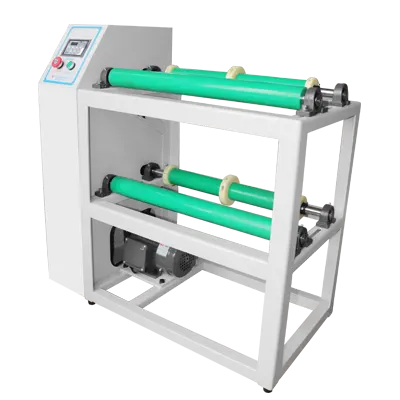

Jar Mill

Model2 / 4 / 8 Stations (GQM-2-5~8-15)Capacity (L)(0.5-20L)xN

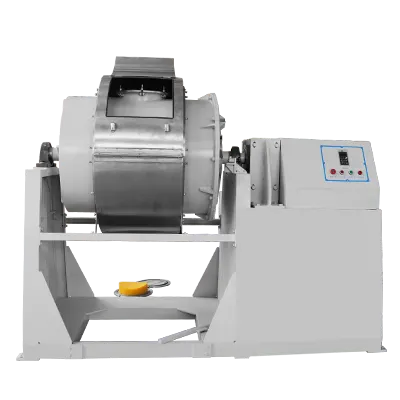

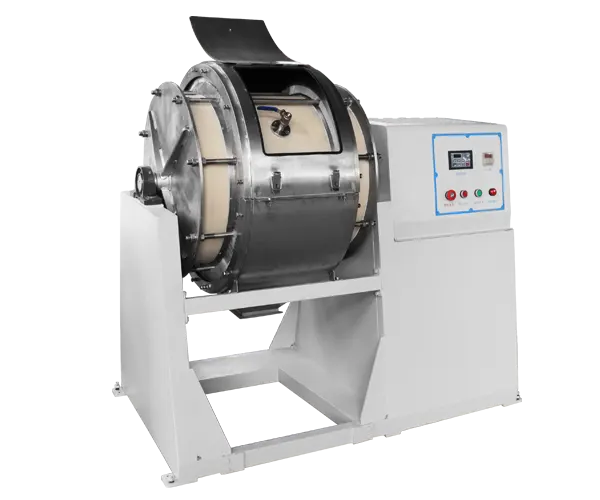

Light-Duty Drum Ball Mill

ModelQM-25L~2000LCapacity (L)25-2000L

Model Category	Capacity (L)	Rotational Speed (RPM)	Loading Capacity	Motor Power (kW)	Key Features	Feed Size (mm)	Final Fineness (mesh)	Applications

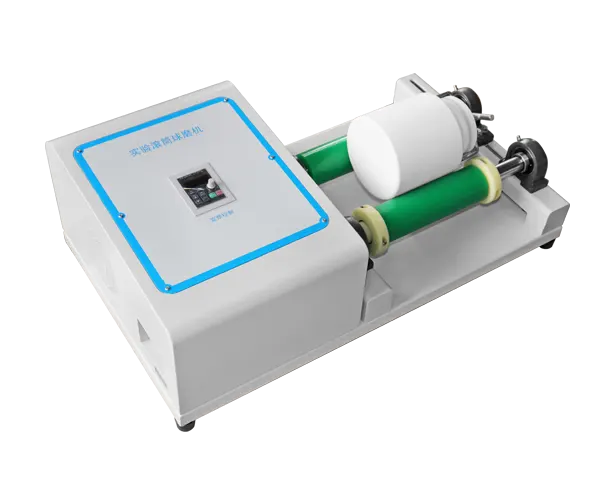

Laboratory Drum Ball Mill	0.5-15	50–100	0.33-5	0.37–0.75	Small batches, high precision	≤5~20	≤300 (Some materials can be ground finer than 1,000 mesh)	Laboratory testing and research
Jar Mill	(0.5-20L)×N	40–100	(0.33-6.6)×N	0.75–2.2	Moderate, stable throughput	≤5~20	≤300 (Some materials can be ground finer than 1,000 mesh)	Pilot-scale production
Production Drum Ball Mill	25-2000	20-60	8.3-666.6	0.75–22	High capacity, high efficiency	≤5-20	≤300 (Some materials can be ground finer than 1,000 mesh)	Large-scale industrial production

2. How a Drum Ball Mill Works

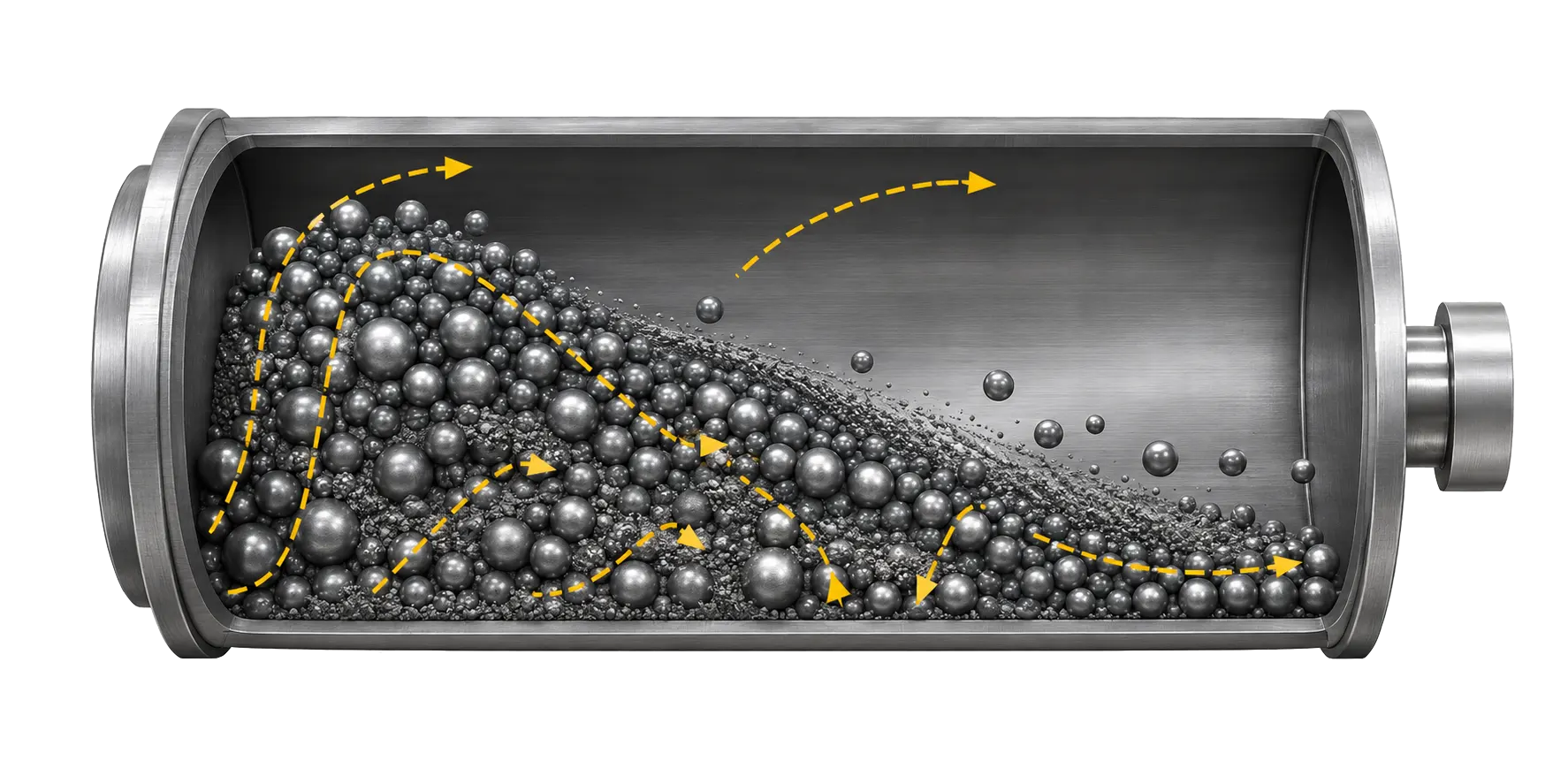

Operating Principle

The motor rotates the drum around a horizontal axis. Centrifugal force and gravity lift the grinding media to a certain height before they cascade or roll down, applying impact, shear, and attrition forces that progressively reduce the material to the required fineness.

1Material ChargingSet the Batch Load

2Drum RotationSet the Appropriate Speed

3Media LiftingGenerate Cascading Motion

4Impact GrindingComplete Size Reduction

5Product DischargeSeparate the Grinding Media

Dry Grinding

Ideal for moisture-sensitive materials, producing low-moisture powder with good screenability.

Wet Grinding

Ideal for ultrafine grinding and high-viscosity materials; improves grinding efficiency and suppresses airborne dust.

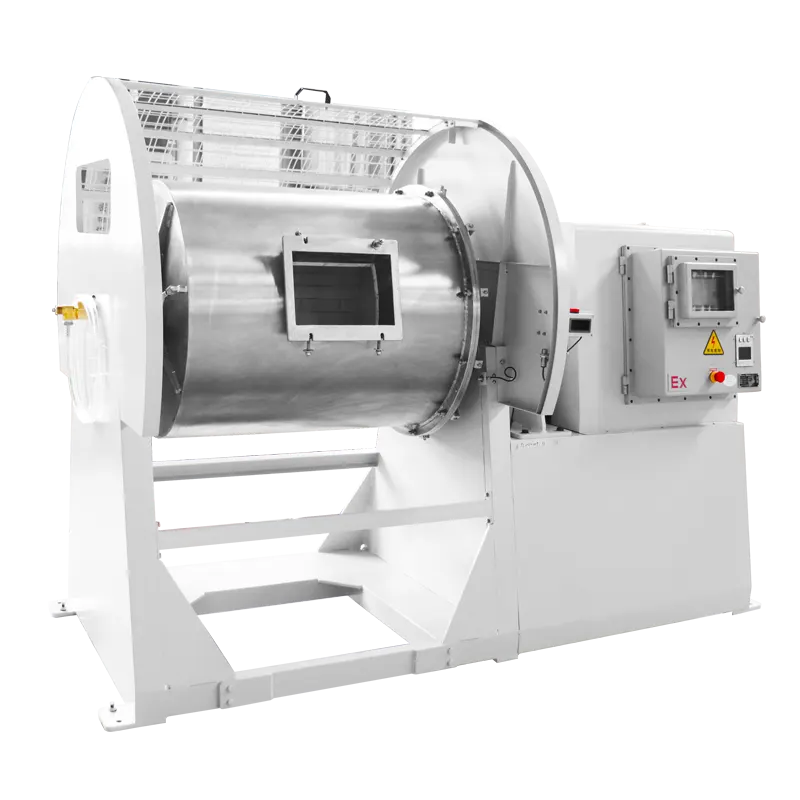

3. Equipment Size (Grinding Jar Capacity) Selection

Recommended Sizing FormulaA=C/ρ×3

A: Required Equipment Volume (Grinding Jar Capacity) (L)

C: Mass of Material per Batch (kg)

ρ: Material Bulk Density (kg/L)

For standard operation, keep the material charge at approximately one-third of the drum's effective volume.

01

Determine Material PropertiesIdentify hardness, particle size, and bulk density

02

Determine Bulk DensityEstimate the batch load from the bulk density

03

Calculate Equipment CapacityApply the formula to determine the theoretical capacity

04

Select the Appropriate ModelSelect the equipment based on the calculated capacity

4. Grinding Jar Liner Material Selection

Select the liner according to the material's chemical properties, grinding media characteristics, budget, and contamination-control requirements.

01Ceramic Liner

Excellent wear and corrosion resistance with minimal contamination; ideal for oxides and high-purity materials.

Typical Materials: Alumina, zirconia, silicon carbide

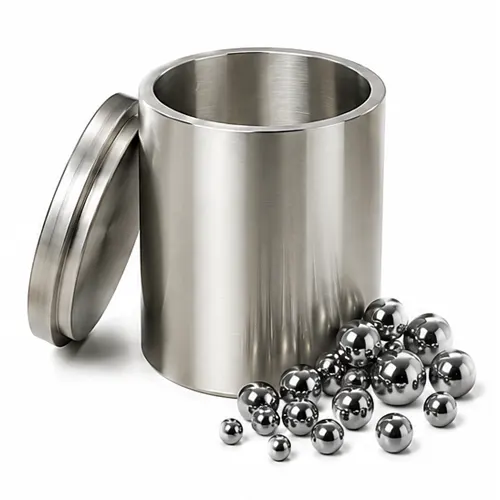

02Metal Liner

High strength, excellent impact resistance, and economical; suitable for general industrial materials.

Typical Materials: Stainless steel, manganese steel, hardened steel

03Polymer Liner

Lightweight, acid- and alkali-resistant, and low-noise; suitable for metal-sensitive and specialty materials.

Typical Materials: Nylon, polyurethane, PE, etc.

5. Grinding Media Selection

Grinding media should be matched to the material hardness, allowable contaminant elements, target fineness, and required process energy. The following parameters provide a practical basis for preliminary drum-mill media selection.

Grinding Media Type	Material and Key Specifications	Selection Guidelines
Stainless Steel Grinding Balls	304 / 316 Stainless Steel Approx. Density: 7.9 g/cm³ Hardness: HRC 20–30 Common Diameter: Φ1–Φ30 mm	Core Properties: Cost-effective and versatile, with good impact energy and moderate corrosion resistance; suitable for conventional coarse grinding and intermediate size reduction.Recommended Applications: Chemical raw materials, ceramic glazes, soils, alloy powders, teaching laboratories, and process development.Limitations: May introduce Fe, Cr, Ni, and other metallic contaminants; not recommended for high-purity systems such as lithium-ion battery materials, electronic ceramics, and premium catalysts.
Zirconia Grinding Balls	Yttria-Stabilized Zirconia (YSZ) ZrO₂ Approx. Density: 6.0 g/cm³ Vickers Hardness: HV ≥1250; Mohs Hardness: ≥8.5 Common Diameter: Φ0.1–Φ30 mm	Core Properties: High hardness, low wear, and excellent purity; ideal for efficient fine grinding.Recommended Applications: Lithium-ion battery materials, electronic ceramics, pharmaceutical-grade powders, and high-performance pigments.Limitations: Pair with a zirconia liner or grinding jar to maximize its low-contamination performance.
Agate Grinding Balls	Natural Agate SiO₂ Approx. Density: 2.65 g/cm³ Mohs Hardness: Approx. 7 Common Diameter: Φ3–Φ20 mm	Core Properties: Excellent chemical inertness and a smooth surface; suitable for analytical sample preparation.Recommended Applications: Geological, environmental, and agricultural sample preparation, as well as food and pharmaceutical testing.Limitations: Relatively brittle; unsuitable for grinding corundum, silicon carbide, and other high-hardness materials.
Corundum / Alumina Grinding Balls	High-Purity Alumina Al₂O₃ >90% Density: 3.6–3.9 g/cm³ Mohs Hardness: Approx. 9 Common Diameter: Φ1–Φ50 mm	Core Properties: High hardness with excellent heat and corrosion resistance; a cost-effective ceramic grinding medium.Recommended Applications: Ceramic glazes, refractories, quartz, feldspar, and conventional nonmetallic mineral grinding.Limitations: May introduce aluminum; unsuitable where Al contamination is restricted, and impact intensity should be controlled.
Polyurethane-Coated Iron-Core Balls	Cast-Iron / Steel Core + Wear-Resistant PU Coating Overall Density: Approx. 3.5–5.5 g/cm³ Outer-Coating Hardness: Shore A 80–95° Common Diameter: Φ15–Φ30 mm	Core Properties: Elastic cushioning and low noise; ideal for gentle dispersion and homogenization.Recommended Applications: Pigment, ink, and coating pre-dispersion, as well as battery and electronic slurries.Limitations: Not suitable for crushing high-hardness materials; replace promptly when the PU coating wears through and exposes the core.
Tungsten Carbide Grinding Balls	Tungsten Carbide–Cobalt WC–Co Density: 14.5–15.0 g/cm³ Hardness: HRA 88–93 Ball Diameter: Customizable for the Process	Core Properties: High density and hardness, delivering intense impact energy and outstanding wear resistance.Recommended Applications: High-energy grinding of ultrahard materials such as silicon carbide, boron carbide, and synthetic diamond.Limitations: Relatively expensive; use with a tungsten carbide liner and assess the potential compositional impact of WC–Co.

Hardness CompatibilityThe grinding media should be significantly harder than the material to maintain grinding efficiency and minimize impurities caused by media wear.

Purity FirstFirst determine whether the product is sensitive to iron, aluminum, cobalt, or other elements. High-purity systems should use low-wear, chemically inert media.

Density Determines Impact EnergyHigh-density balls are better for brittle and high-hardness materials, while low-density or elastic balls are better for mixing, dispersion, and gentle processing.

Ball Size DistributionA blend of two or three ball sizes is commonly used: large balls provide impact breakage, while small balls increase contact area and improve fine-grinding uniformity.

Total Cost of OwnershipIn addition to purchase price, evaluate wear rate, replacement frequency, contamination risk, and final-product consistency. Conduct a laboratory trial when necessary.
