How do you choose a ball mill that meets your experimental needs?
Match laboratory equipment for crushing, mixing, dispersion and mechanical alloying by considering the motion mode, sample properties, feed and discharge size, throughput and contamination control.
01 · WORKING PRINCIPLE
By rotating, revolving, vibrating or stirring the jar, a ball mill causes the grinding media to impact, rub, shear and compress the sample, reducing particle size and achieving uniform mixing.
Different motion paths create different impact frequencies, shear ratios and temperature-rise levels, making motion the first criterion in equipment selection.

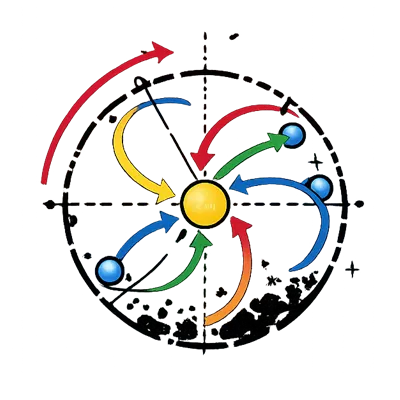

The grinding jar revolves while rotating on its own axis,
creating high-speed impact grinding

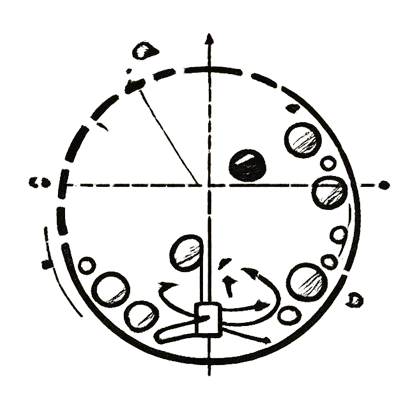

The grinding jar rotates about its own axis,
and the media roll against the jar wall

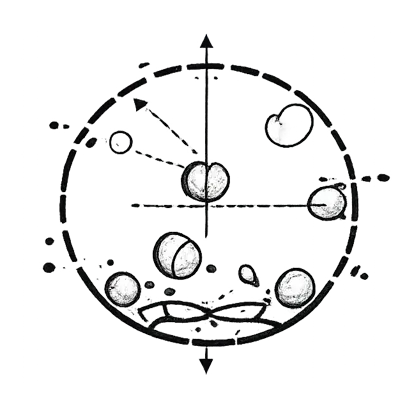

The grinding jar vibrates at high frequency, while media inside the jar
deliver rapid impact grinding

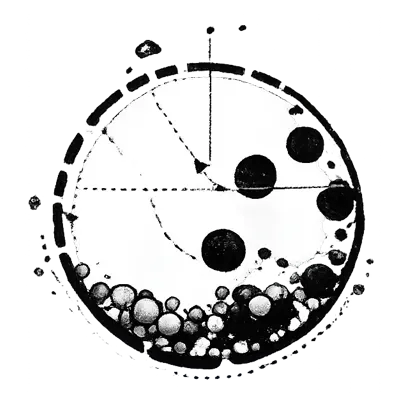

Grinding media are driven by the agitator
to create intensive shear, mixing and grinding

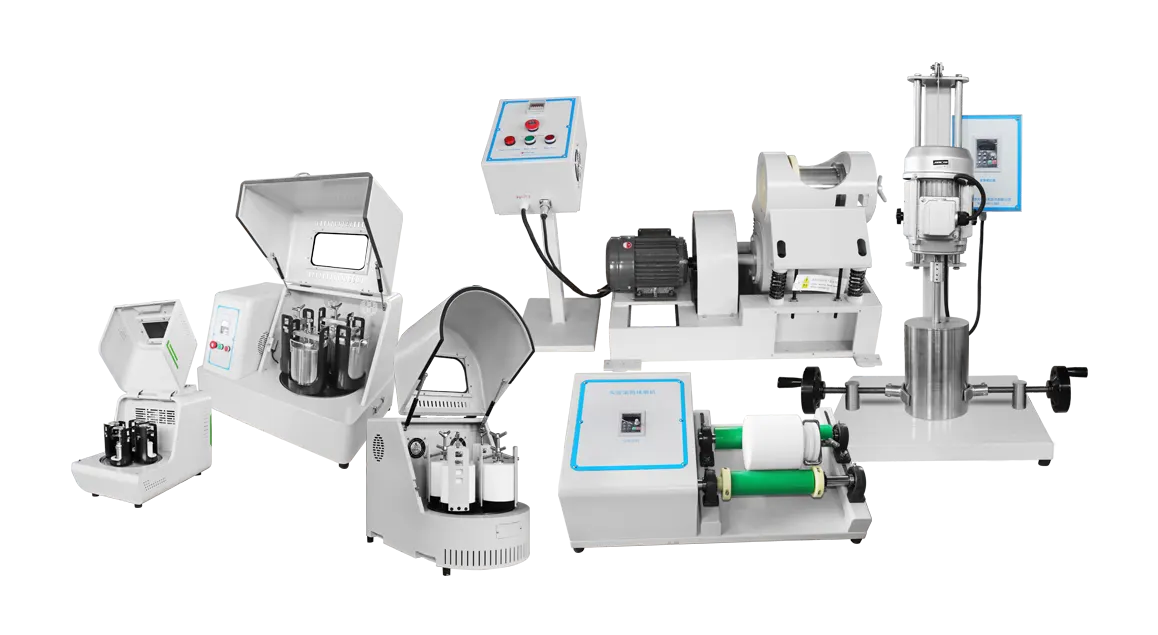

02 · MACHINE TYPES
Select the right model according to sample batch size, target fineness, energy input, temperature rise and continuity requirements.
High energy density and rapid refinement make it suitable for nanopowders and mechanical alloying.
Stable motion and flexible capacity make it suitable for long-duration mixing and small-to-medium batch grinding.
High-frequency vibration intensifies impact for rapid preparation of small batches of hard, brittle materials.
Stirring media create high shear, making it suitable for slurry dispersion and wet ultrafine grinding.
03 · FOUR-STEP SELECTION
First define the experimental objective, then check sample parameters, equipment motion and grinding accessories rather than selecting only by speed or capacity.
04 · MATERIAL EXAMPLES
Final selection should still be confirmed through trial grinding based on hardness, toughness, moisture content, contamination limits and target fineness.
05 · APPLICATIONS

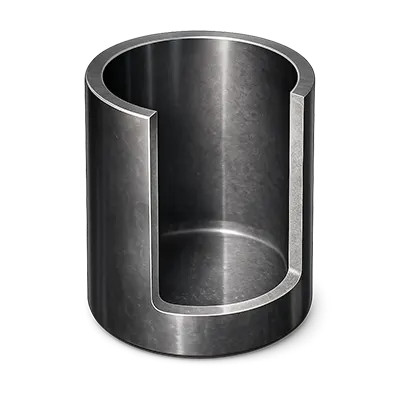

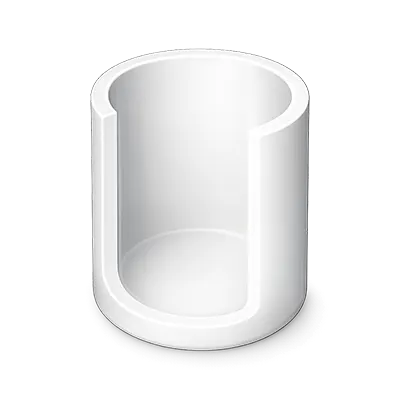

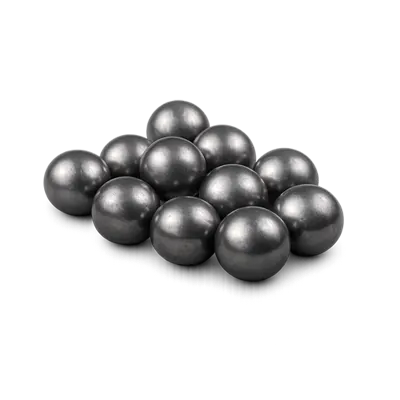

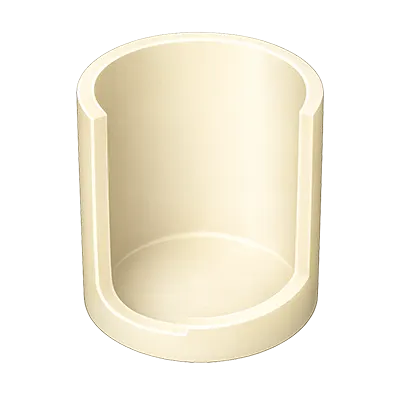

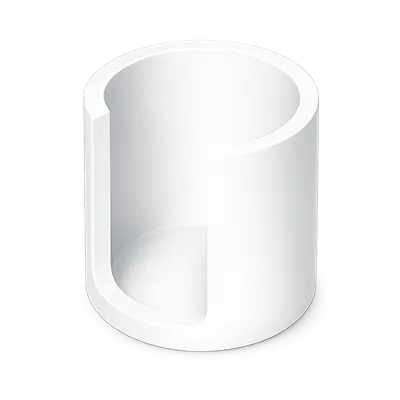

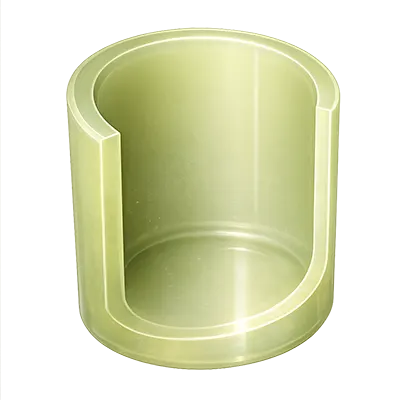

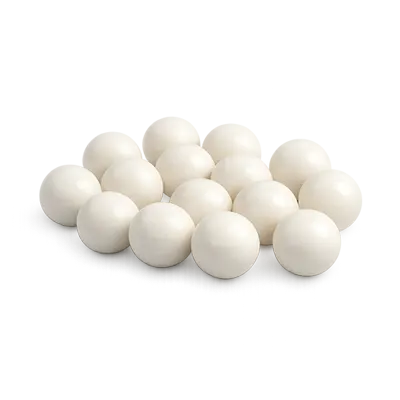

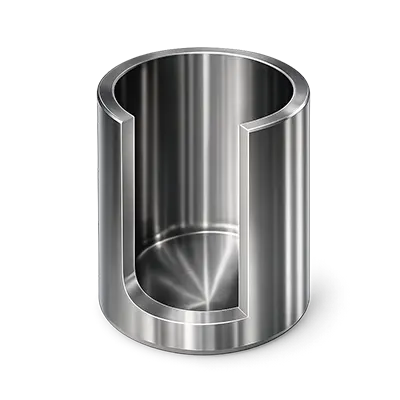

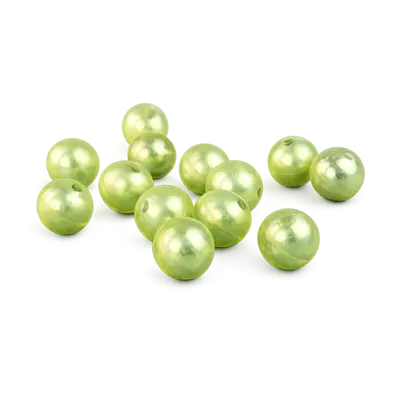

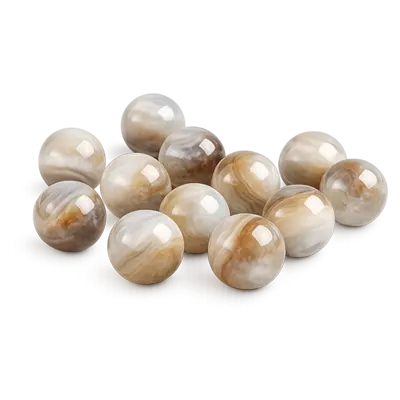

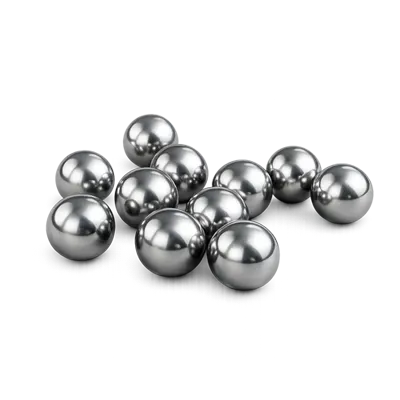

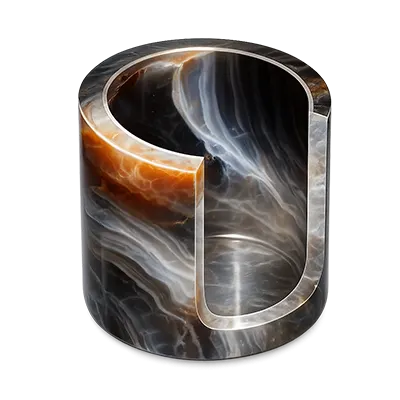

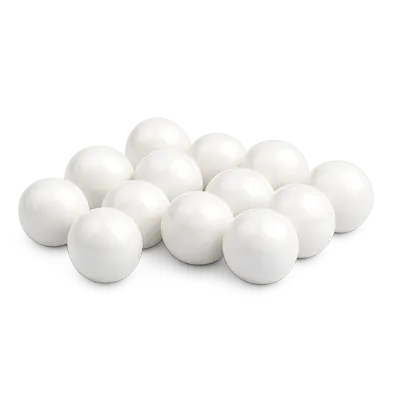

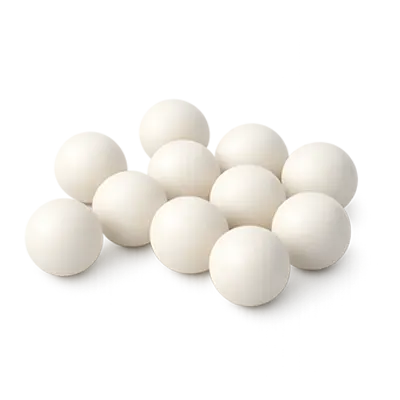

06 · JARS & MEDIA
The jar and grinding media determine both grinding efficiency and the source of wear. For contamination-sensitive samples, prioritize matching materials or verified compatible combinations.
07 · PARAMETER COMPARISON
The following are typical configuration ranges. Confirm actual parameters against the specific model, jar material and sample conditions.
| Equipment Type | Applicable Particle-Size Range | Recommended Sample Weight | Supported Grinding Conditions | Number of Samples | Distinctive Features |
|---|---|---|---|---|---|
| Laboratory Planetary Ball Mill | Coarse Powder - Fine Powder (45μm - 10μm) |
Up to 50 g - up to 500 g | Dry grinding, wet grinding, low temperature, high temperature, protective atmosphere | 1 - 4 samples | High speed (typically 200-800 rpm), short grinding time, suitable for high-energy impact, compatible with jars of multiple materials (stainless steel, nylon, ceramic, etc.) |
| Laboratory Roller Ball Mill | Coarse Powder - Fine Powder (45μm - 45μm) |
Up to 500 g - up to 50 kg | Dry grinding, wet grinding | 1 - 2 samples | Lower speed (typically 30-300 rpm), stable operation, low noise, suitable for long-duration grinding and mixing, with large jar capacity (typically 1-20 L) |
| Laboratory Stirred Ball Mill | Fine Powder - Micron Powder (10μm - 10μm) |
Up to 500 g - up to 5 kg | Primarily wet grinding (dry grinding also possible) | 1 sample | Continuous feed and discharge, suitable for slurry systems, high grinding efficiency, easy cleaning, suitable for pilot-scale and continuous experiments |
| Laboratory Vibration Ball Mill | Micron Powder - Submicron Powder - Nano-scale (1 μm - below 0.1 μm) |
Up to 50 g - up to 5 kg | Dry grinding, wet grinding, low temperature, protective atmosphere | 4 - 8 or more samples | High-frequency vibration grinding, concentrated energy, uniform fineness, good dispersion, multi-jar simultaneous experiments, and good sealing to prevent contamination |
We offer complimentary sample grinding to help you evaluate grinding performance and confirm the appropriate equipment selection.
Alumina
Lithium Carbonate
Ore
Aluminum Fluoride
Ceramic Raw Materials
Lithium-Ion Battery Materials
Graphite
Cement Clinker
Iron Ore Particles
Feldspar Particles
Quartz Sand
Silicon Carbide Particles
