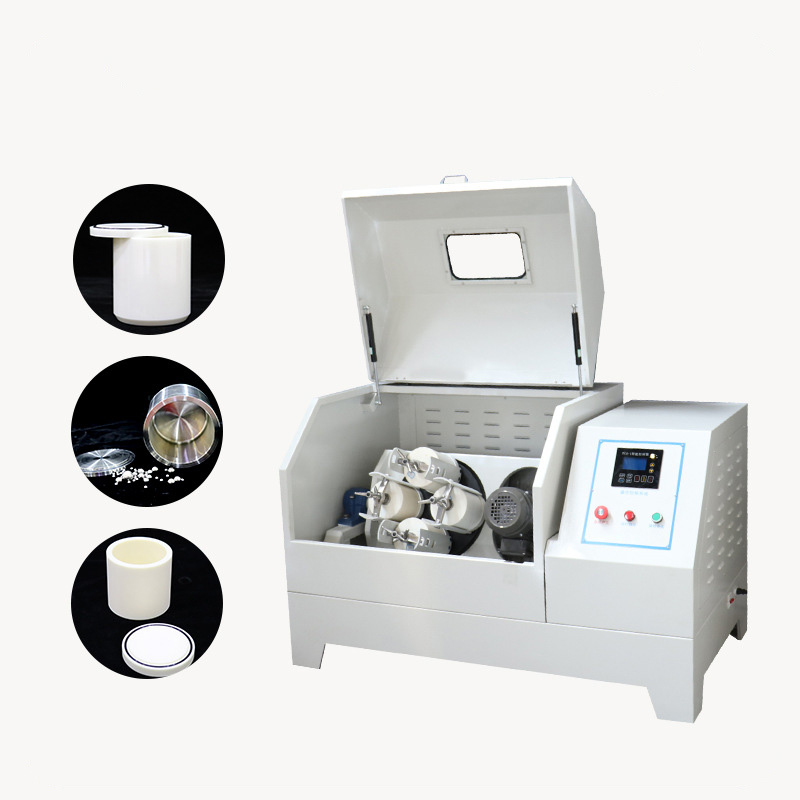

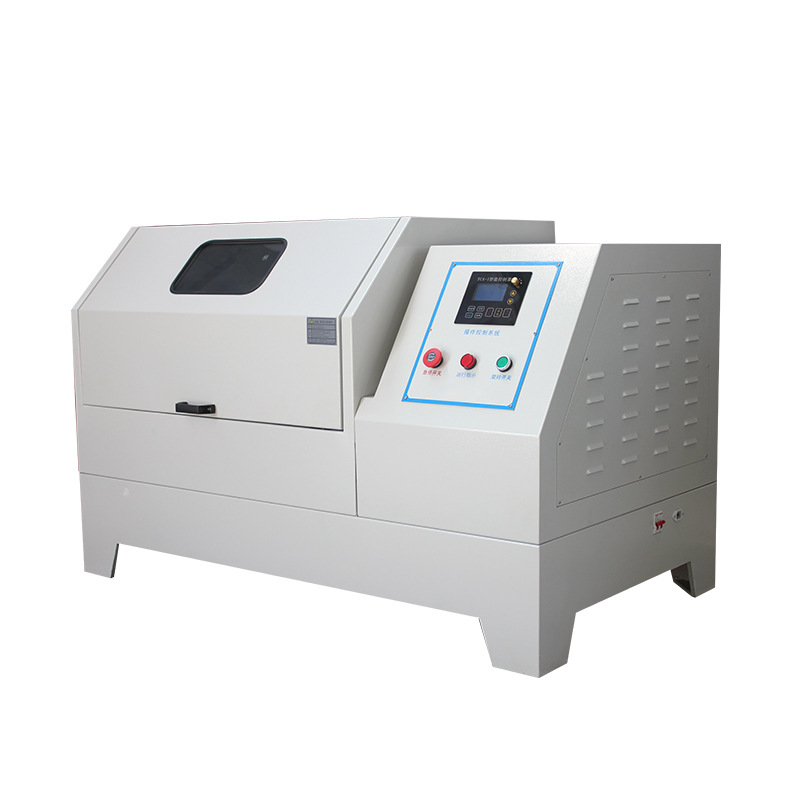

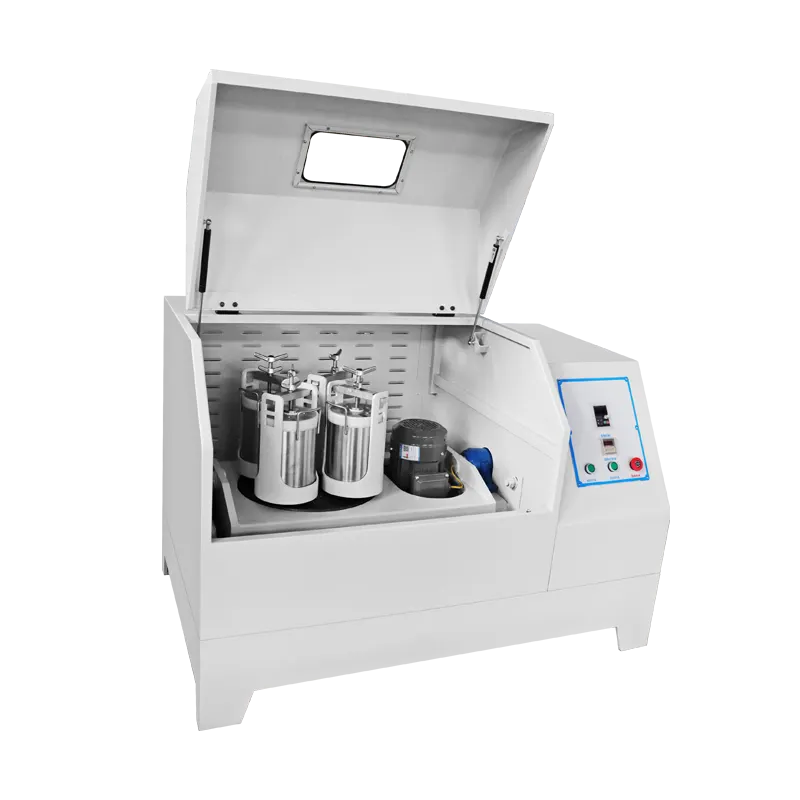

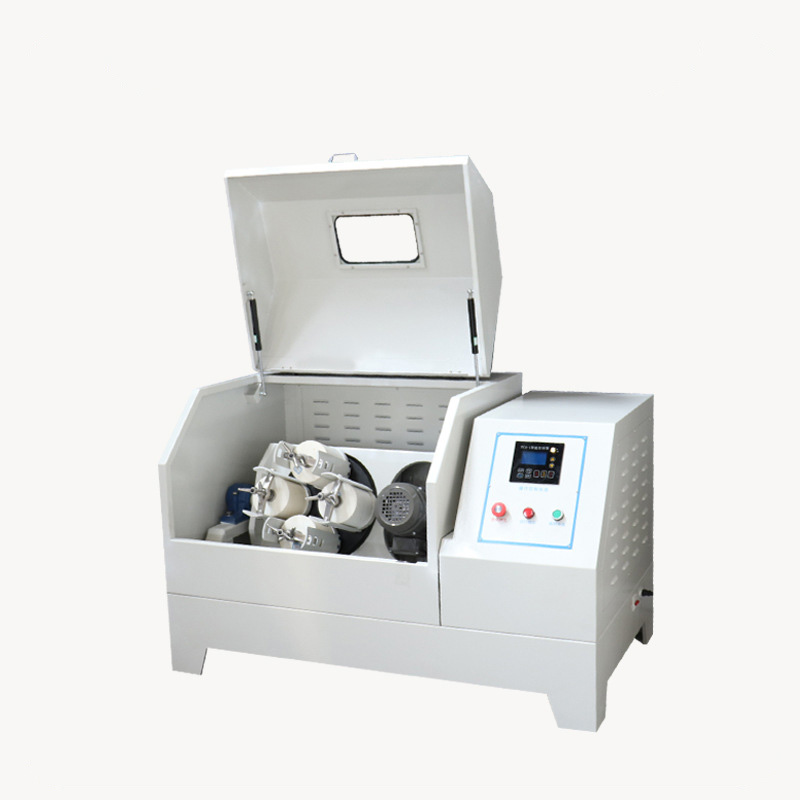

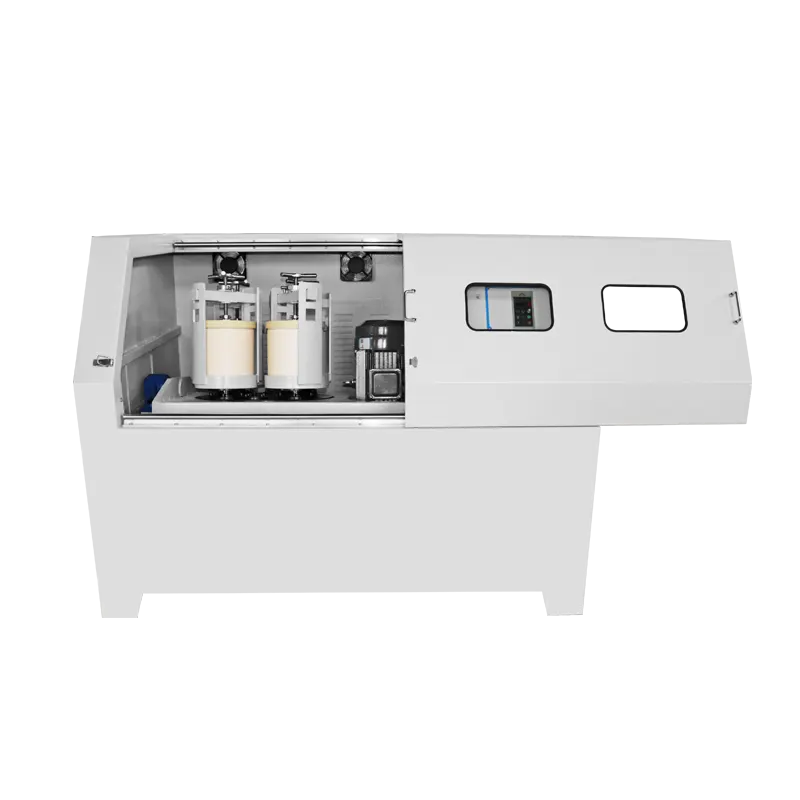

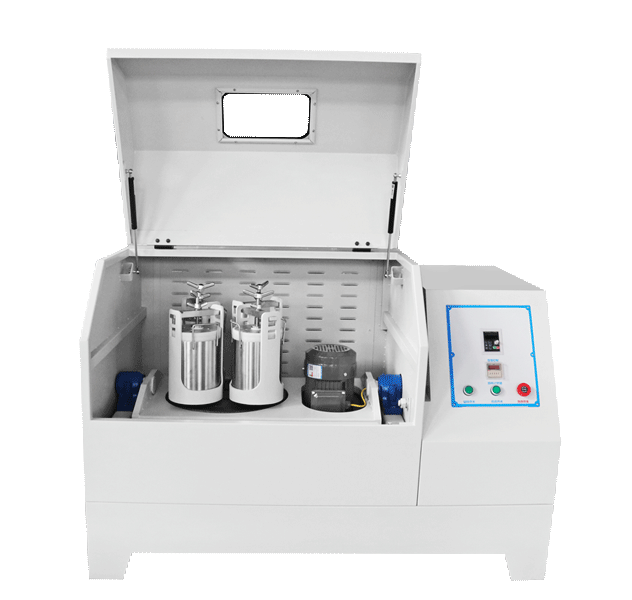

Laboratory Full-Directional Planetary Ball Mill

Product Introduction

The 360-degree rotating planetary ball mill is based on the vertical planetary ball mill and adds a planetary disk flip function. While the planetary disk and the ball mill tank are performing planetary motion, they can also perform planetary motion within a three-dimensional space. The 360° tipping bucket flip realizes multi-dimensional and multi-directional movement of the ball mill tank, improving the degree of disordered movement of the grinding balls and materials. The entire material is ground 360 degrees in the grinding tank, making the ground materials more even and fine, and can solve the problem of some materials sinking to the bottom and sticking to the pot.

The company also launched a microcomputer touch screen PLC all-in-one machine. Customers can choose a control panel according to their own needs. 。

360-degree rotating planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalysts, phosphors, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, disc ceramic capacitors, MLCC , thermistor ( PTC 、 NTC ）、 ZnO Varistor, dielectric ceramic, alumina ceramic, zirconia ceramic, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn The production field of ferrite and other products.

Technical parameters

Working Principle

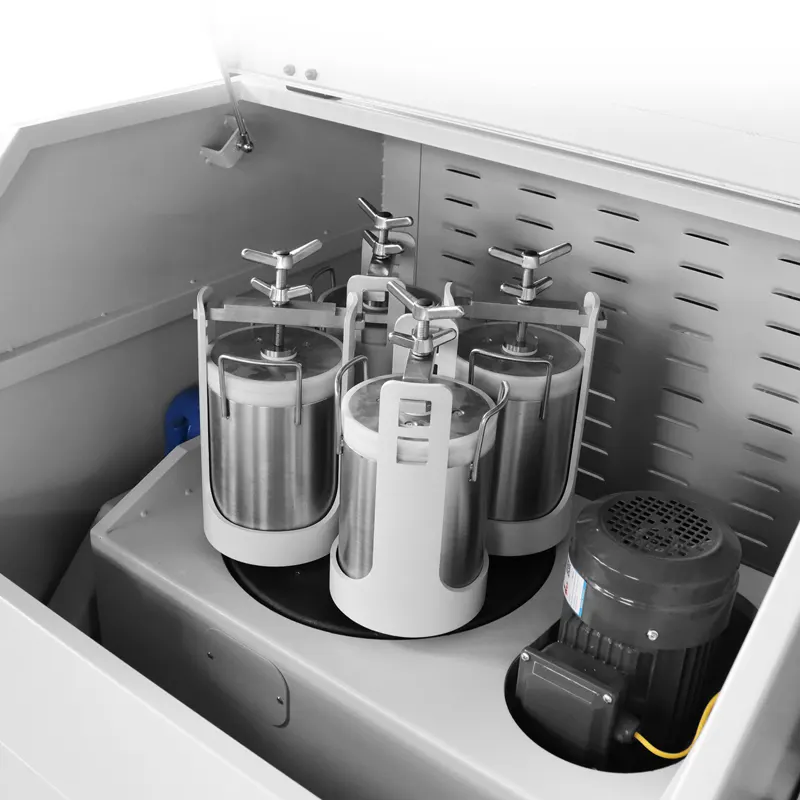

The 360-degree rotating planetary ball mill is based on the vertical planetary ball mill and adds a planetary disk flip function. While the planetary disk and the ball mill tank are performing planetary motion, they can also perform planetary motion within a three-dimensional space. The 360° tipping bucket flip realizes multi-dimensional and multi-directional movement of the ball mill tank, improving the degree of disordered movement of the grinding balls and materials. The entire material is ground 360 degrees in the grinding tank, making the ground materials more even and fine, and can solve the problem of some materials sinking to the bottom and sticking to the pot.

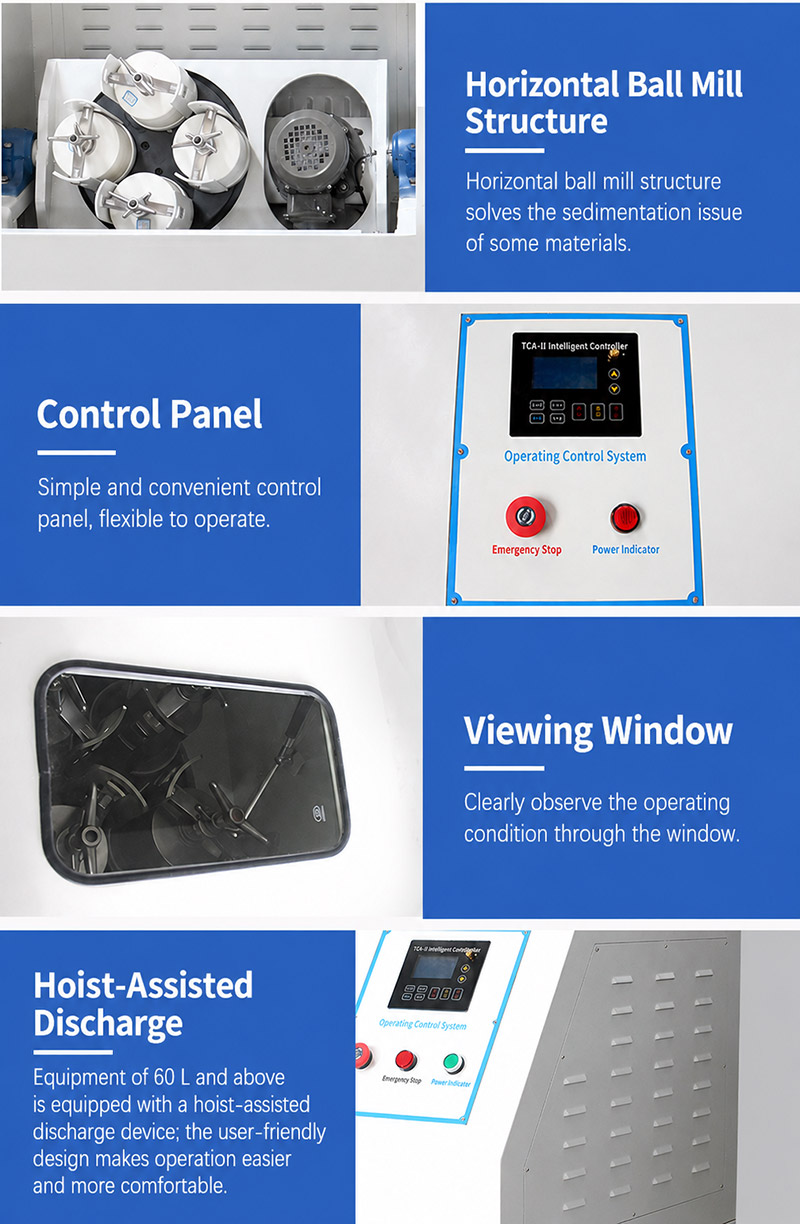

Product Features

The equipment shell has professional appearance design and industrial shape, lean manufacturing, exquisiteness and precision; The machined parts adopt CNC processing technology, and the transmission gears are made of special materials and precision gears to ensure smooth, safe and low noise when the equipment runs at high speed. ; The flipping motor has a brake lock function, which can realize turning and stopping at any angle. It is safe and reliable. It adopts a microcomputer touch screen, which is easy to operate. The interface is simple and intuitive. It can realize alternating control of forward and reverse rotation, and has timing and power-off memory functions. 。

Accessories & Customization
