Product Introduction

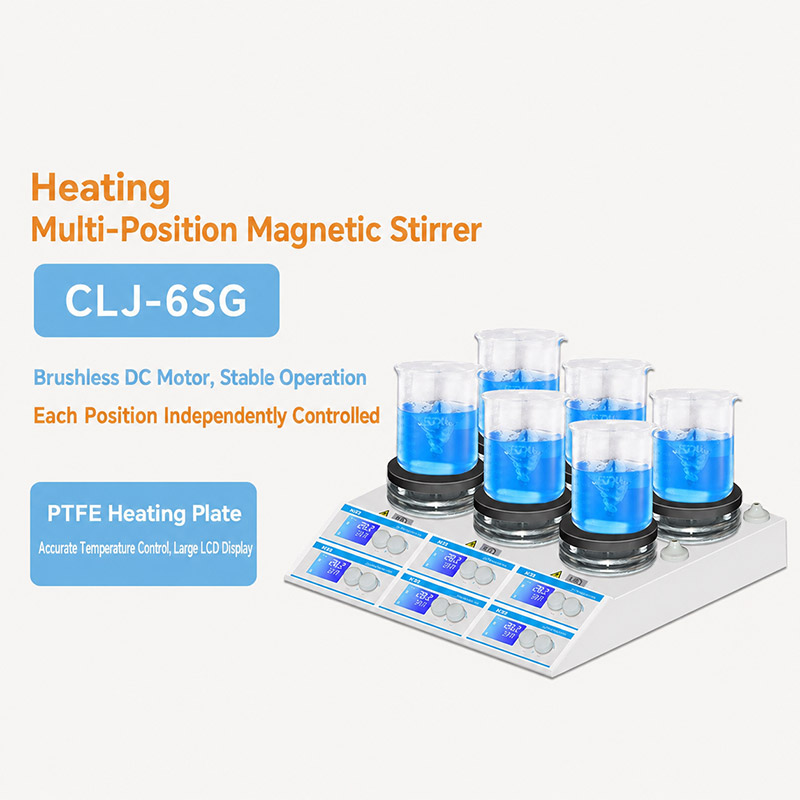

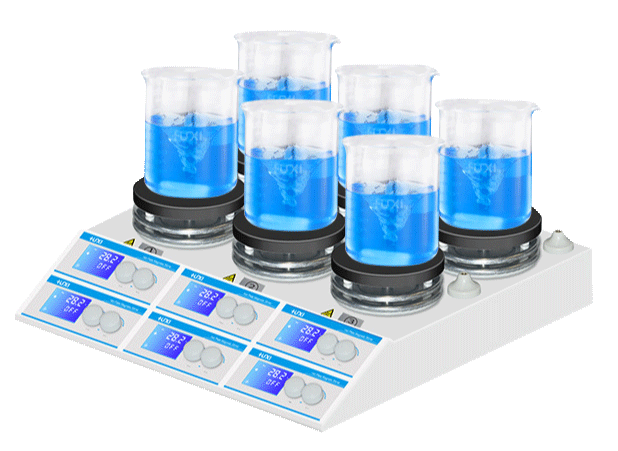

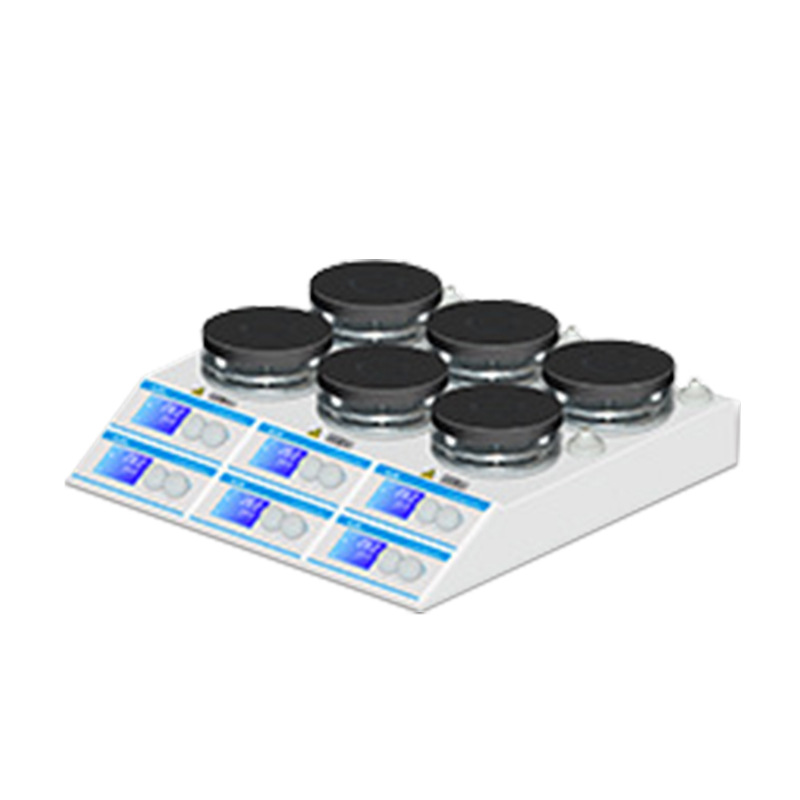

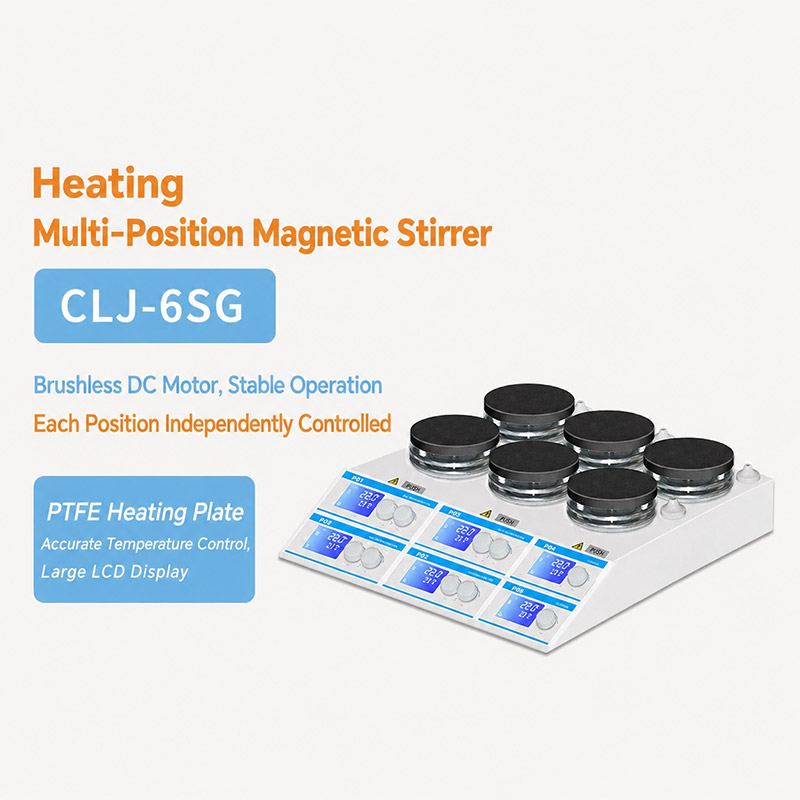

The electromagnetic induction multi-station mixer has a wide range of product models to meet different experimental needs.; It is often used to stir or simultaneously heat and stir low-viscosity liquids or solid-liquid mixtures. It is specially developed and designed for universities, scientific research, environmental protection, chemical industry, biology, pharmaceutical and other industries.
Technical parameters
| model | CLJ-4G | CLJ-4SG | CLJ-6SG |
| power supply | AC220 50/60HZ | AC220 50/60HZ | AC220 50/60HZ |
| NoiseDB | 27 | 27 | 27 |
| Mixing station | 4 | 4 | 6 |
| Display mode | LCD | LCD | LCD |
| Display function | temperature, speed | temperature, speed | temperature, speed |
| control mode | Independent operation | Independent operation | Independent operation |

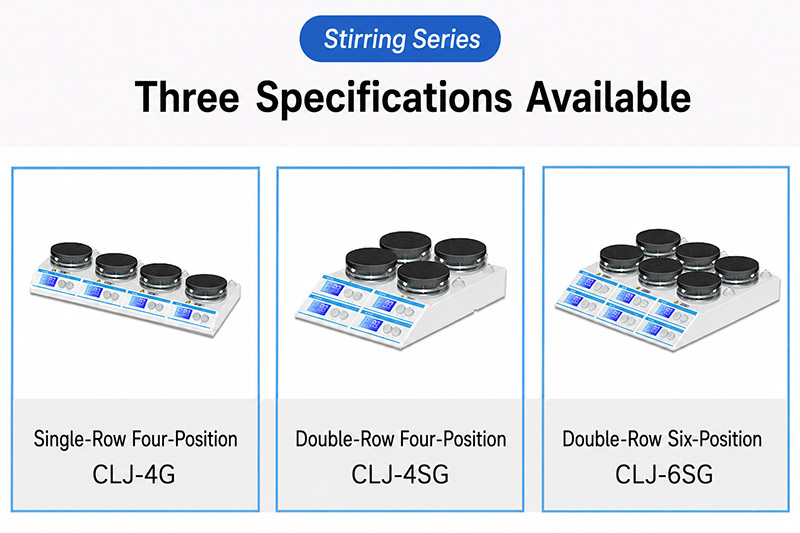

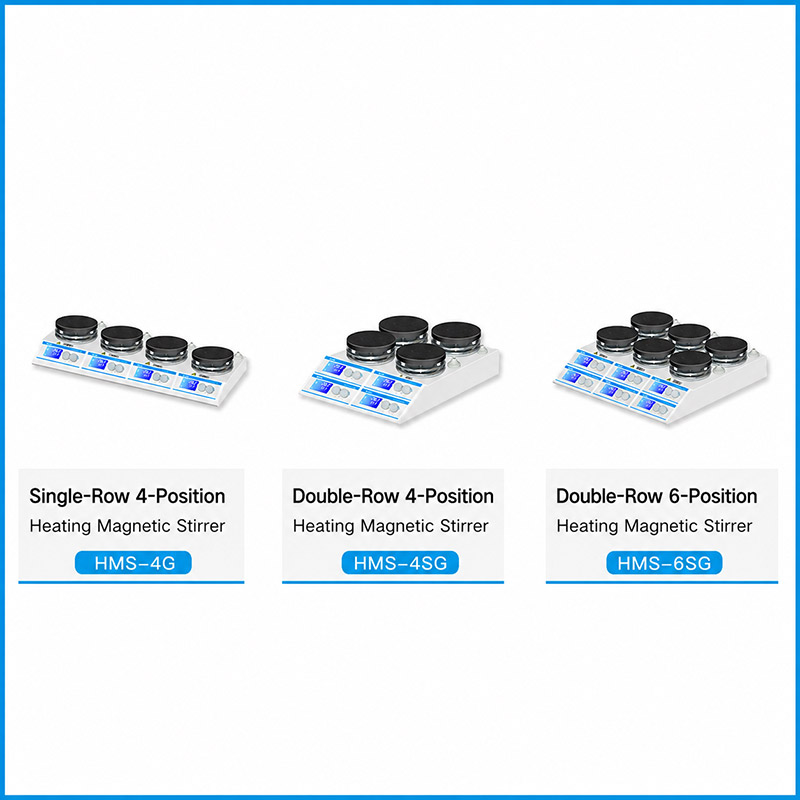

| Arrangement | Single row 1*4 | Double row 2*2 | Double row 2*3 |
| Speed rangeRMM/MIN | 50~2000 | 50~2000 | 50~2000 |
| Temperature control range ℃ | RT+5~160 | RT+5~160 | RT+5~160 |
| Temperature control accuracy ℃ | ±1 | ±1 | ±1 |
| Heating plate temperature ℃ | 320 | 320 | 320 |
| Work station spacing MM | 31~176 | 31~176 | 31~176 |
| Standard stirrer MM | (7*27+9*25+8*45)*4 | (7*27+9*25+8*45)*4 | (7*27+9*25+8*45)*4 |
| Unit mixing volume L | 10*4 | 10*4 | 10*4 |
| Unit motor power W | 10 | 10 | 10 |
| Unit heating power W | 350 | 350 | 350 |
| allowable ambient temperature ℃ | 5~40 | 5~40 | 5~40 |
| Allowable relative humidity % | 80 | 80 | 80 |
| Instrument sizeMM | 713*290*110 | 528*363*121 | 539*530*131 |
| Packing sizeMM | 820*395*220 | 629*463*221 | 639*629*221 |
| Net weightKG | 10 | 10 | 15 |
| Gross weightKG | 12.8 | 12.8 | 19.2 |

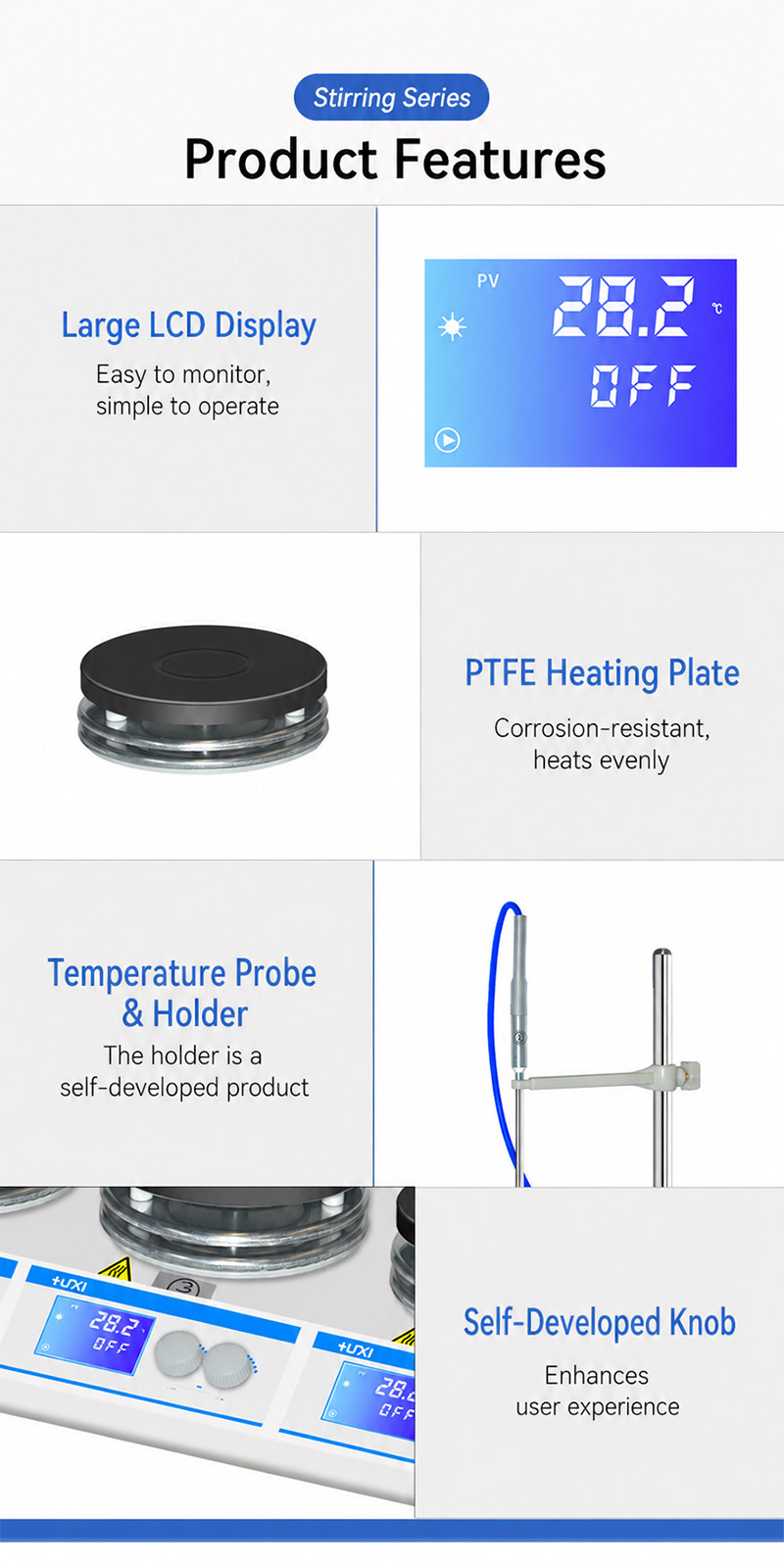

Product Features
● 100~240V wide voltage design, wide application range;
● With time setting function, the timing range is adjustable from 1 to 5999 minutes. The high-quality anti-slip foot pads are close to the experimental table without gaps and operate smoothly.;
● IP64 protection level, providing all-round and angle splash and waterproof protection;
● Each station operates 100% synchronously to ensure the consistency of the sample operating environment. Double-knob design, adjustable time and speed, good starting performance, and wide speed adjustment range;
● Made of 316 stainless steel, it is strong, corrosion-resistant and has excellent high-temperature resistance.;
● Brushless DC motor drive, low noise, low maintenance, maintenance-free and long service life;
● The LCD screen displays the speed and time in real time, the data is intuitive and the reading is more accurate.;
● The standard stirrer has strong magnetic force, remarkable stirring effect, and large stirring capacity in a single station.;
● Using electromagnetic induction drive technology, the speed can be set from 50 to 2000rpm, and it can run smoothly even at low speeds.
