Product Introduction
The dispersing machine is mainly used to crush, disperse, emulsify and homogenize slurry liquid raw materials of different viscosities. Through the high-speed operation of the dispersing disc, strong shear impact and friction occur between the material and the dispersing disc, achieving the functions of rapid emulsification, dissolution, uniform mixing and dispersion.
The disperser absorbs very little air when stirring and dispersing, and has excellent mixing and smoothing effects. Using medium or high speed stirring and dispersion can quickly dissolve the material and make the particles smaller.
The disperser is composed of five parts: hydraulic system, main drive, mixing system, guide mechanism, and electric control box. Each part has a compact and reasonable structure.

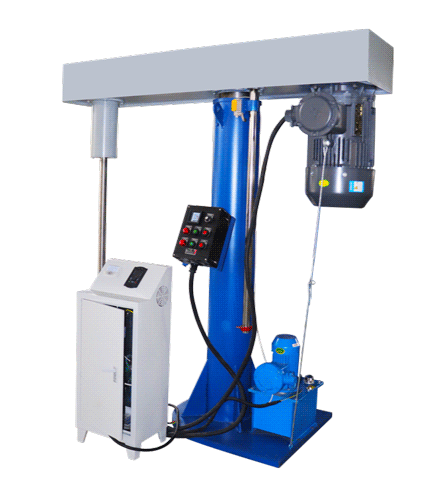

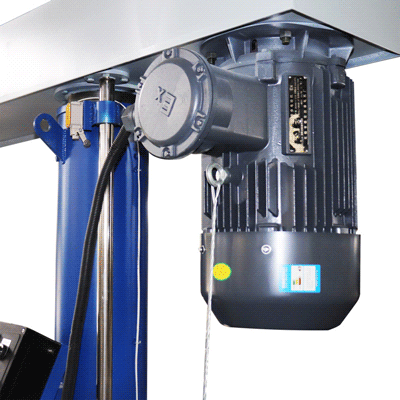

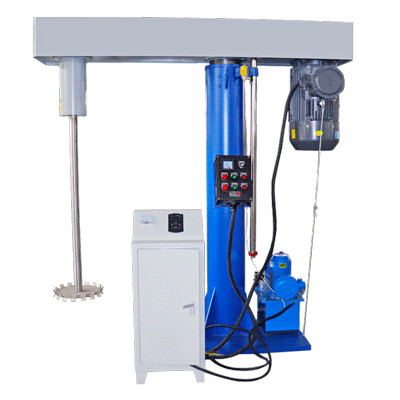

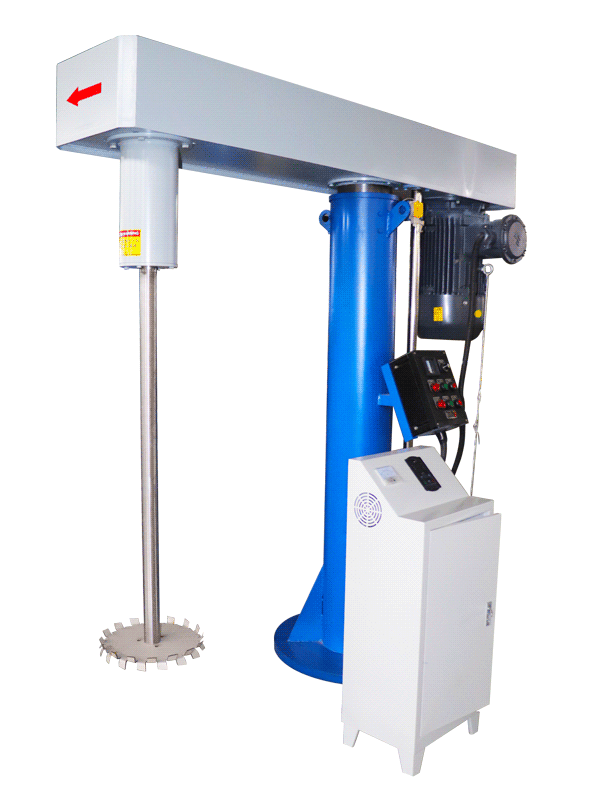

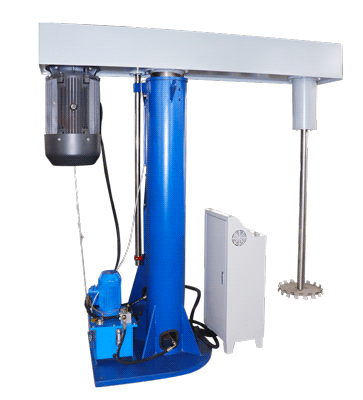

The single-axis hydraulic disperser adopts variable frequency speed regulation, hydraulic or pneumatic lifting, easy and convenient operation, and is equipped with explosion-proof configuration, safe and reliable.; It is the preferred equipment for stirring, dissolving and dispersing liquid materials in chemical industries such as coatings, dyes, pigments, inks, papermaking, and adhesives.
The dispersing machine is an efficient equipment used for stirring, dispersing, and dissolving coatings and solids. It is widely used in chemical products such as coatings, inks, pigments, and adhesives.
Technical parameters
| Model specifications | Host power (KW) | Maximum speed (r/min) | Dispersion disc diameter (mm) | Lifting stroke (mm) |
|---|---|---|---|---|
| FS-5.5 | 5.5 | 1400/2800 | 100-200 | 800 |
| FS-7.5 | 7.5 | 1400/2800 | 100-200 | 800 |
| FS-11 | 11 | 1400/2800 | 100-200 | 800 |
| FS-15 | 15 | 1400/2800 | 100-200 | 800 |
| FS-18.5 | 18.5 | 1400/2800 | 100-200 | 800 |
| FS-22 | 22 | 1400/2800 | 100-200 | 800 |
| FS-37 | 37 | 1400/2800 | 100-200 | 800 |
| FS-45 | 45 | 1400/2800 | 100-200 | 800 |
| FS-55 | 55 | 1400/2800 | 100-200 | 800 |
Working Principle
Through the high-speed operation of the dispersing disc, the dispersing machine causes strong shear impact and friction between the material and the dispersing disc, achieving the functions of rapid emulsification, dissolution, uniform mixing, and dispersion.
