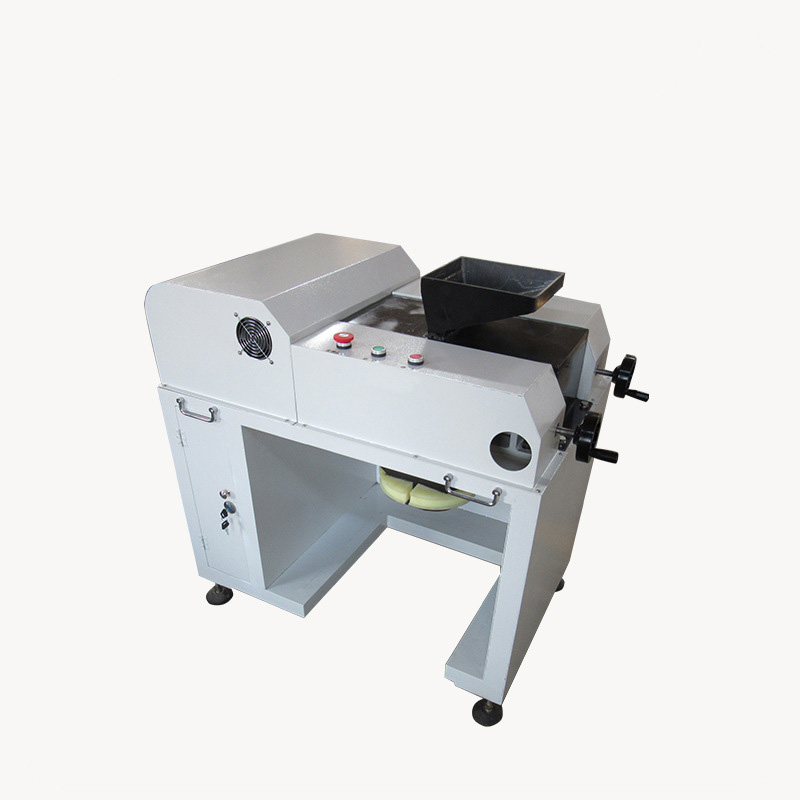

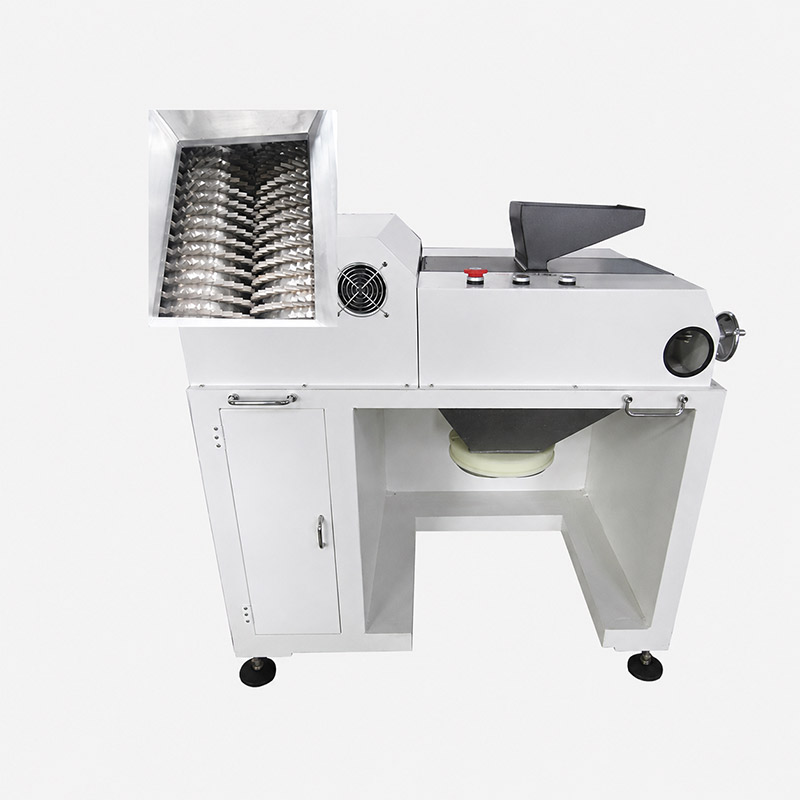

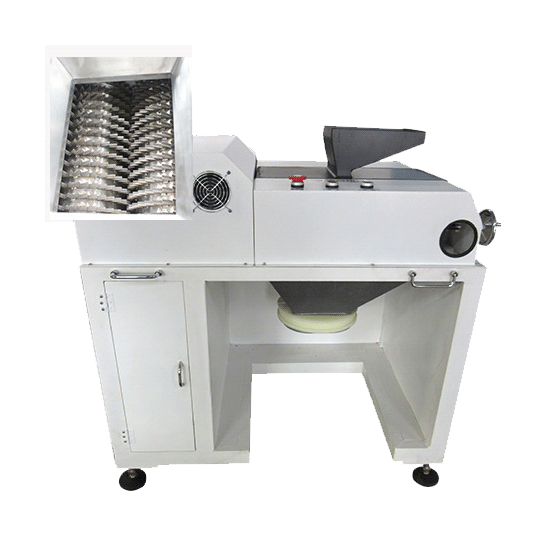

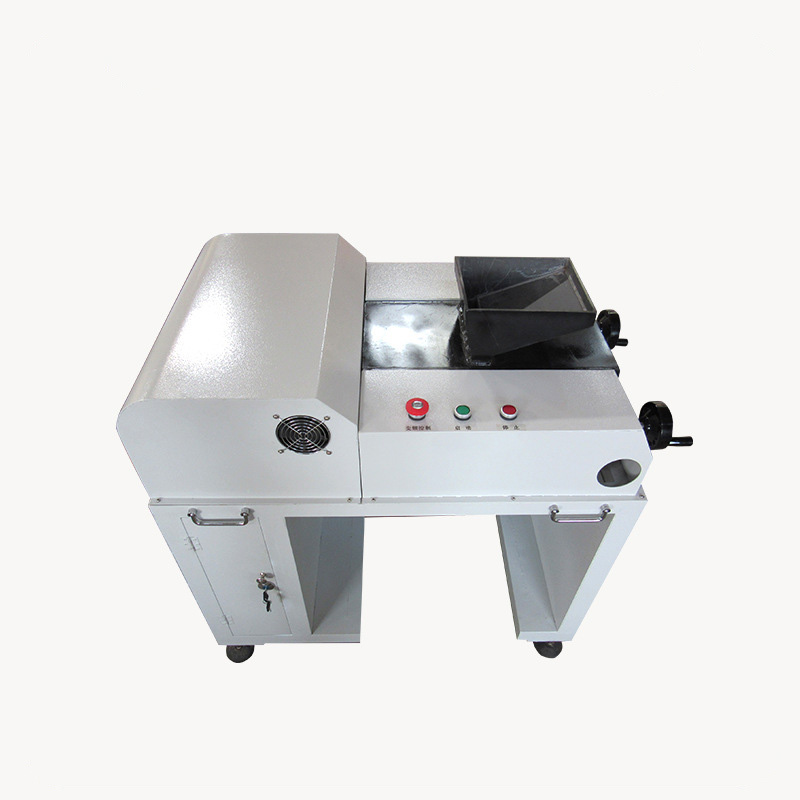

Product Introduction
The tooth roller crusher is a new product designed and developed by ourselves based on the structural principles of the American Ganglac crusher.
The tooth roller crusher is composed of transmission device, frame part, crushing roller, mechanical spring device, linkage mechanism, etc. Tooth roller crusher is divided into two series: double-tooth roller crusher and four-tooth roller crusher.
Tooth roller crusher is mainly used in coal, metallurgy, mining, chemical industry, building materials and other industries, and is more suitable for crushing raw coal (including gangue) in large coal mines or coal preparation plants.
Technical parameters
| Grinding series | ||
|---|---|---|
| Tooth crusher/parameter introduction | ||
| Gear roller size | Φ300x300mm(5US304) | Φ300x500mm(5US304) |
| Roller speed | 52r/min | 52r/min |
| Feeding particle size | 10mm~50mm (according to material characteristics) Suitable for flaky, soft and crunchy materials | 10mm~80mm (according to material characteristics) Suitable for flaky, soft and crunchy materials |
| Discharge particle size | 0.5mm~5mm | 0.5mm~5mm |
| Production volume | 70-80Kg/H | 600Kg/H |
| Motor power | 1.5KW | 3.0KW |
| Overall dimensions | (660*800*930) reference size | (880*1020*1140) reference size |
| Equipment weight | To be determined | To be determined |
-
Key parameter matching
-
Material properties : Select toothed rollers for high hardness materials (such as granite); Smooth rollers can be selected for low hardness or fine crushing requirements.
-
processing power : Select the roller diameter and roller width according to the production capacity (for example, the processing capacity of 2PG800×600 is 12-45t/h, and the processing capacity of 2PG1500×800 is 50-120t/h).
-
Power configuration : Matching motor power (for example, 2PG1000×700 requires 2×30kW), fully automatic models are recommended for high-capacity scenarios.
-
-
Use and maintenance recommendations
-
uniform feeding : Equipped with a vibrating feeder to avoid uneven wear of the roller surface caused by unbalanced load.
-
Regular maintenance : Check the gear roller wear, bearing lubrication and hydraulic system pressure, and replace worn parts in time.
-
-
Typical model examples
-
Small and medium : 2PG400×250 (processing capacity 2-10t/h, motor 2×5.5kW), suitable for small-scale production lines.
-
Large : 2PG1500×800 (processing capacity 50-120t/h, motor 2×75kW), suitable for mining or large-scale building materials projects.
-
Working Principle

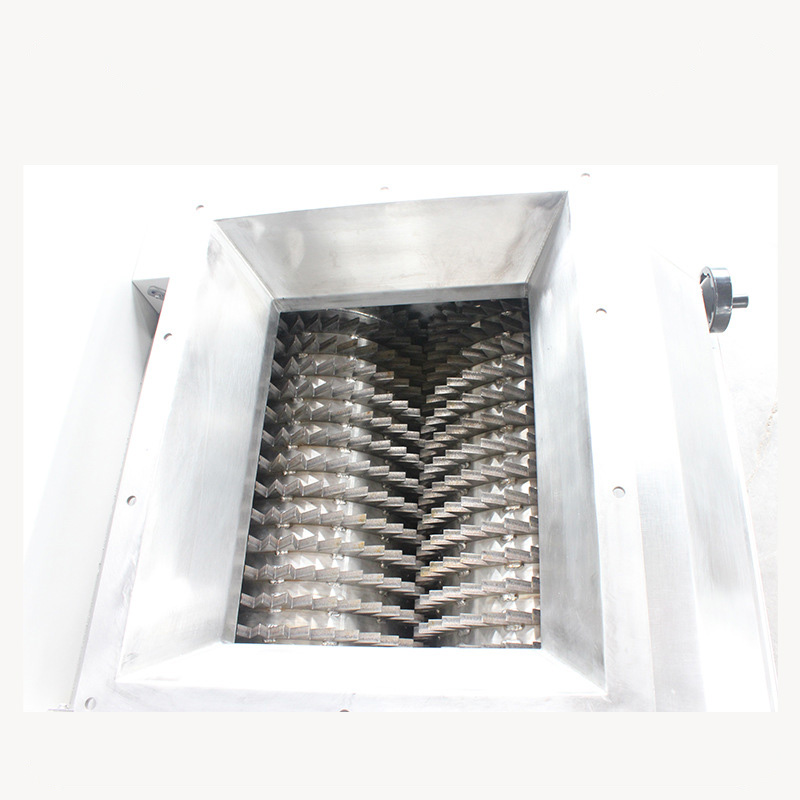

The tooth roller crusher mainly uses special wear-resistant tooth rollers to rotate at high speed to split and crush materials, forming a high productivity mechanism.

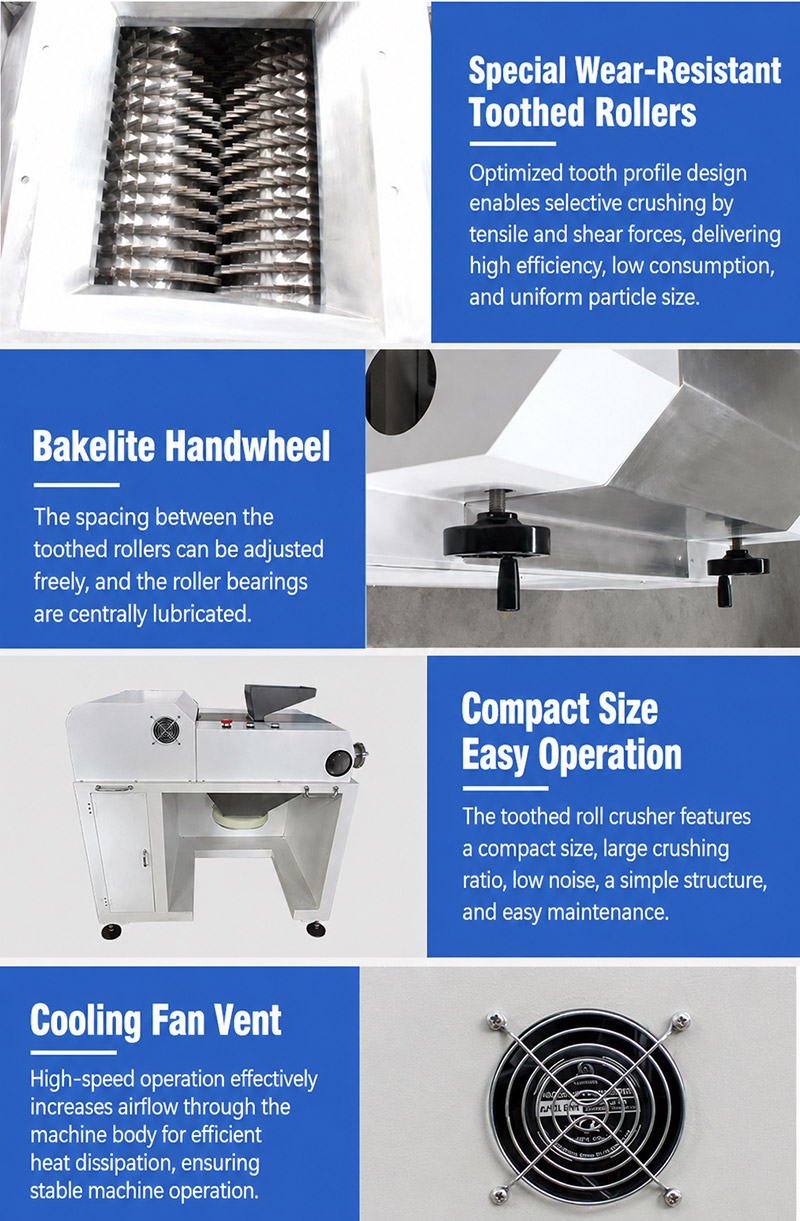

Product Features
1. The tooth roller crusher has large crushing capacity.
2. Prevent power overload, overload protection, safe and reliable.
3. The distance between gear rollers can be adjusted arbitrarily, and the gear roller bearings are lubricated centrally.
4. Optimized tooth shape design, selective crushing by tensile and shear force, high efficiency, low consumption, and uniform granulation.
5. The tooth roller crusher has the advantages of small size, large crushing ratio, low noise, simple structure and easy maintenance.
